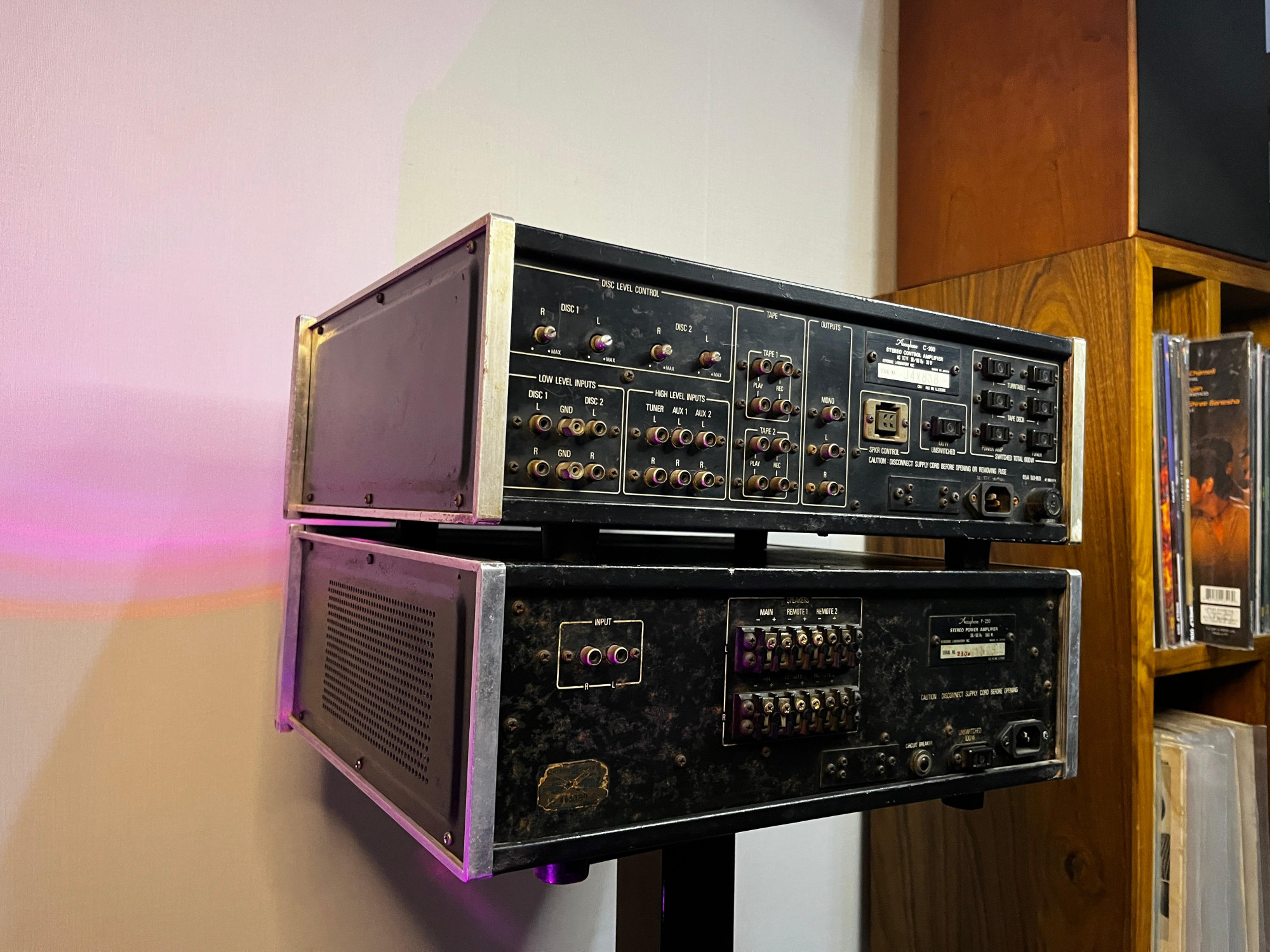

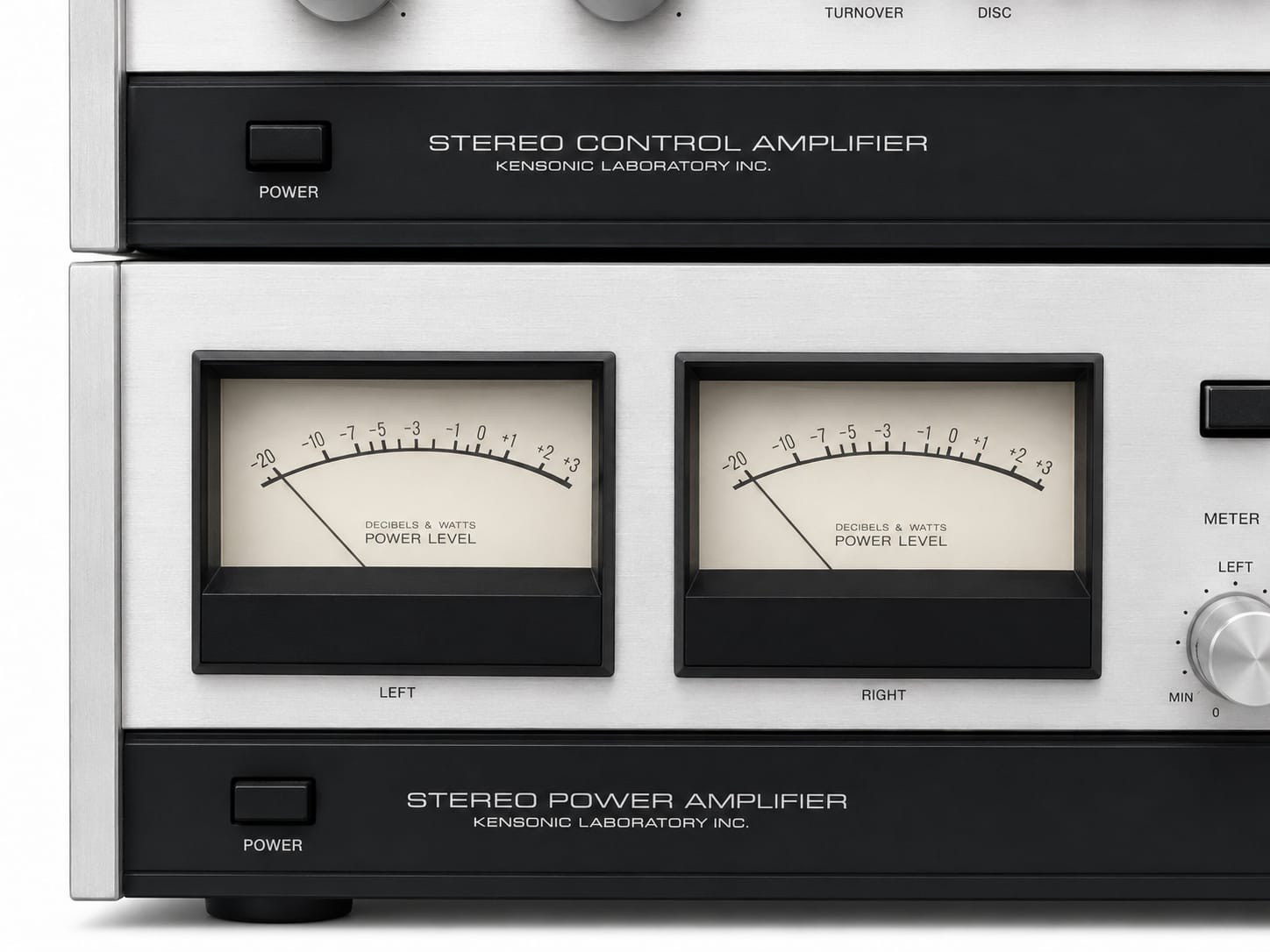

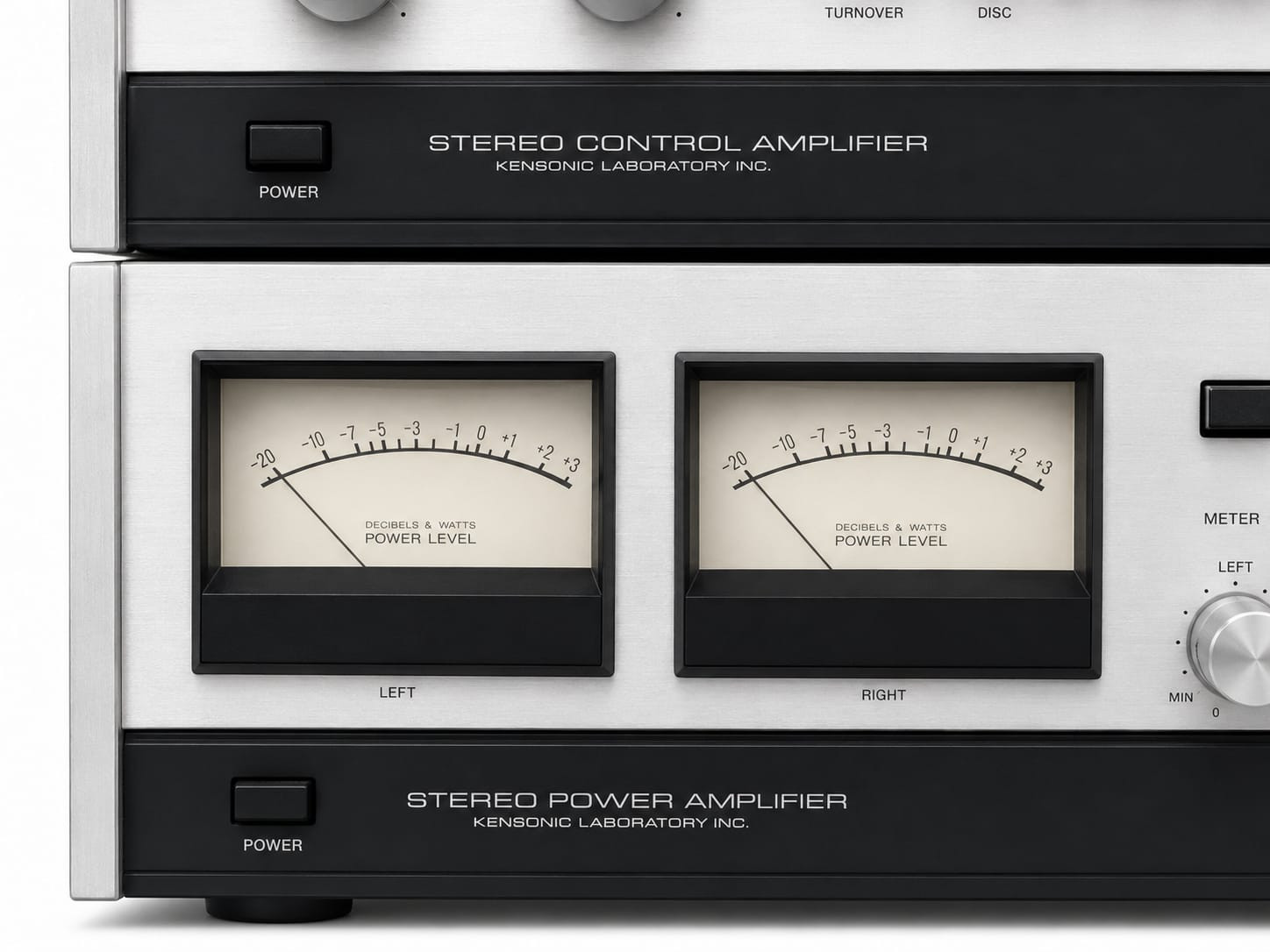

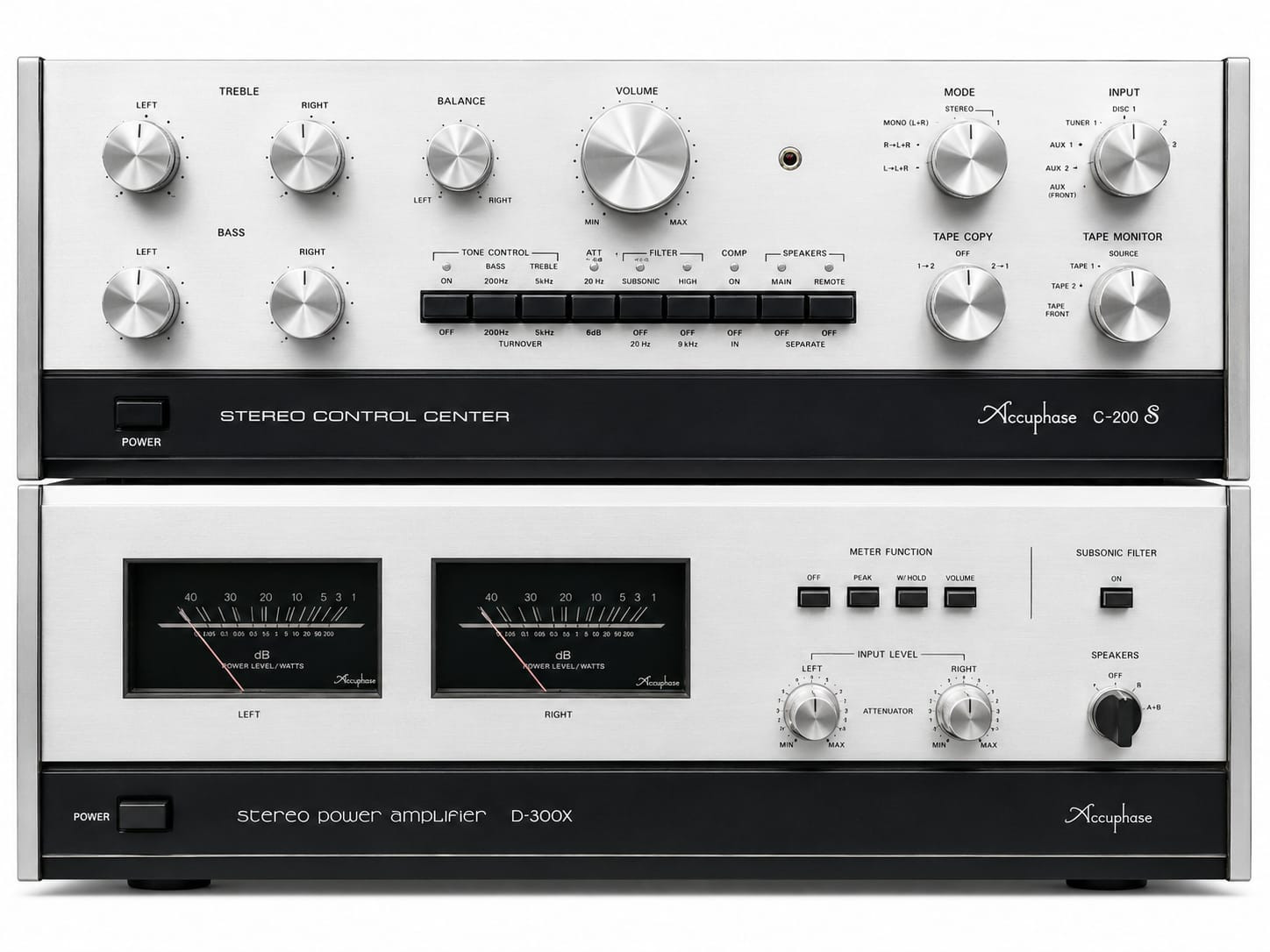

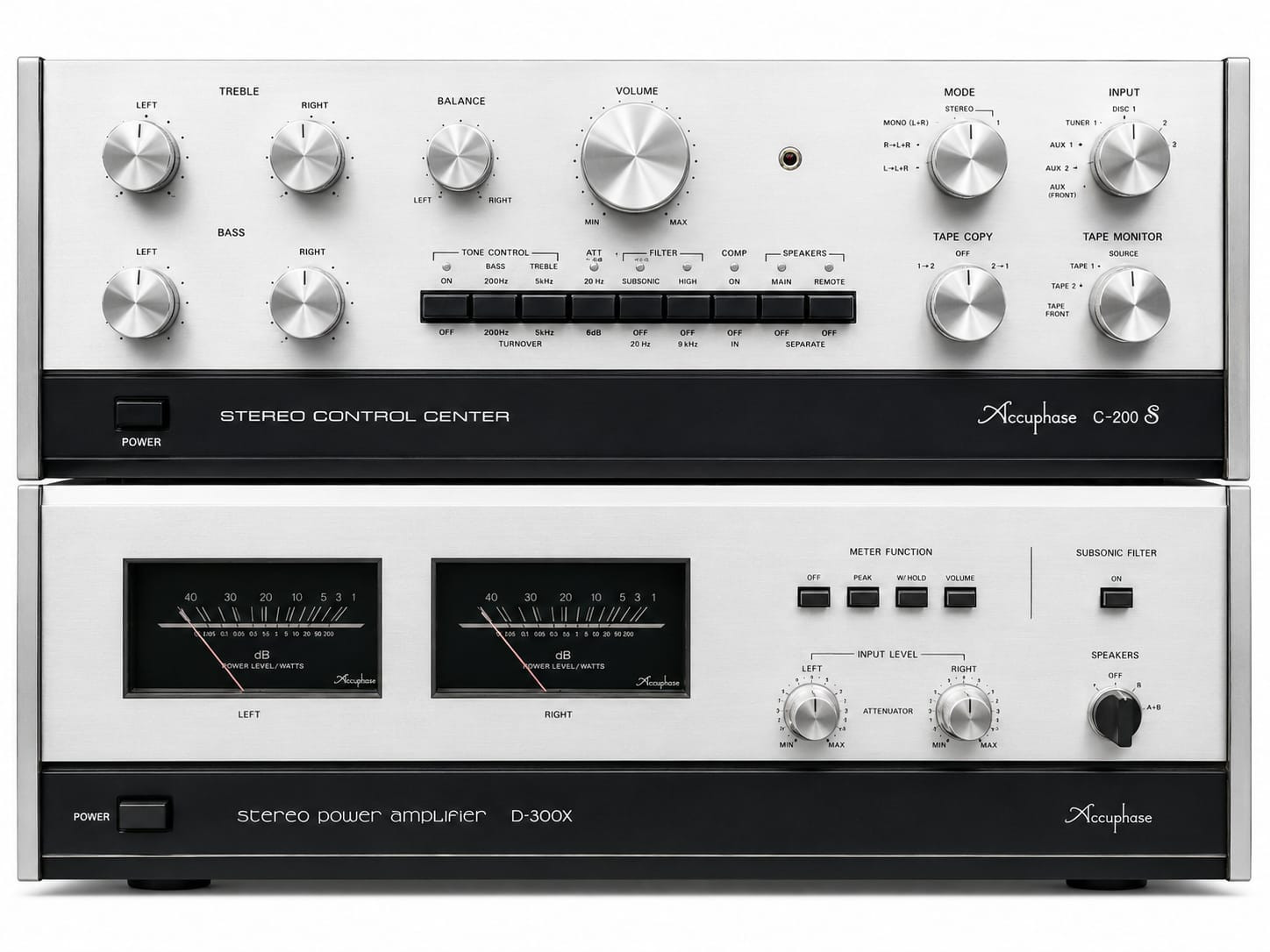

Accuphase C-200 and Accuphase P-250

Description

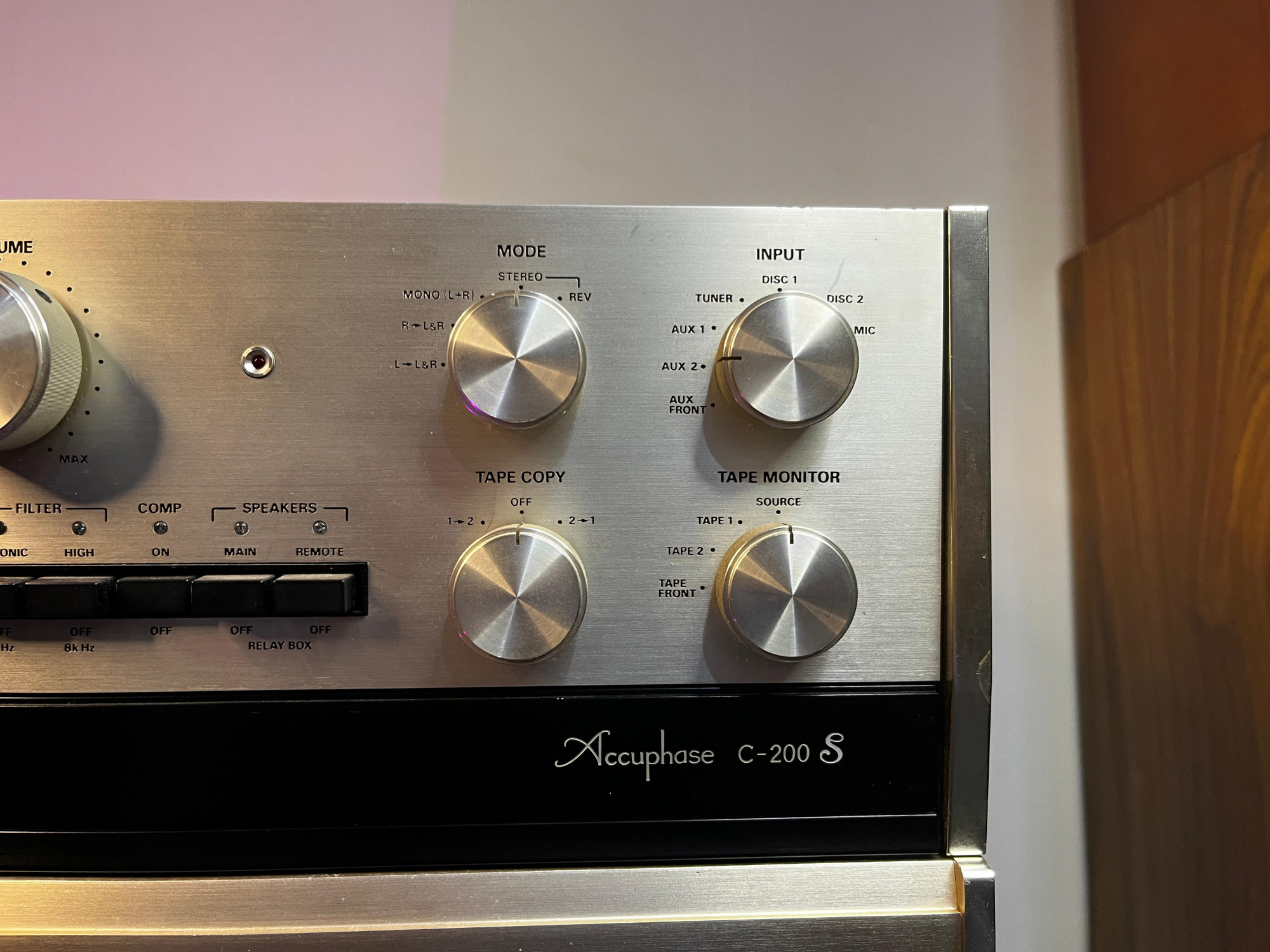

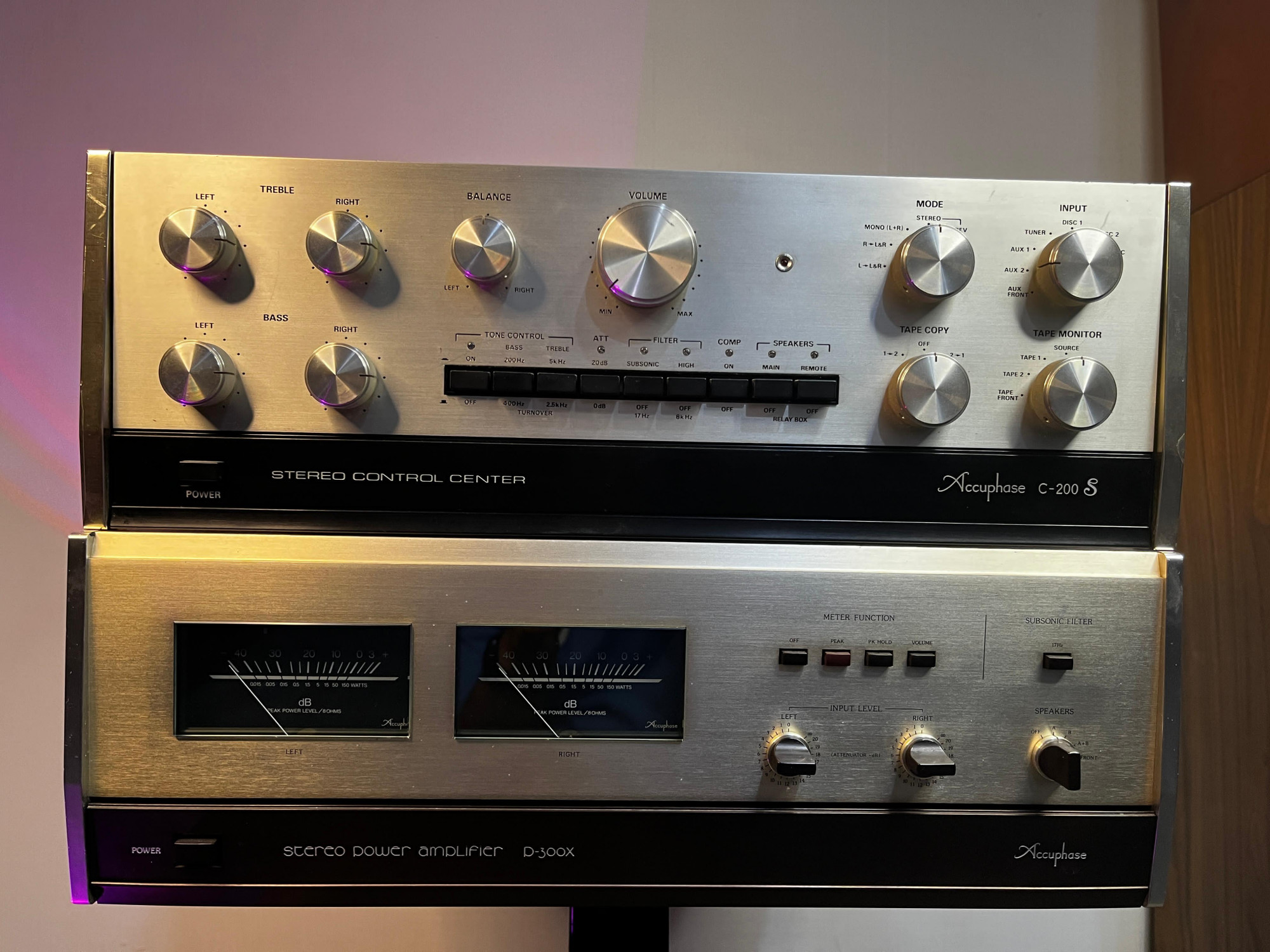

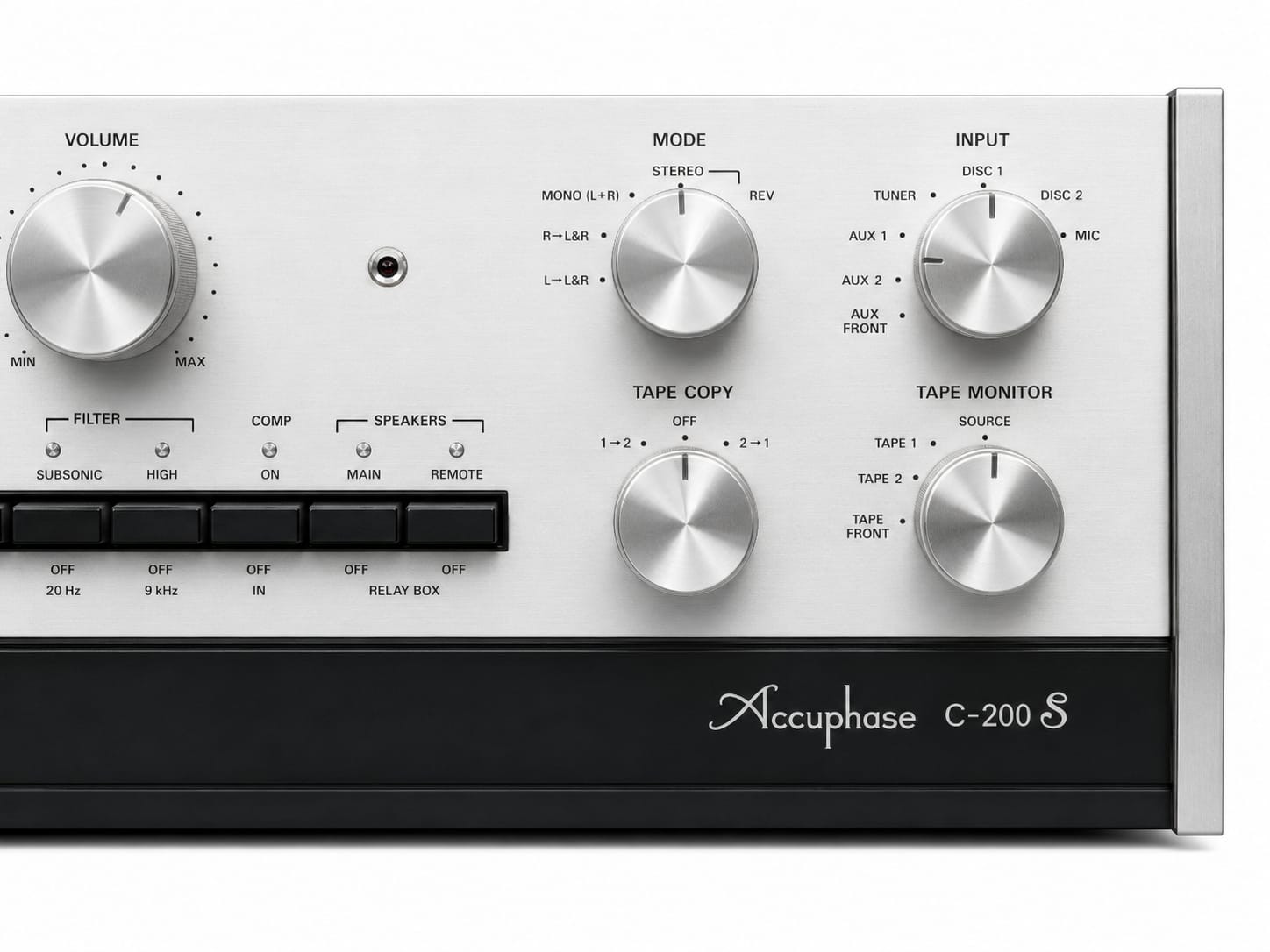

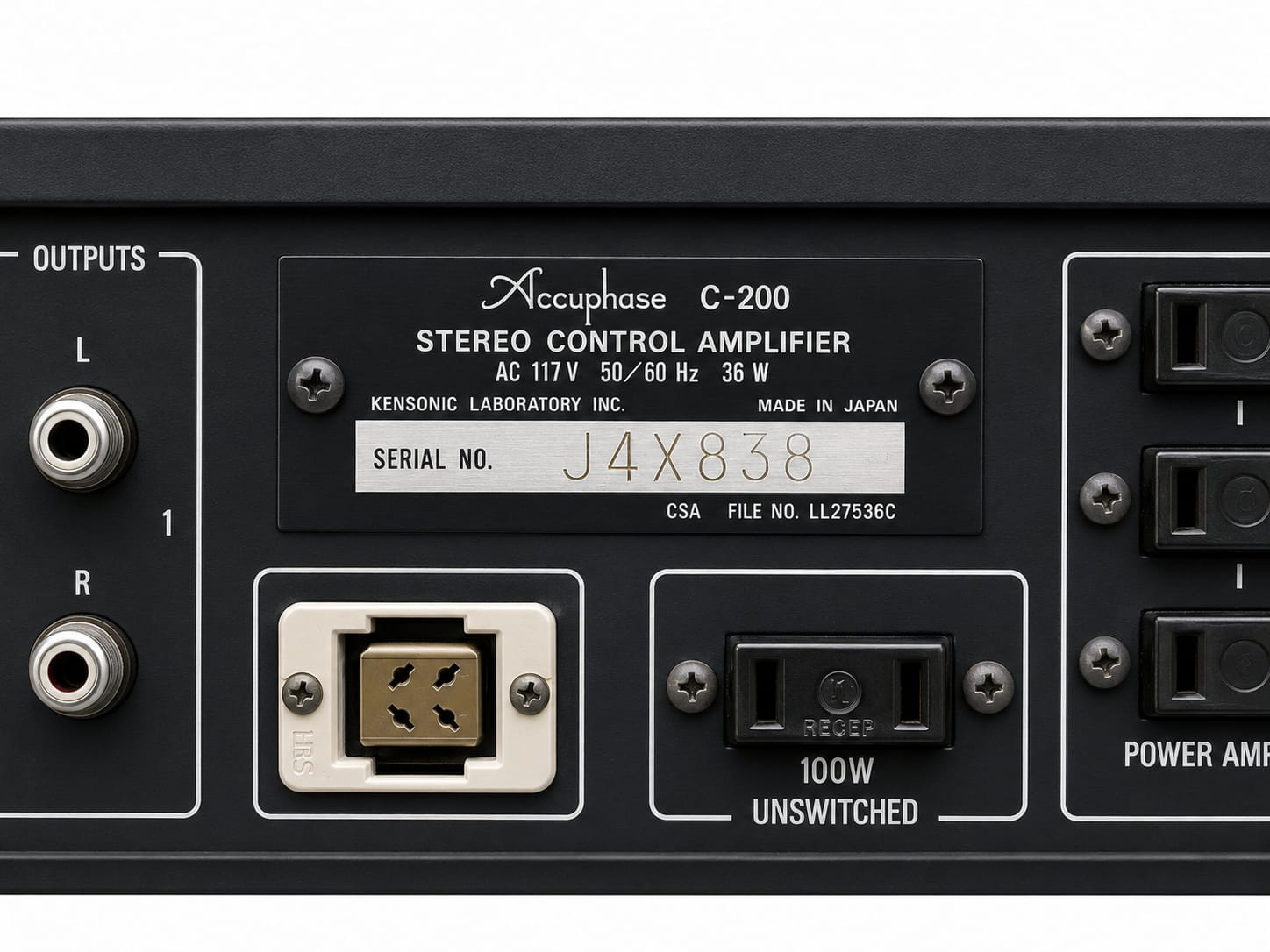

The Accuphase C-200 and Accuphase P-250 are high-fidelity audio components from the renowned Japanese manufacturer, Accuphase. Introduced in the mid-1970s, these units exemplify Accuphase's commitment to exceptional sound quality and engineering excellence. Accuphase C-200 Stereo Control Center The C-200 is a stereo preamplifier designed to offer precise control over audio signals, ensuring minimal distortion and high fidelity. Technical Specifications:

• Frequency Response: 20Hz to 20kHz
• Total Harmonic Distortion (THD): 0.005%
• Gain:
  • MC (Moving Coil): 86dB
  • MM (Moving Magnet): 60dB
• Input Sensitivity:
  • MC: 0.1mV
  • MM: 2.5mV
  • Line Level: 150mV
• Signal-to-Noise Ratio (SNR):
  • MC: 70dB
  • MM: 80dB
  • Line Level: 90dB
• Dimensions (W x H x D): 445 x 160 x 373 mm
• Weight: 13.4 kg

Notable Features:

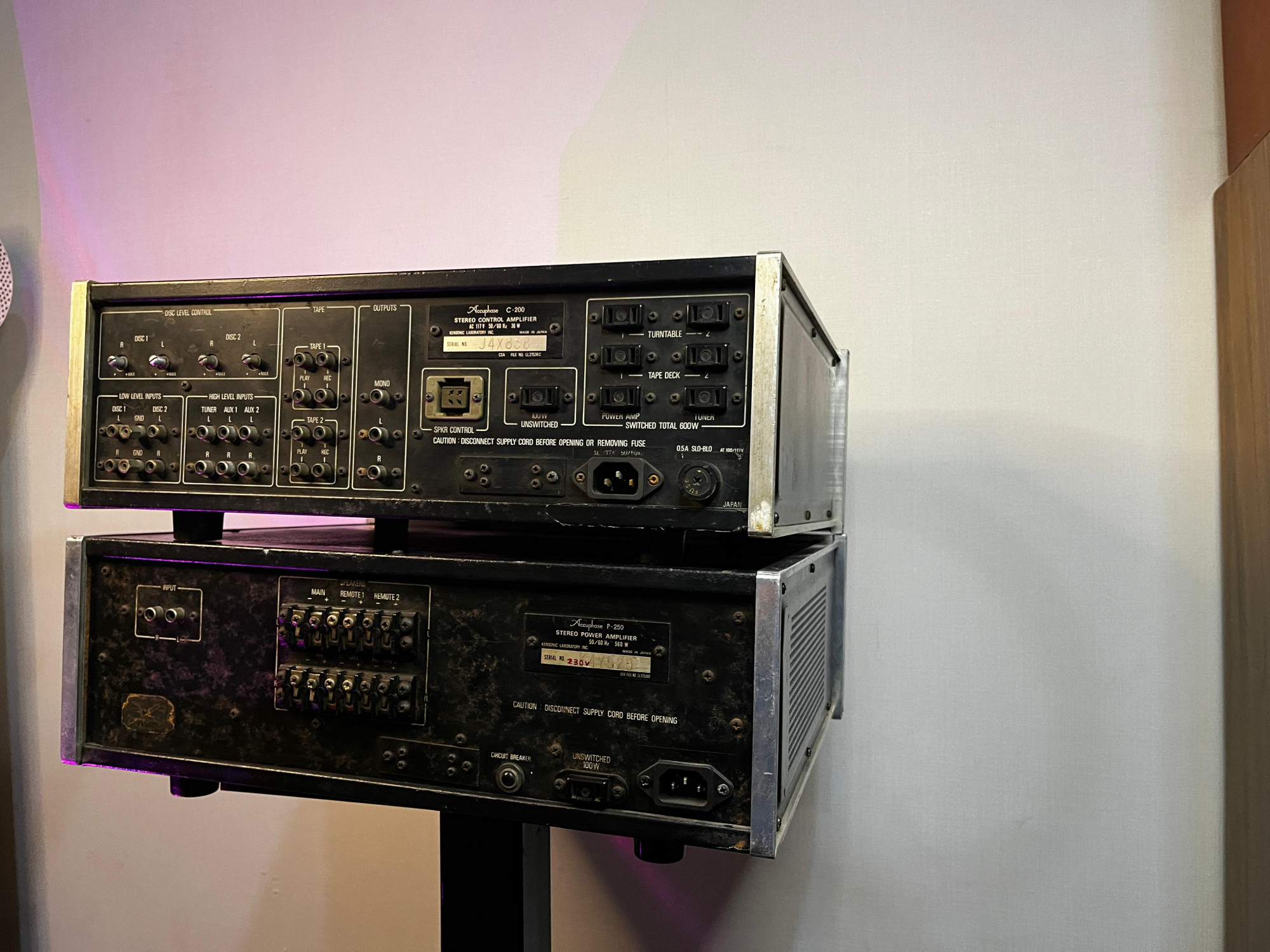

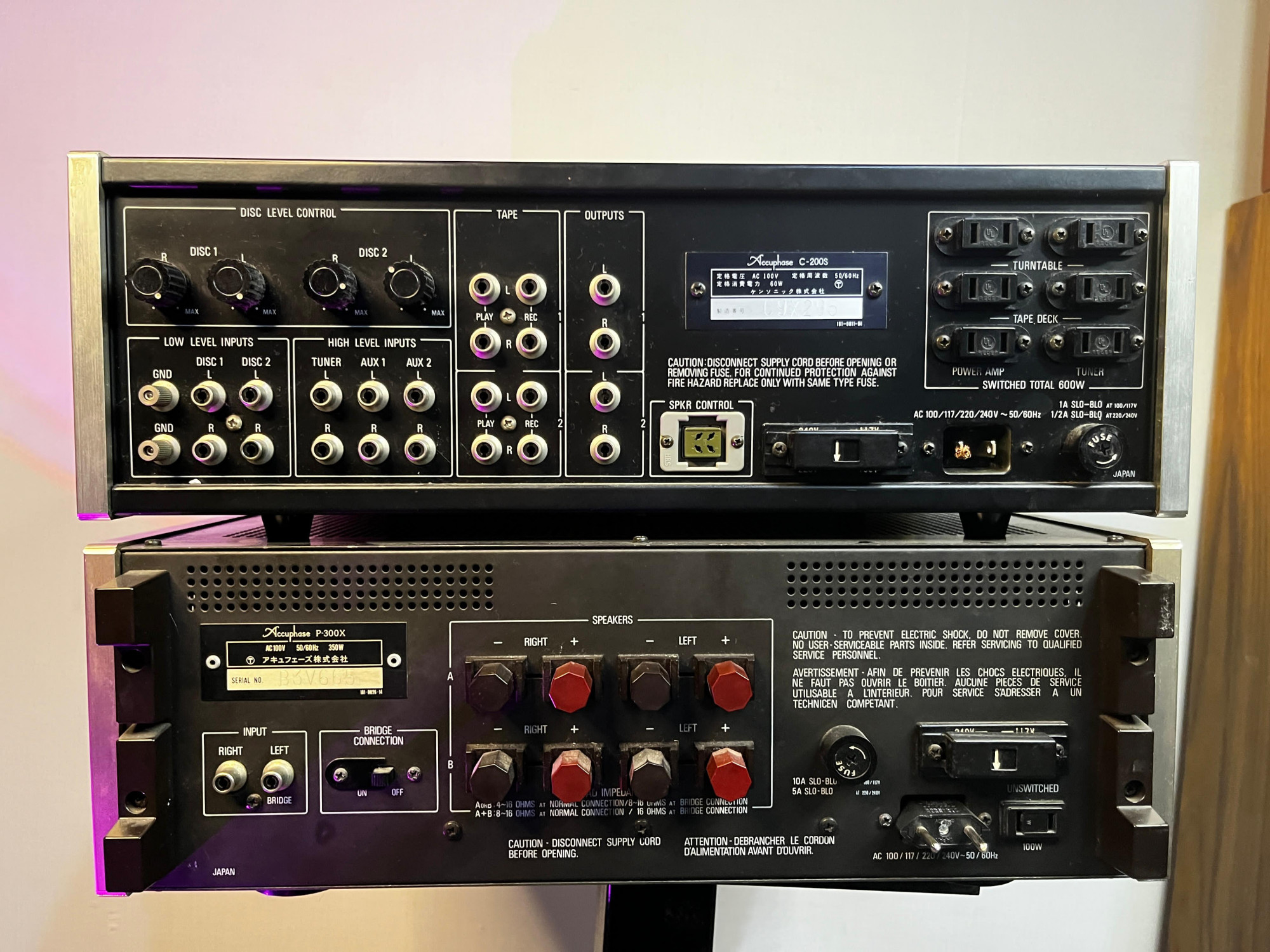

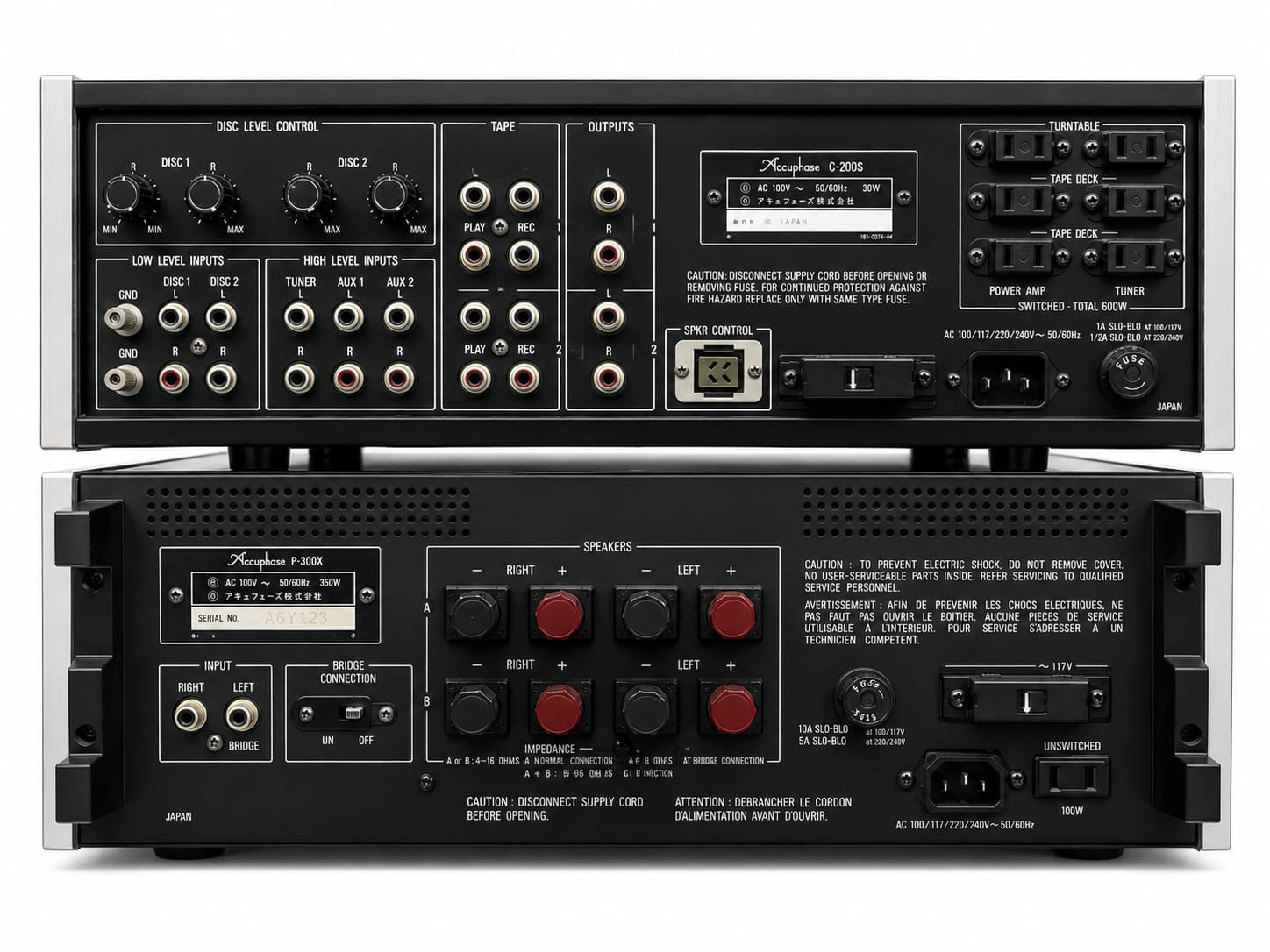

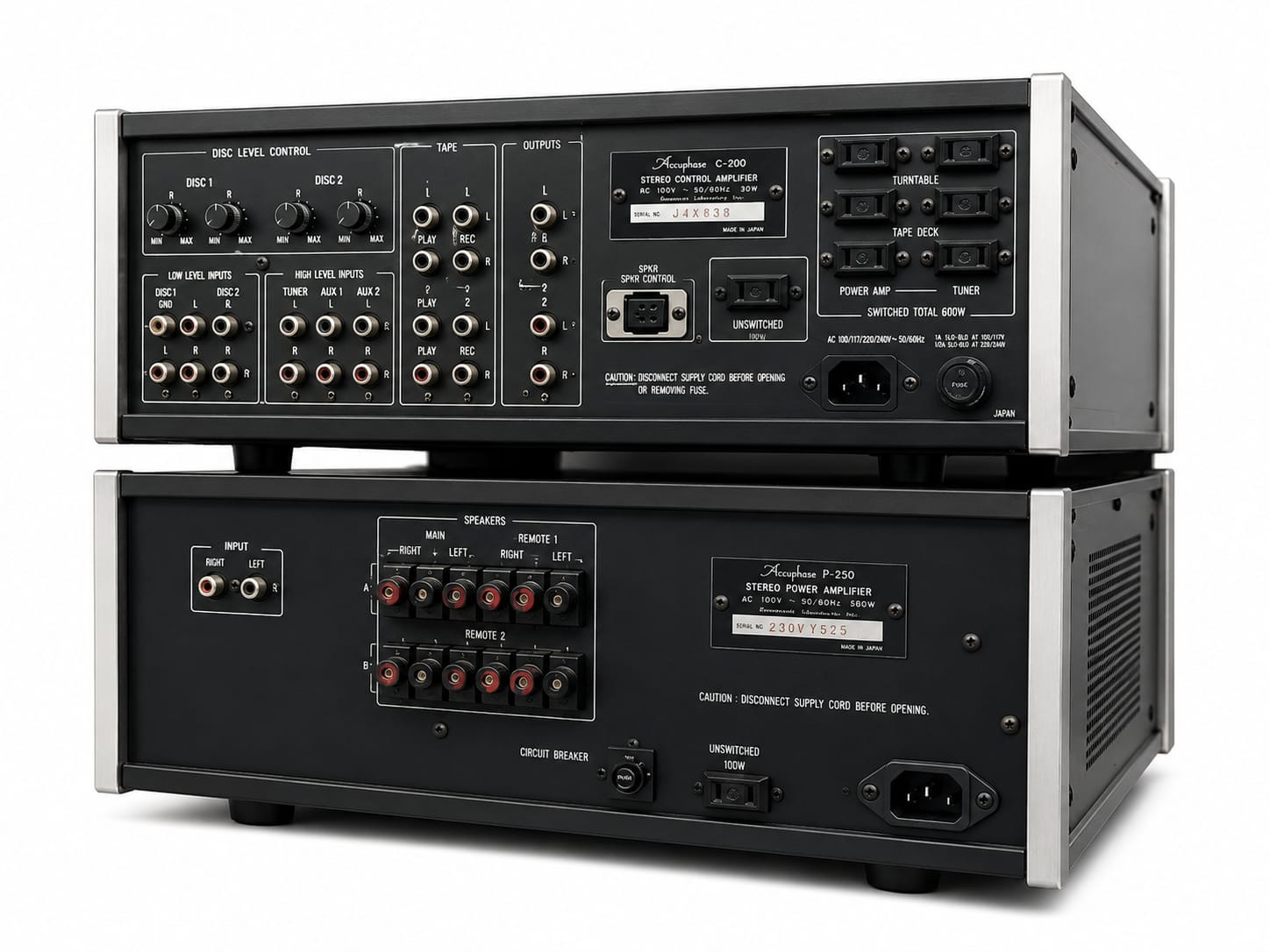

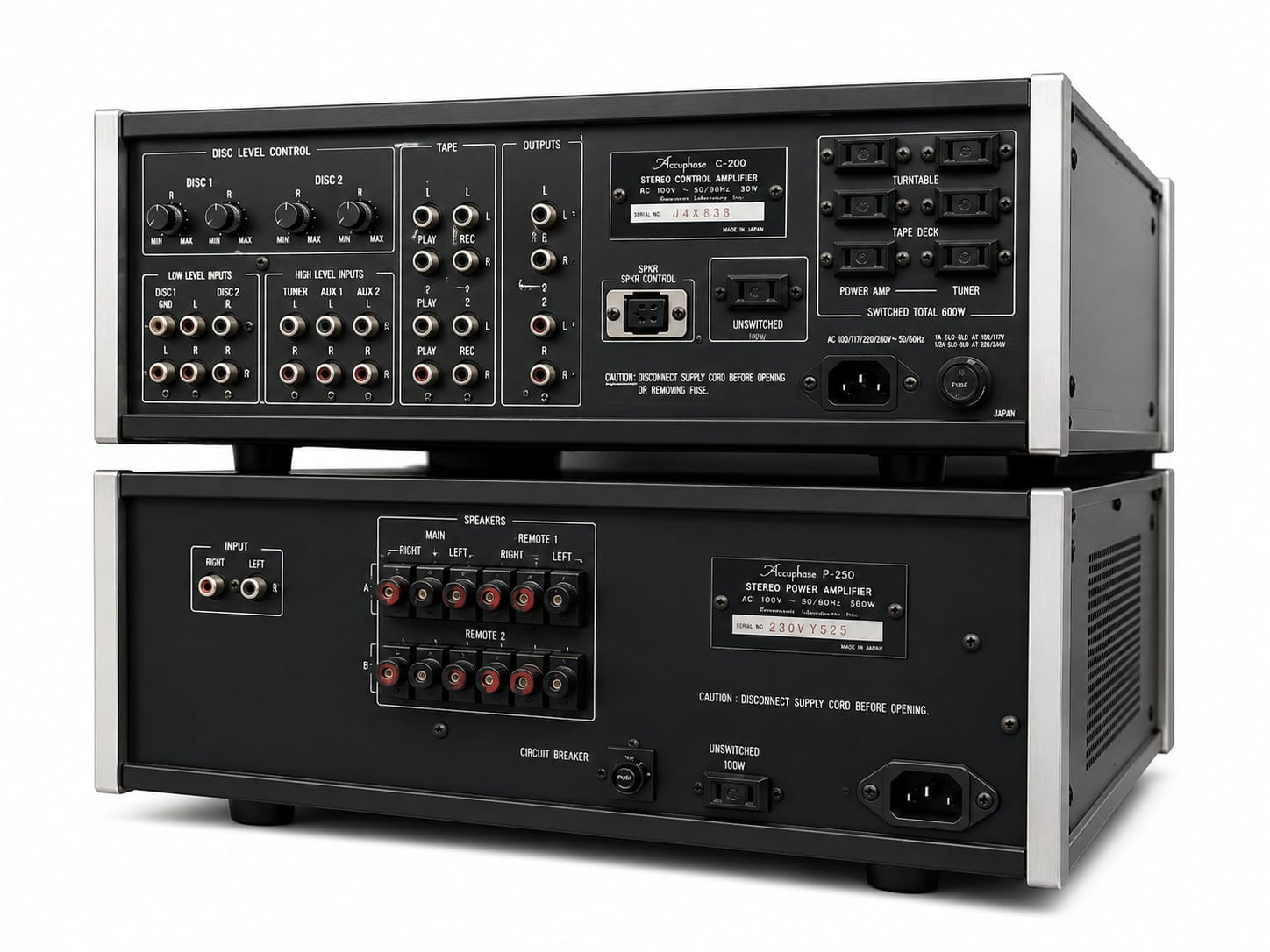

• Multiple Input/Output Options: The C-200 offers a total of 10 input and 7 output terminals, accommodating a wide variety of program sources and installation configurations.
  hifiengine.com
• Advanced Tone Controls: It features bass and treble tone controls with 10-step selection and two turnover frequencies for each, allowing precise tonal adjustments.
  hifiengine.com
• High-Quality Components: The preamplifier utilizes 80 transistors and 35 diodes, reflecting Accuphase's dedication to superior engineering.
  audio-database.com

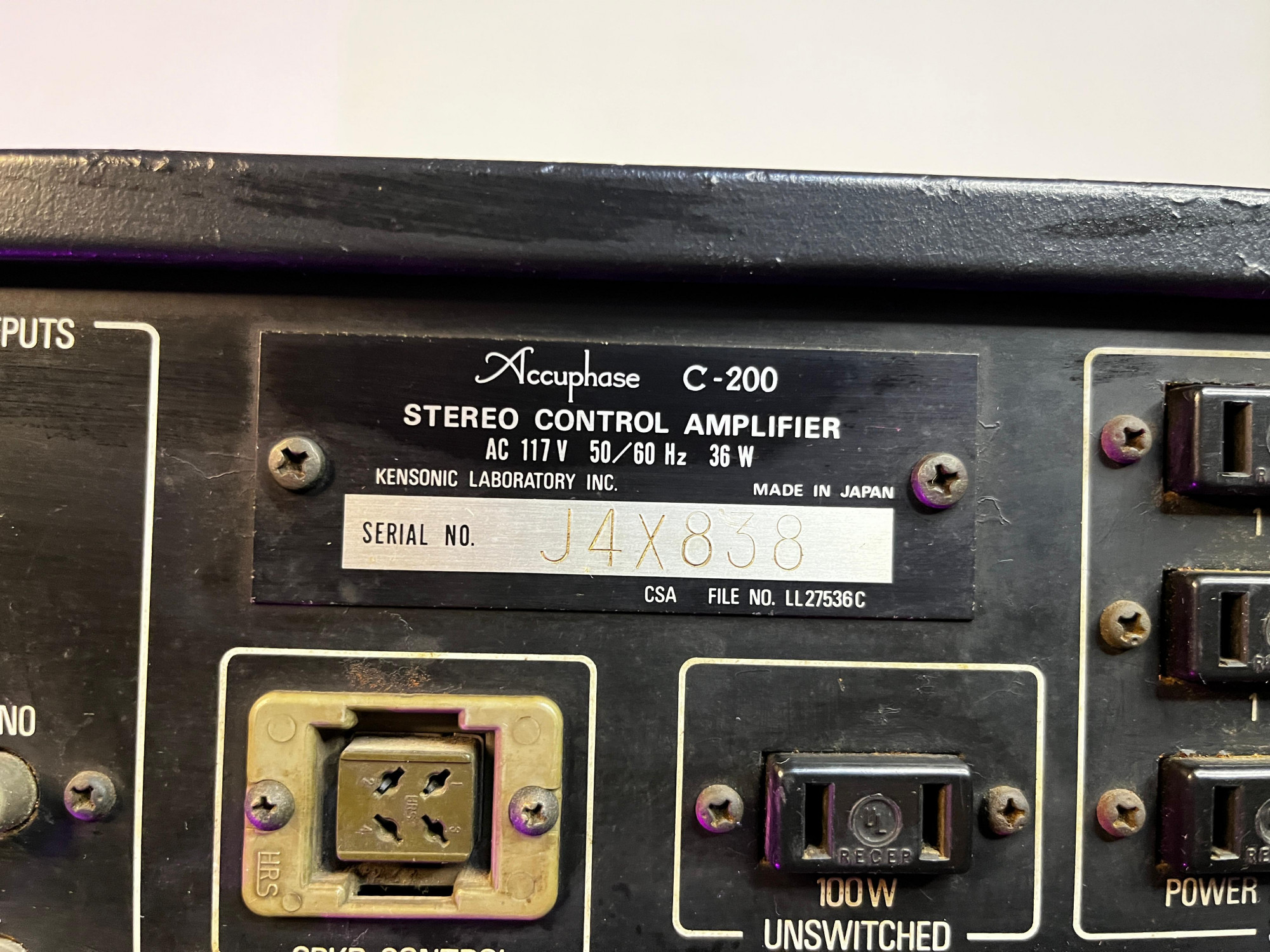

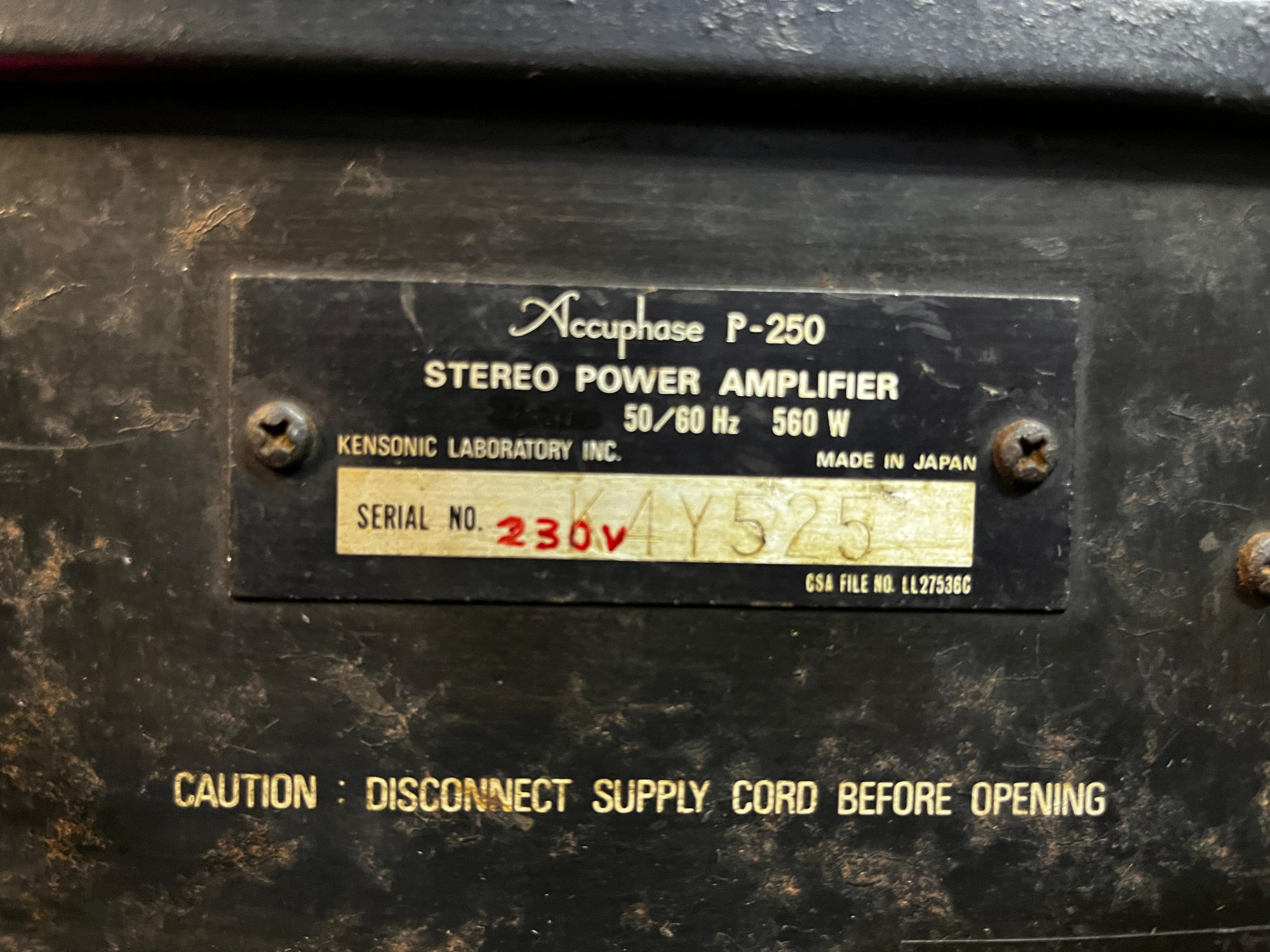

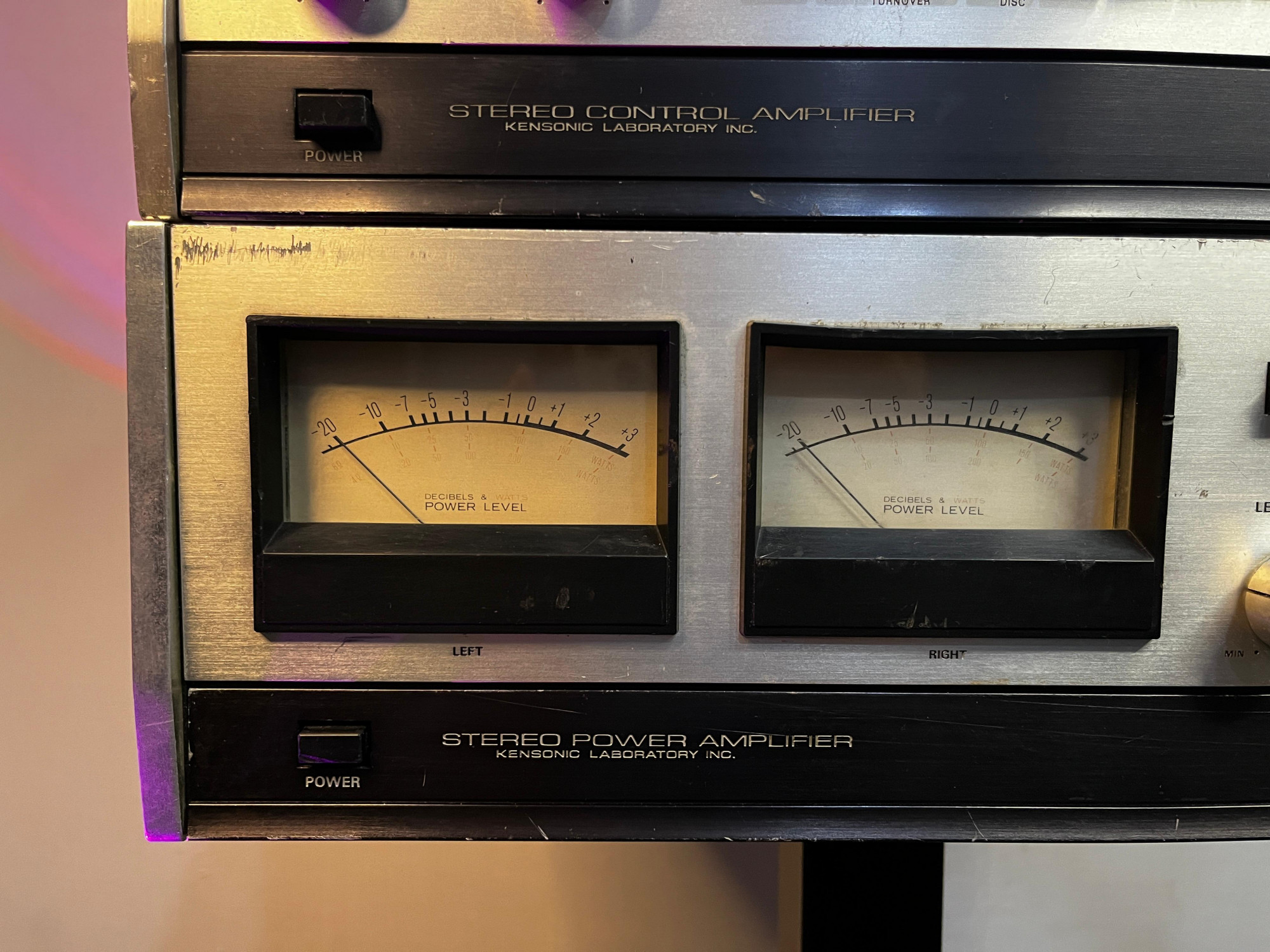

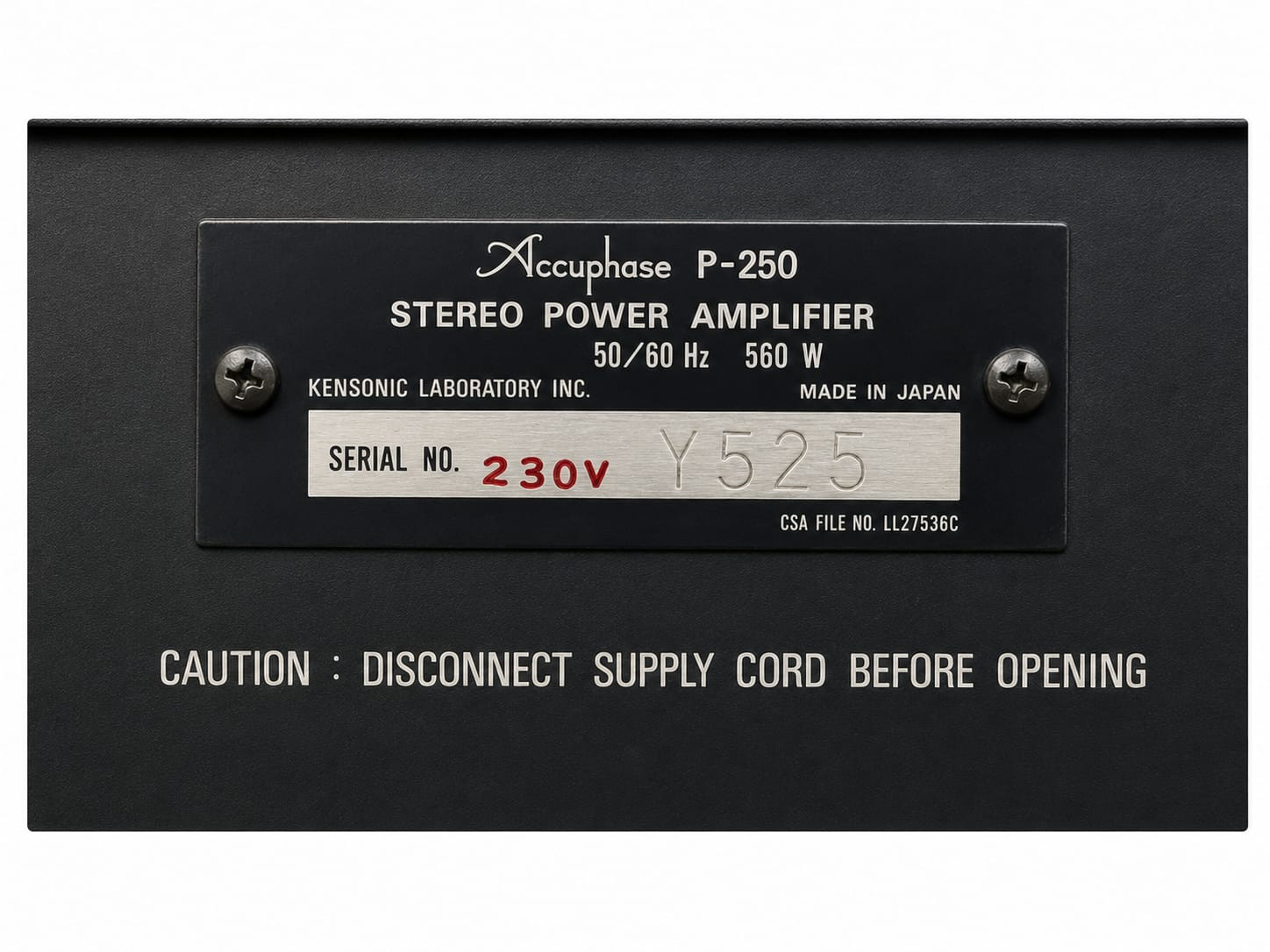

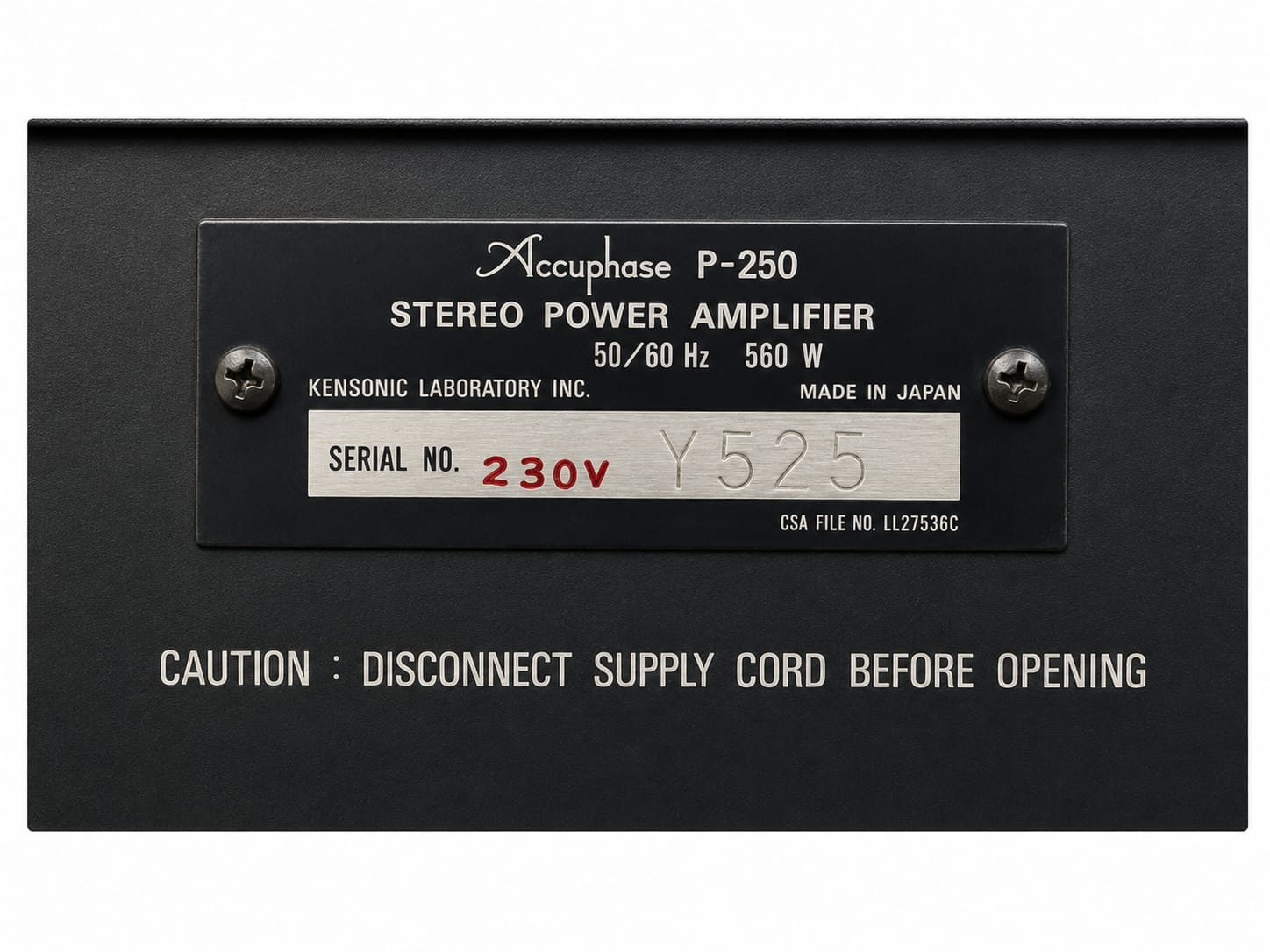

Accuphase P-250 Stereo Power Amplifier The P-250 is a stereo power amplifier known for delivering robust power output with exceptional clarity and low distortion. Technical Specifications:

• Power Output: 100 watts per channel into 8Ω (stereo)
• Frequency Response: 5Hz to 90kHz
• Total Harmonic Distortion (THD): 0.1%
• Damping Factor: 20
• Input Sensitivity: 1V
• Speaker Load Impedance: 4Ω to 16Ω
• Semiconductors Used: 36 transistors, 34 diodes
• Dimensions (W x H x D): 445 x 152 x 355 mm
• Weight: 19.5 kg

Notable Features:

• High Power Output: The P-250 delivers 100 watts per channel into 8Ω, ensuring clean sound quality at all listening levels.
  hifiengine.com
• Wide Frequency Response: With a frequency response extending from 5Hz to 90kHz, it captures a broad spectrum of audio frequencies.
  hifiengine.com
• Robust Construction: The amplifier's design incorporates heavy-duty power transistors in a parallel push-pull drive output stage and large heat sinks, ensuring reliable performance.
