Advance Acoustic MAP-102 Integrated Stereo Amplifier

Name: Advance Acoustic MAP-102 Integrated Stereo Amplifier
SKU: Advance Acoustic MAP-102
Price: 35000.00 INR
Availability: InStock

SKU: Advance Acoustic MAP-102

MRP:

₹ 35,000

(Exclusive of all taxes)

The Advance Acoustic MAP-102 is an integrated stereo amplifier featuring a brushed-metal front panel, large central volume control, digital display, multiple analogue inputs, phono connectivity, USB input and A/B speaker outputs.

More Information

Quantity:

- +

Availability:

1 in stock

Description

Product Overview

Advance Acoustic MAP-102 Bi-Mode High Bias Integrated Stereo Amplifier

The Advance Acoustic MAP-102 is a high-fidelity integrated stereo amplifier from Advance Acoustic's Black Line series. The unit combines a conventional integrated amplifier design with a selectable High Bias mode, allowing operation in a Class A-like mode at lower output levels before transitioning to Class AB operation at higher power. The front panel identifies the unit as a Bi-mode high bias integrated amplifier. The MAP-102 provides a wide range of analogue source connections, including dedicated CD, Tuner, AUX1-AUX4, Phono and PC2 inputs, along with Pre Out, Amp In and Pre Out 2 connections on the rear panel. It also includes speaker A/B selection, tone controls, headphone connectivity and a front-mounted USB input for MP3 playback. The amplifier is rated at 2 × 80 W into 8 ohms, with published specifications also listing 2 × 100 W into 4 ohms. The amplifier has a stated frequency response of 10 Hz–65 kHz (-3 dB) and a maximum power consumption of under 400 W.

Key Features

Advance Acoustic integrated stereo amplifier
Model MAP-102
Bi-mode High Bias amplifier design
Class A-like High Bias operation
Class AB operation at higher output levels
2 × 80 W power output at 8 ohms
2 × 100 W power output at 4 ohms
Frequency response: 10 Hz–65 kHz (-3 dB)
Tone control with Bass / Medium / Treble adjustment
Speaker A / B / A+B selection
CD input
Tuner input
AUX1, AUX2, AUX3 and AUX4 inputs
Phono input
PC input
USB input for MP3 playback
Pre Out
Amp In
Pre Out 2
Front headphone output
Large central volume/control dial
Digital front-panel display
PC / iPod equalizer functions
Heavy-duty speaker binding posts
Gold-plated analogue inputs
Selectable High Bias switch
115–230 V AC input arrangement
Maximum power consumption under 400 W
Dimensions approximately 12 × 43.5 × 32 cm
Net weight approximately 9.4 kg

Visible Connections & Controls

The photographs provide particularly good evidence of the following:

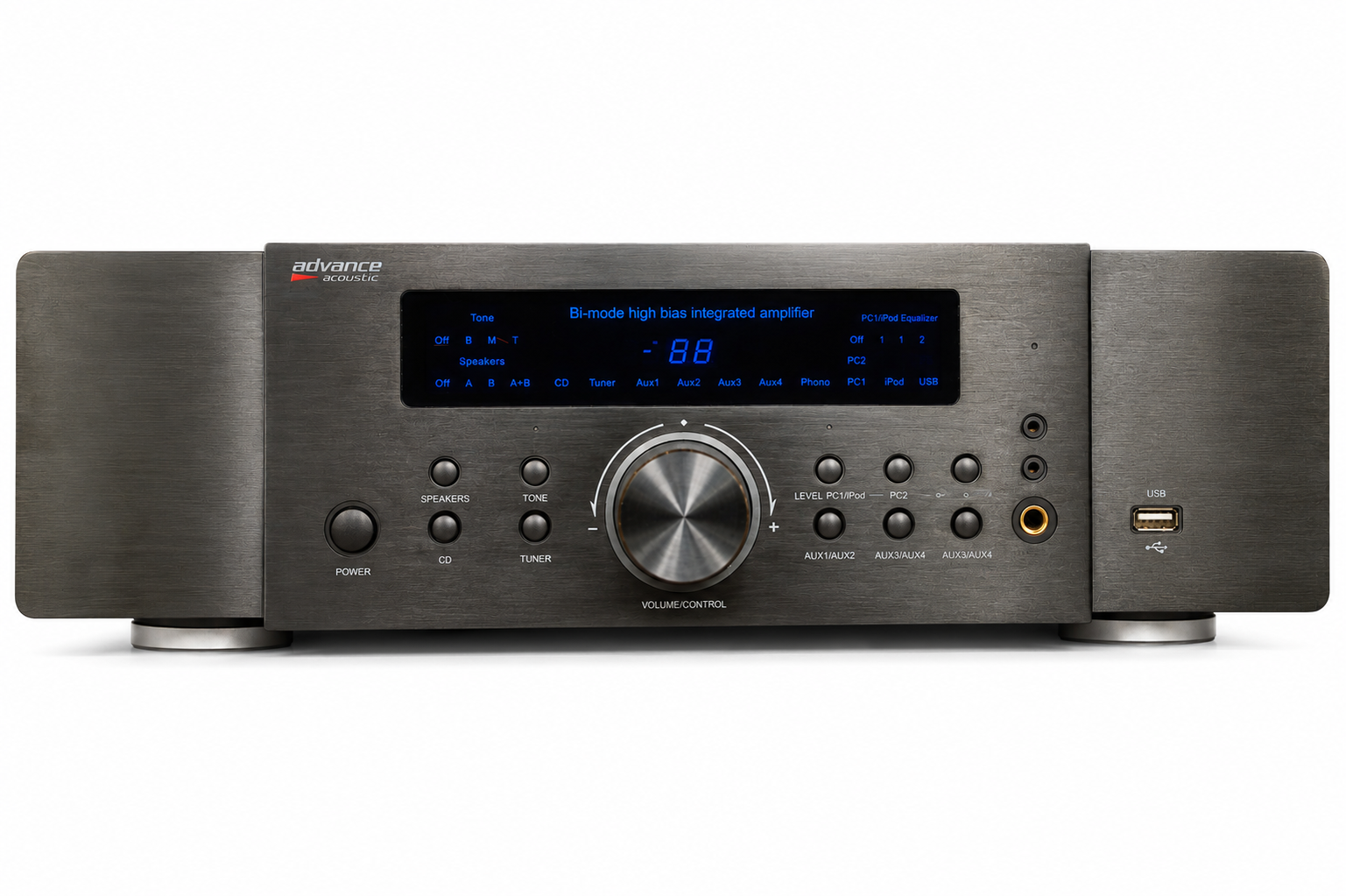

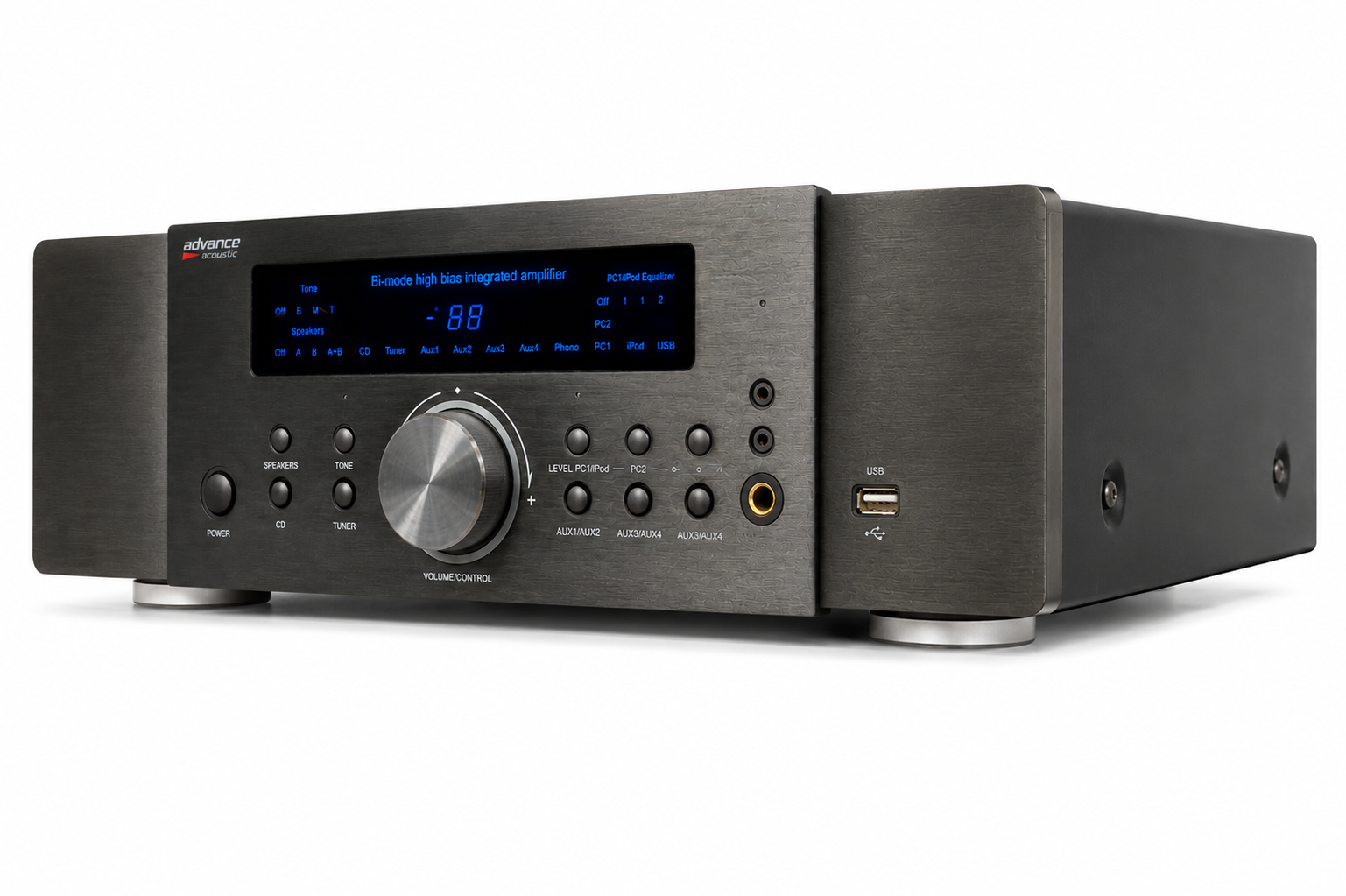

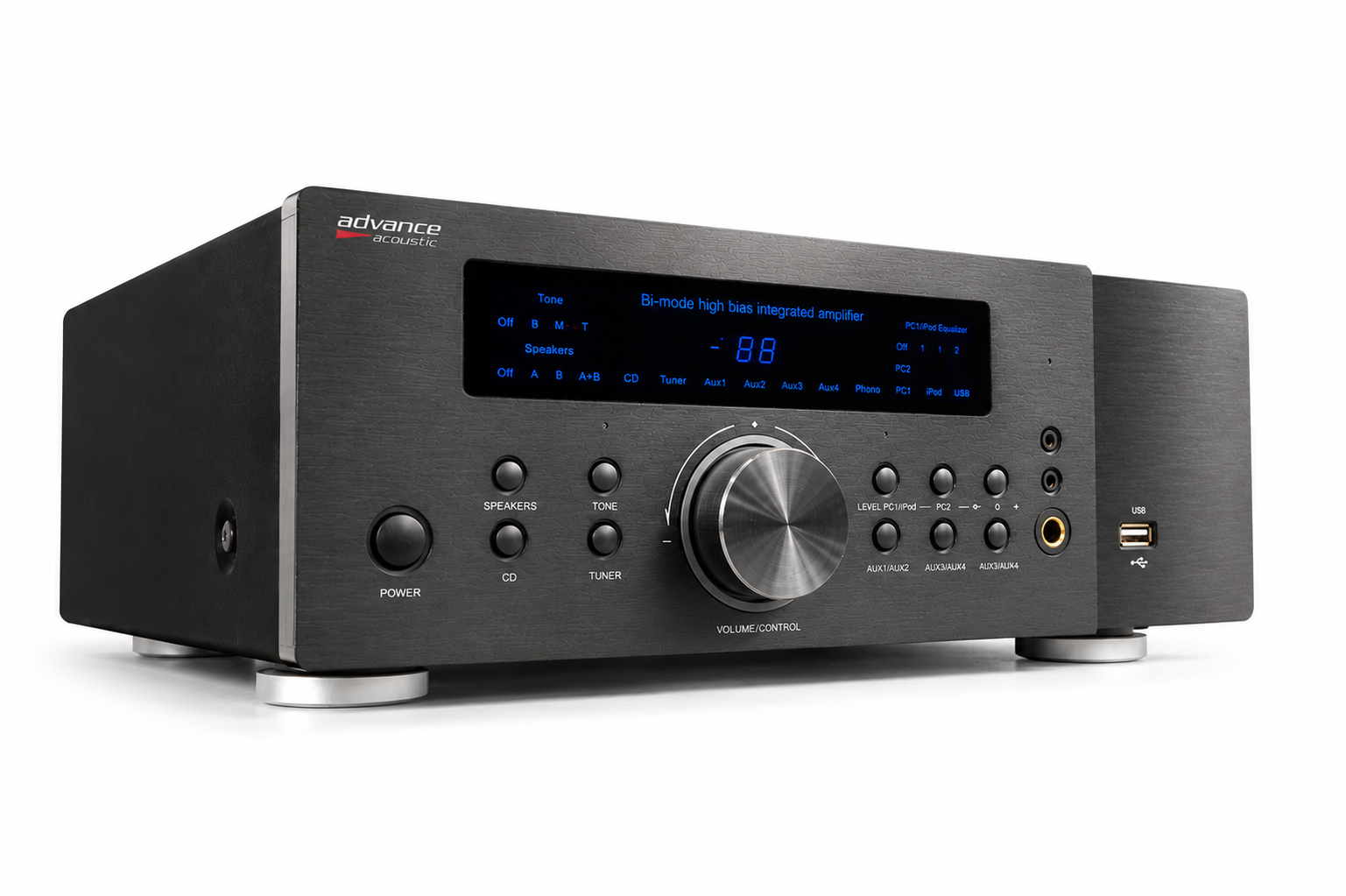

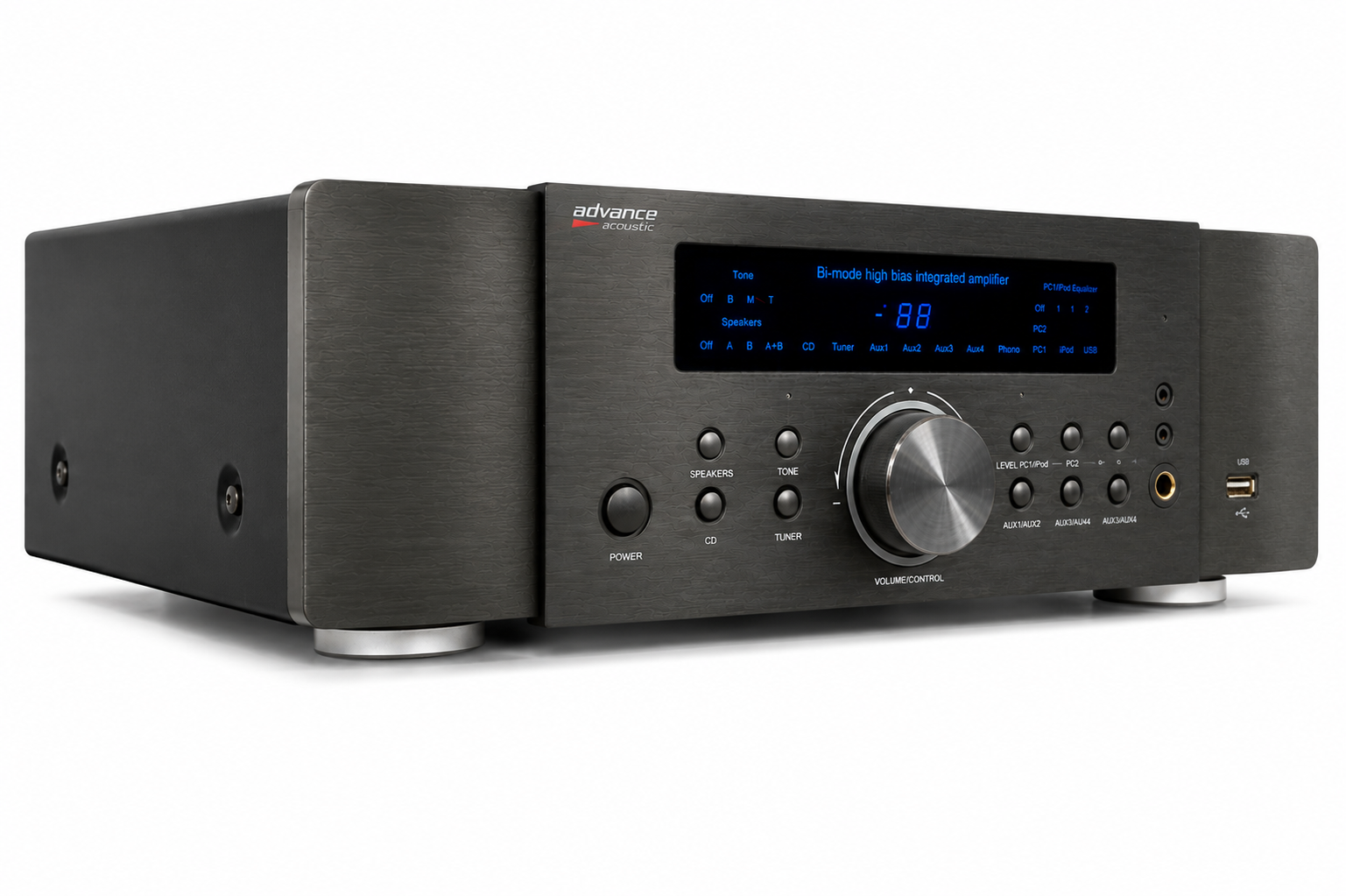

Front Panel

Power button
Speakers selection
Tone control
CD selection
Tuner selection
Large Volume / Control dial
Level adjustment controls
AUX1/AUX2 selection
AUX selection
PC/iPod-related controls
Digital display
Headphone output
USB input
Multiple front-panel control buttons
Advance Acoustic branding
High Bias amplifier identification

The display visibly identifies the amplifier as a Bi-mode high bias integrated amplifier and shows source, speaker and tone-related indicators.

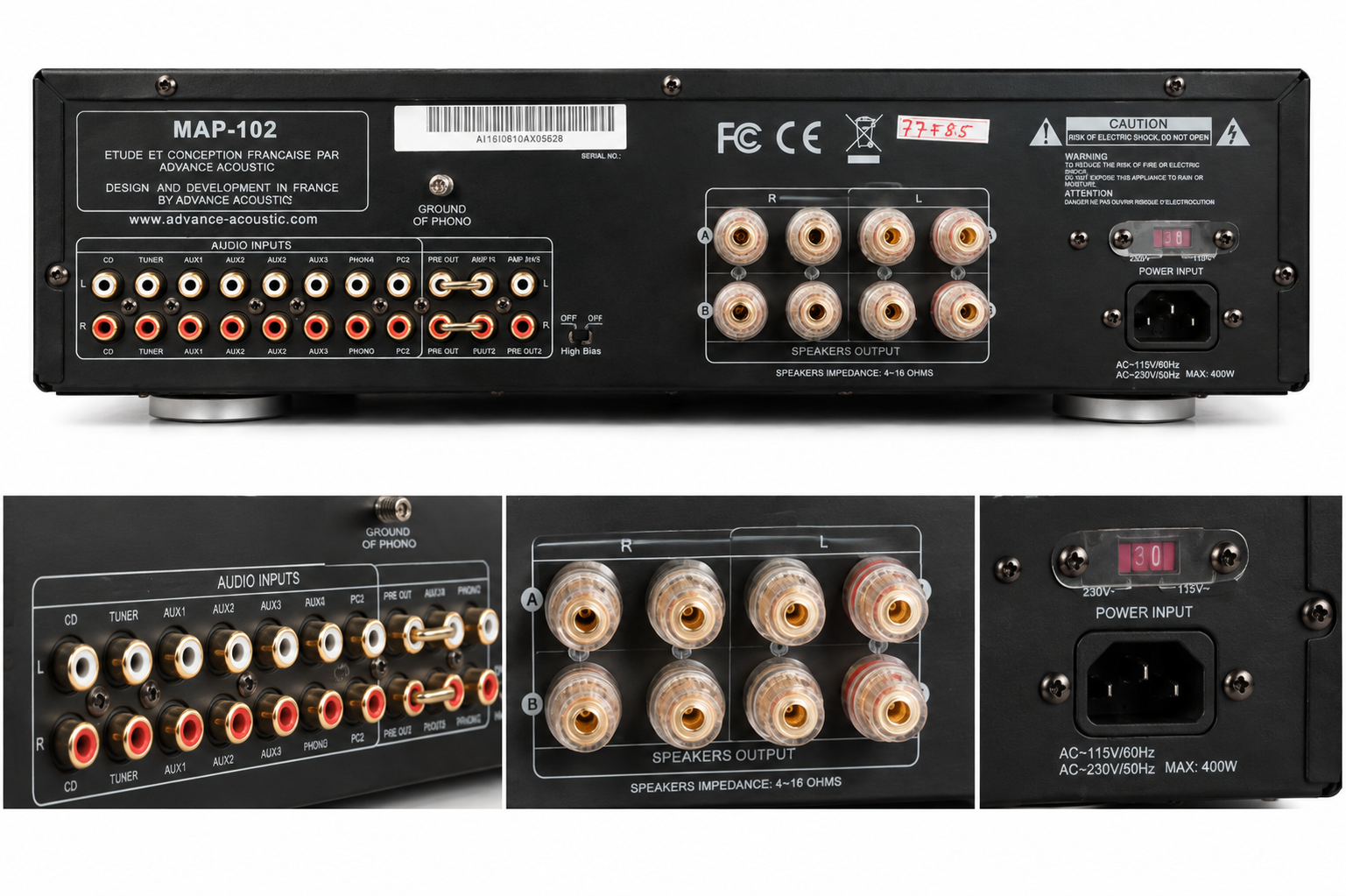

Rear / Side Panel

The rear panel clearly shows:

CD L/R
Tuner L/R
AUX1 L/R
AUX2 L/R
AUX3 L/R
AUX4 L/R
Phono L/R
PC2 L/R
Pre Out L/R
Amp In L/R
Pre Out 2 L/R
Phono ground terminal
Speaker A outputs
Speaker B outputs
High Bias ON/OFF switch
Power input
Voltage selector
AC power connection

The rear panel also visibly states speaker impedance: 4–16 ohms and shows the power-input markings for AC 115 V / 60 Hz and AC 230 V / 50 Hz, with the selector photographed in the 230 V position. The serial number visible on the rear label is AT16I0610AX05628.

Condition Report

Based strictly on the photographs:

Cosmetic Condition

Good Vintage
The amplifier has a strong overall appearance, but it clearly shows signs of previous use and age. The main chassis and controls remain intact, while the brushed-metal finish and side panels show visible cosmetic wear.
