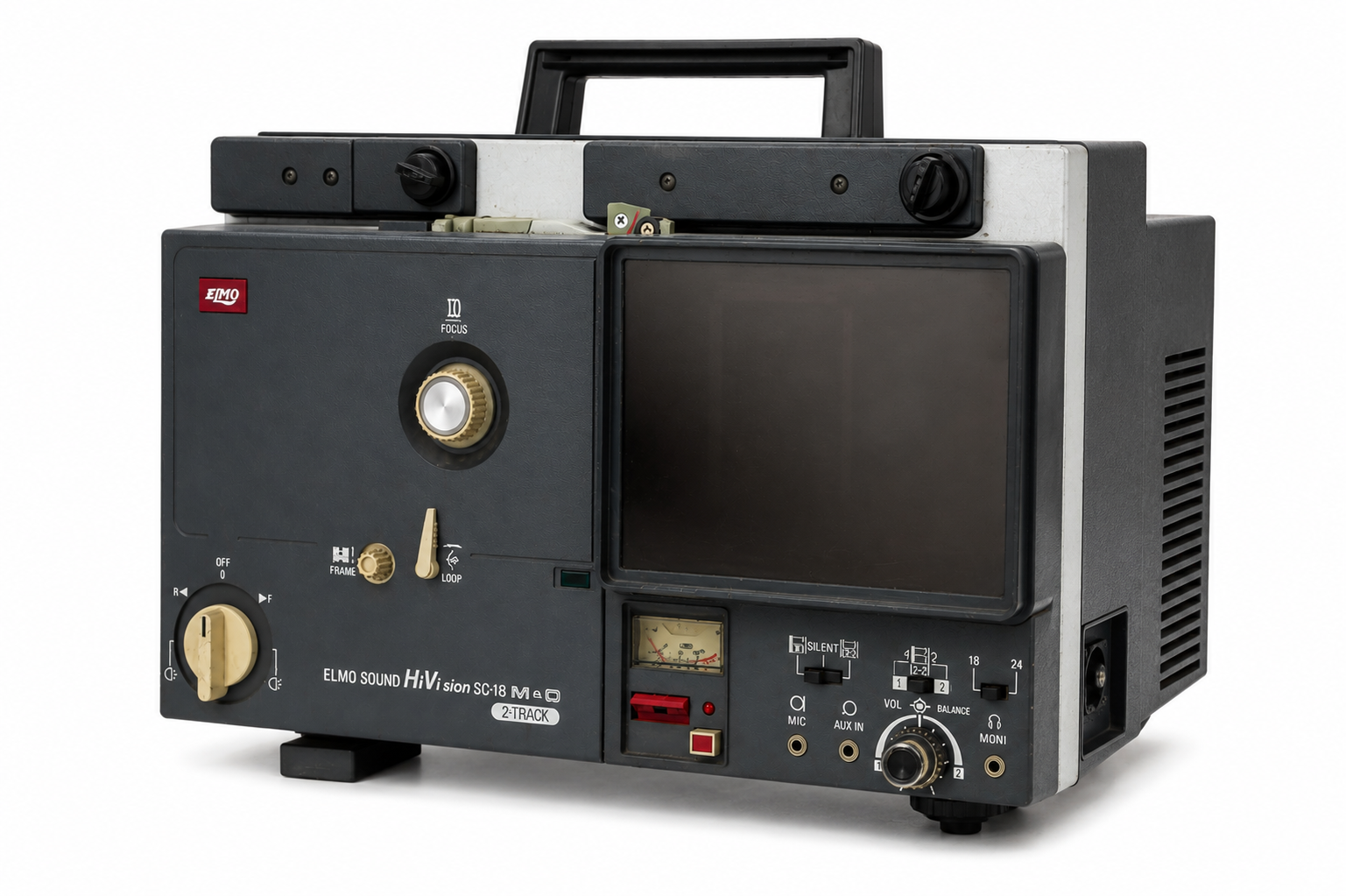

The ELMO SOUND HiVision SC-18M is a vintage Super 8 sound film projector designed for both film projection and two-track audio playback. Its dark gray chassis features an integrated projection mechanism with a front optical assembly, manual focus control, film-frame and loop controls, and a large projection viewing area. The front control panel also incorporates audio controls, including a microphone input, auxiliary input, volume and balance adjustment, silent control, and headphone connection. The projector is marked ELMO SOUND HiVision SC-18M 2-TRACK on the front panel. Its rear specification plate identifies the model as SC-18 and confirms a 3 W amplifier output at 4 Ω and a 12 V / 100 W projection lamp. The unit supports multiple AC input voltages, making it suitable for different electrical standards when correctly configured. The rear label specifies 100, 115, 125 V and 220, 230, 240 V AC at 50/60 Hz, with a rated power consumption of 200 W. This is a particularly interesting piece for collectors of vintage film equipment, Super 8 enthusiasts, and collectors of classic ELMO projection equipment.
Product Overview / Key Features
- ELMO SOUND HiVision SC-18M
- Super 8 film projector
- 2-track sound system
- Integrated sound amplifier
- 3 W amplifier output at 4 Ω
- 12 V / 100 W projection lamp
- 200 W rated power consumption
- Multi-voltage AC operation
- 50/60 Hz compatibility
- Built-in projection lens
- Manual focus control
- Frame control
- Loop function
- Built-in sound controls
- Microphone input
- AUX IN input
- Volume control
- Balance control
- Headphone output
- Silent function
- Built-in speaker system
- Integrated carrying handle
- Made in Japan
The two-track configuration and 12 V / 100 W lamp are documented for the HiVision SC-18 family.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ELMO |
| Model | HiVision SC-18M |
| Model Number | SC-18 |
| Product Type | Super 8 Sound Film Projector |
| Film Format | Super 8 |
| Sound Format | 2-Track |
| Projection System | Film Projection |
| Projection Lamp | 12 V / 100 W |
| Amplifier Output | 3 W |
| Speaker Impedance | 4 Ω |
| Power Consumption | 200 W |
| AC Input | 100 / 115 / 125 V AC |
| AC Input | 220 / 230 / 240 V AC |
| Frequency | 50 / 60 Hz |
| Country of Manufacture | Japan |
| Lens | Present |
| Focus Control | Manual |
| Frame Control | Present |
| Loop Function | Present |
| Microphone Input | Present |
| AUX Input | Present |
| Volume Control | Present |
| Balance Control | Present |
| Headphone Connection | Present |
| Silent Function | Present |
| Built-in Speaker | Present |
Verified Rear Label Information
The photographed specification plate is particularly useful here. It explicitly states: AC 100, 115, 125 / 220, 230, 240 V ~ 50 & 60 Hz / 200 W
PROJECTION LAMP 12 V 100 W
AMP. OUTPUT 3 W (4 Ω)
SC-18
ELMO CO., LTD. / MADE IN JAPAN
Controls & Connections Visible

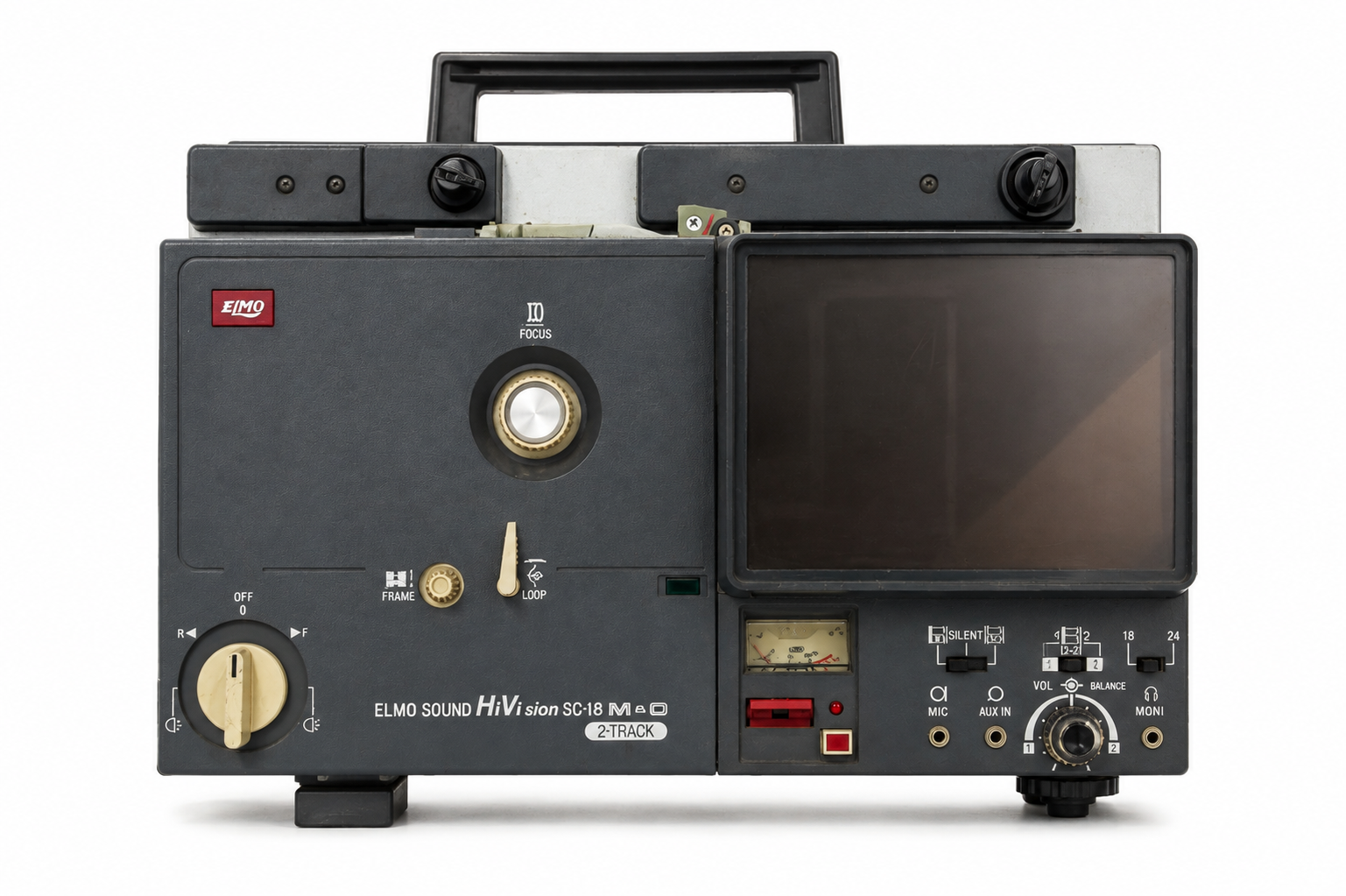

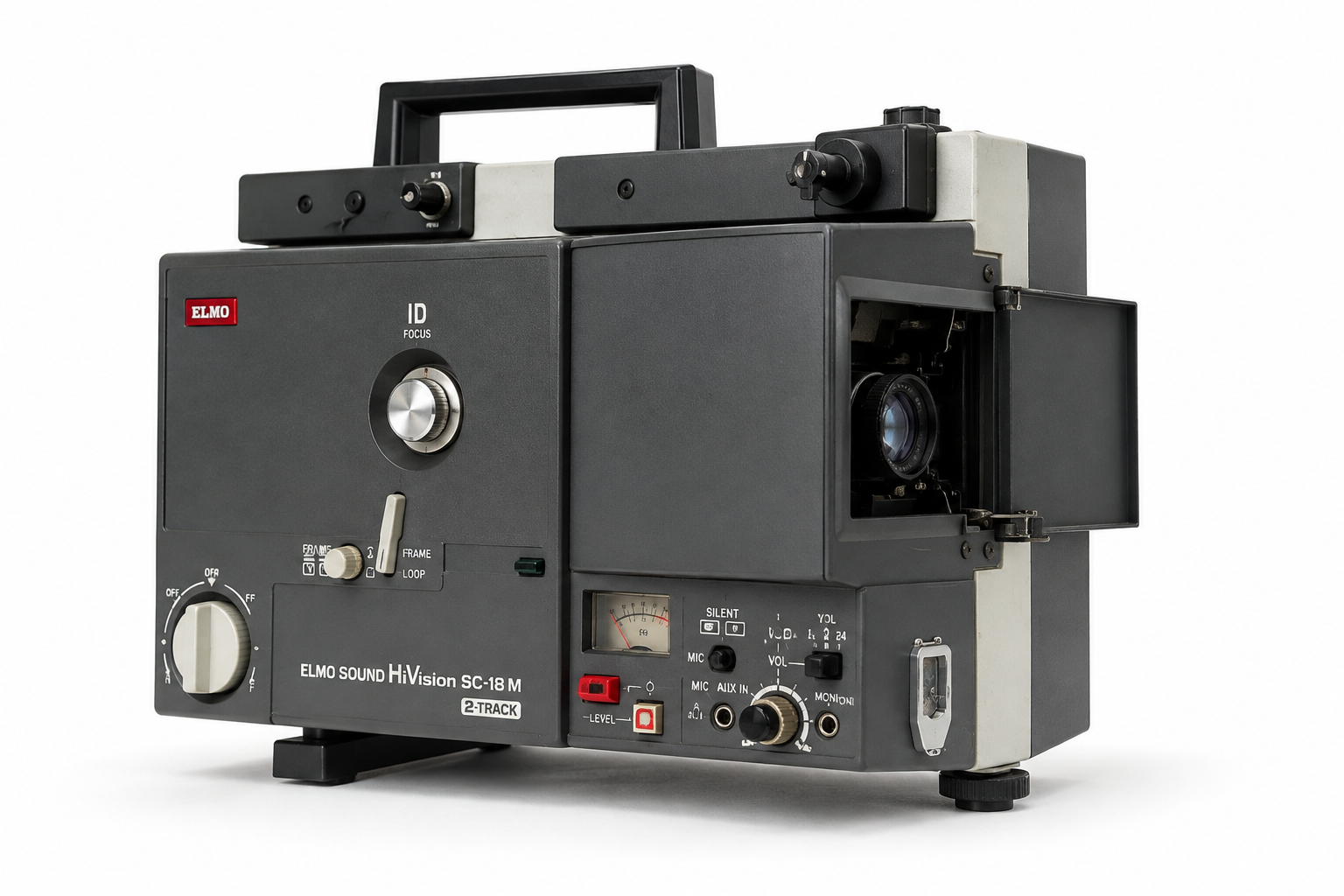

Front Panel
The photographs show:
- Focus control
- Main operating control
- Frame control
- Loop control
- Film transport control
- Sound-level meter
- Silent control
- Track / channel selection controls
- Volume control
- Balance control
- 18 / 24 speed-related markings
- Microphone input
- AUX IN
- Headphone connection
- Indicator light
- Film projection viewing assembly
Rear Panel
The rear includes:
- Large cooling ventilation area
- AC power connection
- External speaker connection marked EXT SP
- Additional control/connection area
- Main specification plate
- Carrying handle
Cosmetic Condition
Good Vintage Condition The projector shows visible signs of age and previous use consistent with a vintage film projector.
Visible condition observations
- Surface scratches and scuffs on the painted housing
- Minor discoloration and aging to the lighter-colored sections
- General surface wear
- Some dust/age accumulation around ventilation areas and mechanical sections
- Scratches visible on the projection/viewing cover
- Wear around some knobs and controls
- Minor marks around the chassis
- General vintage patina
What's Included
Included
- ELMO SOUND HiVision SC-18M projector
- Installed projection mechanism
- Installed lens
- Built-in controls and audio section
- Built-in speaker system
