Description
Key Characteristics of the Kenwood KL-777X MK II (Likely):

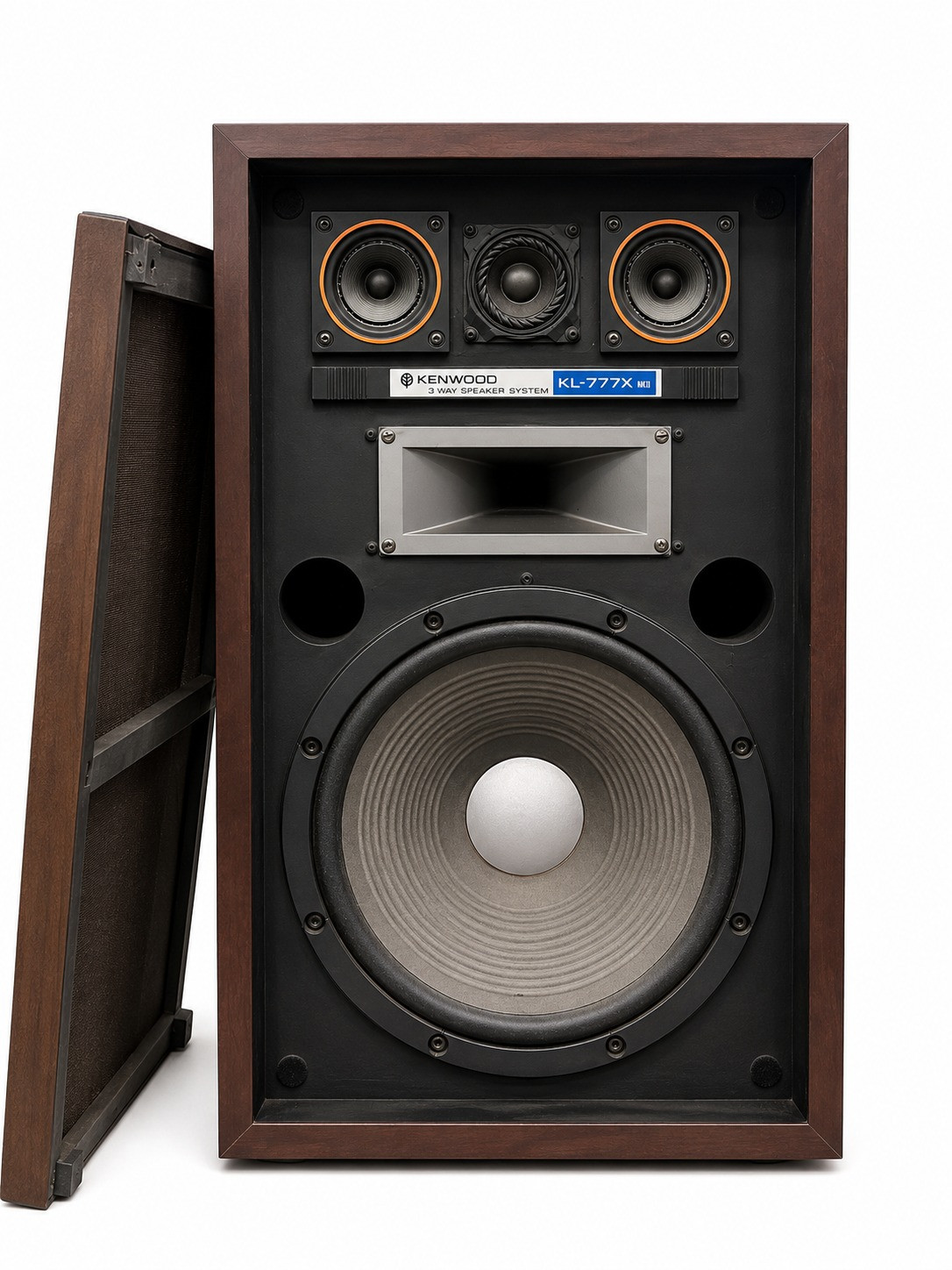

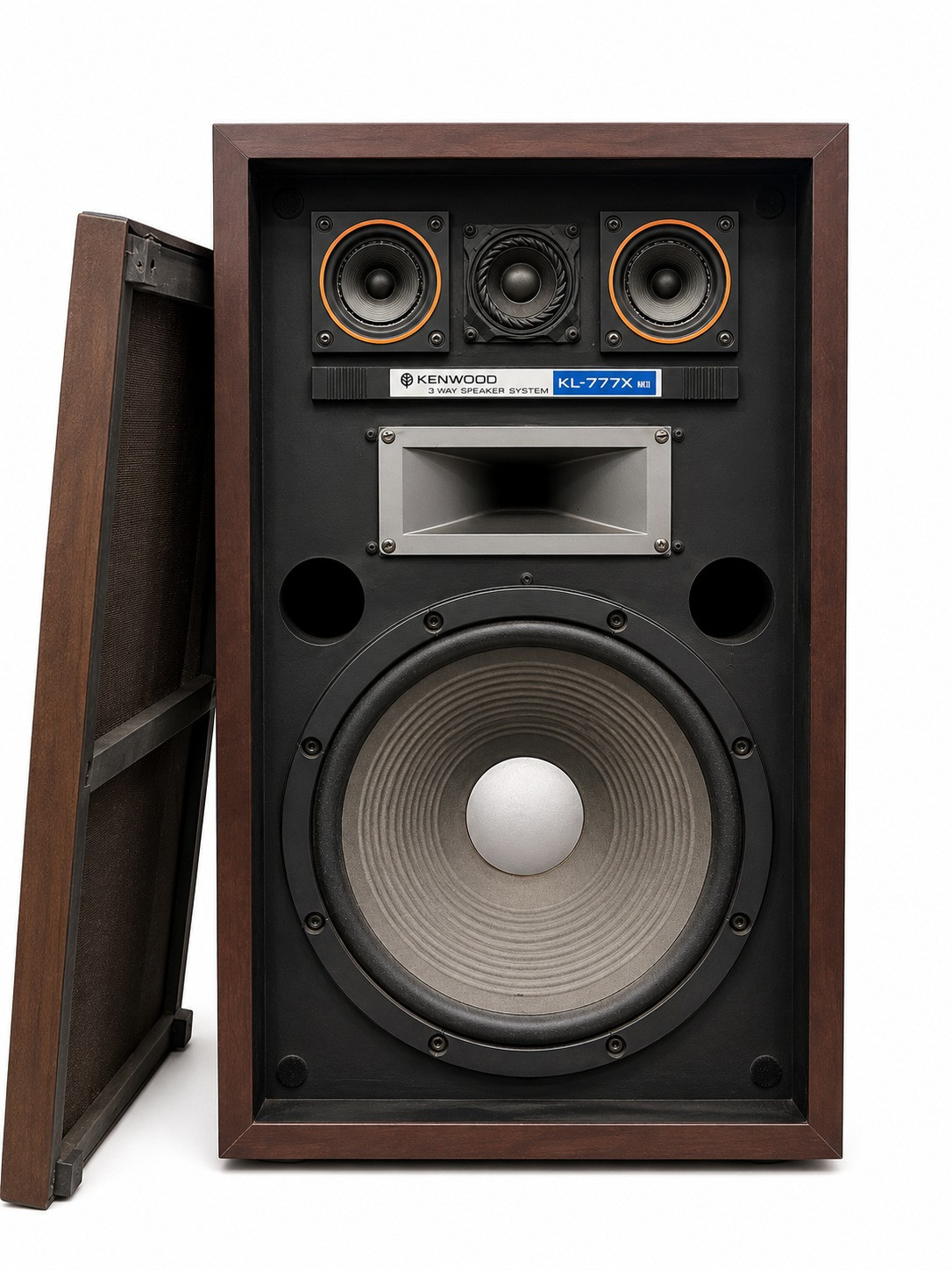

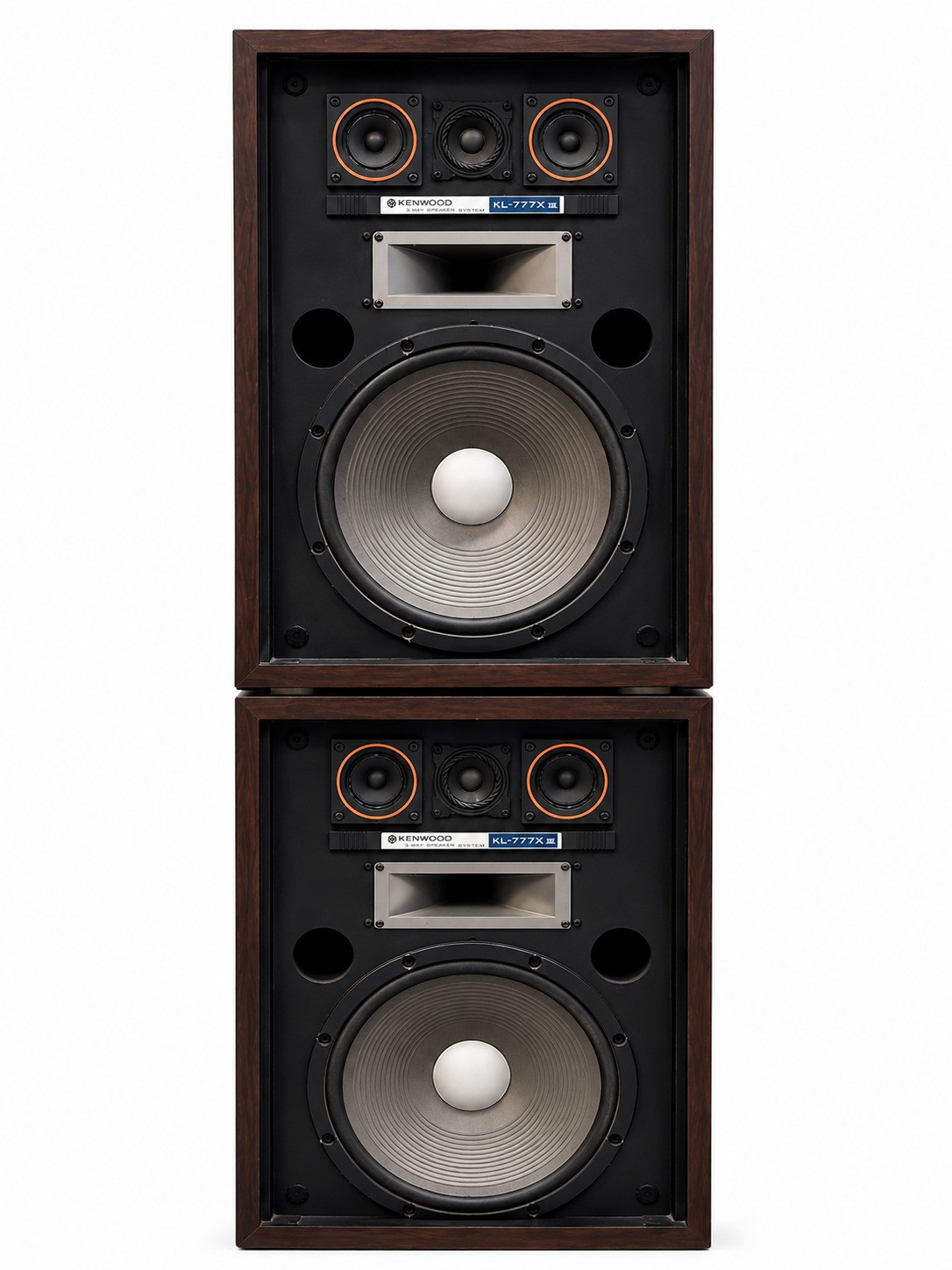

- Multi-Way Speaker System: These were typically 4-way or even 5-way speaker systems, featuring multiple drivers for different frequency ranges. This was a common design philosophy for Japanese speakers of that era, aiming for a wide frequency response and high sensitivity.

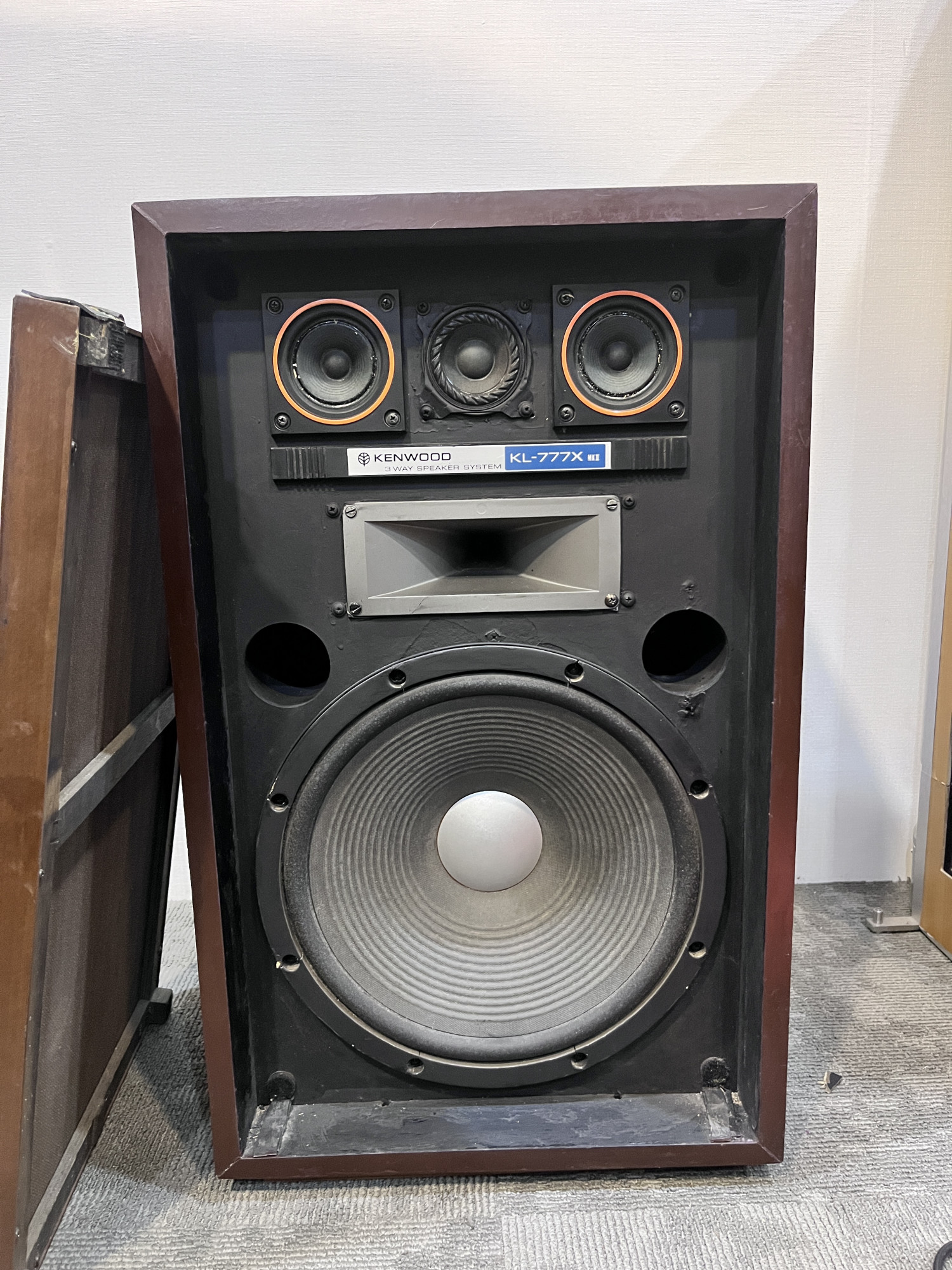

- Large Woofer: Expect a large woofer, possibly in the 12-inch to 16-inch range, designed to deliver powerful bass.
- Multiple Midrange Drivers: Often included one or more midrange drivers to handle the middle frequencies.
- Multiple Tweeters: Typically featured one or more tweeters, sometimes including a horn tweeter or super tweeter, to reproduce high frequencies.
- High Sensitivity: Kenwood KL series speakers were generally known for their high sensitivity, meaning they could produce a lot of sound with relatively little amplifier power.

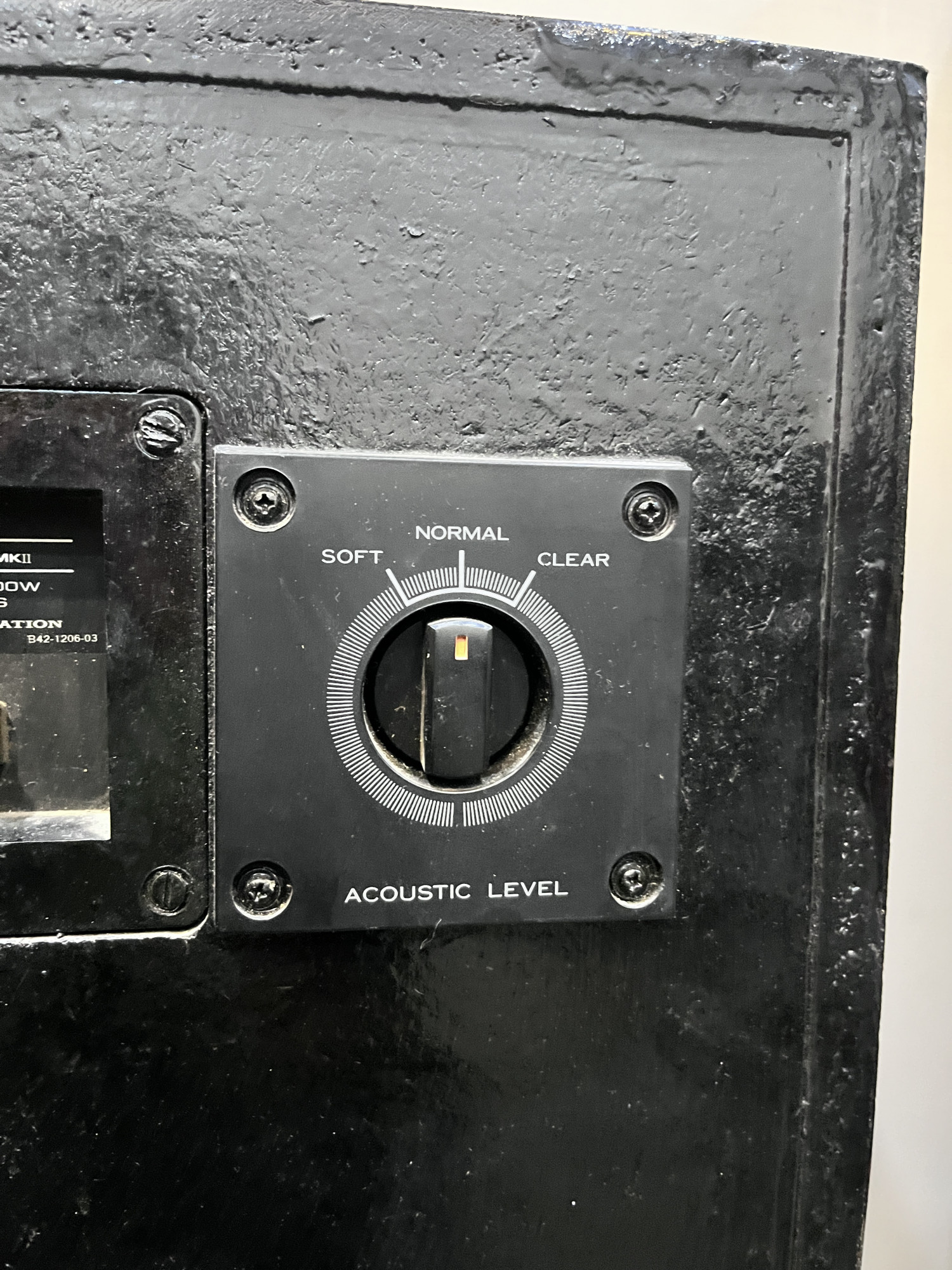

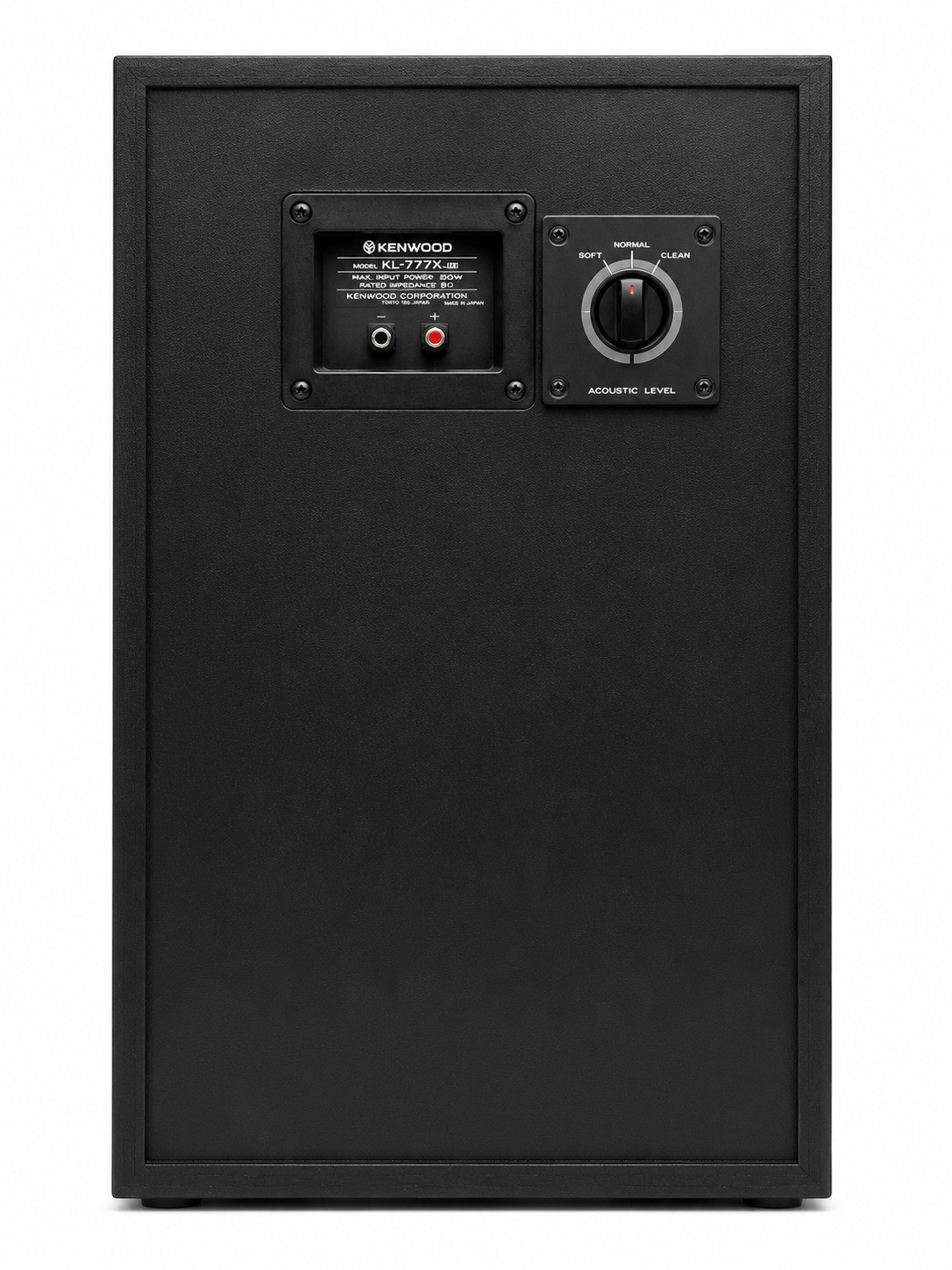

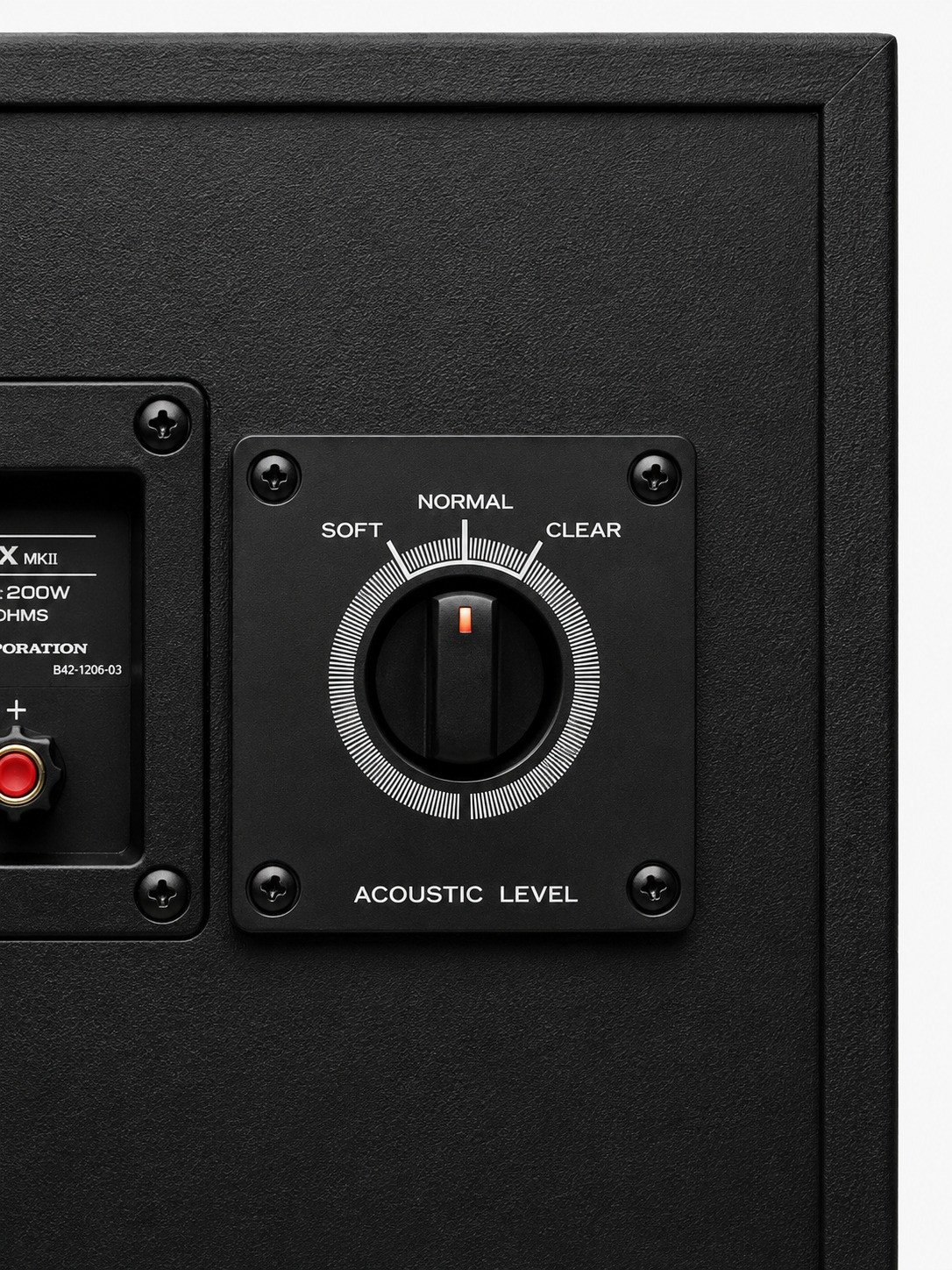

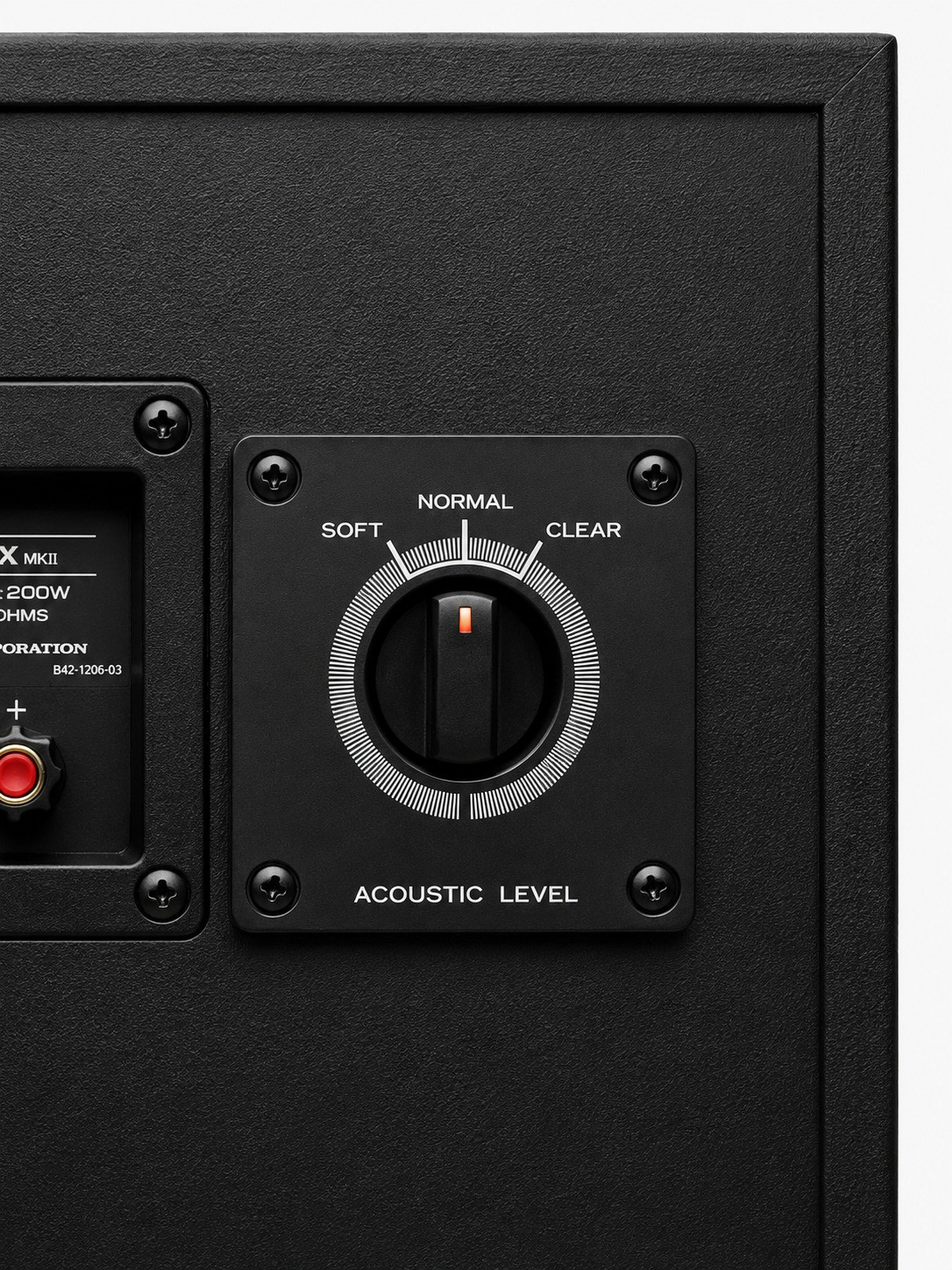

- Tone Controls on the Speaker: Some models in the KL-777 series had tone controls (like "Soft," "Normal," "Clear") directly on the speaker cabinet, allowing for some adjustment of the sound balance.
- Acoustic Suspension or Bass Reflex: The enclosure design could be either acoustic suspension (sealed) or bass reflex (ported) to enhance bass response.

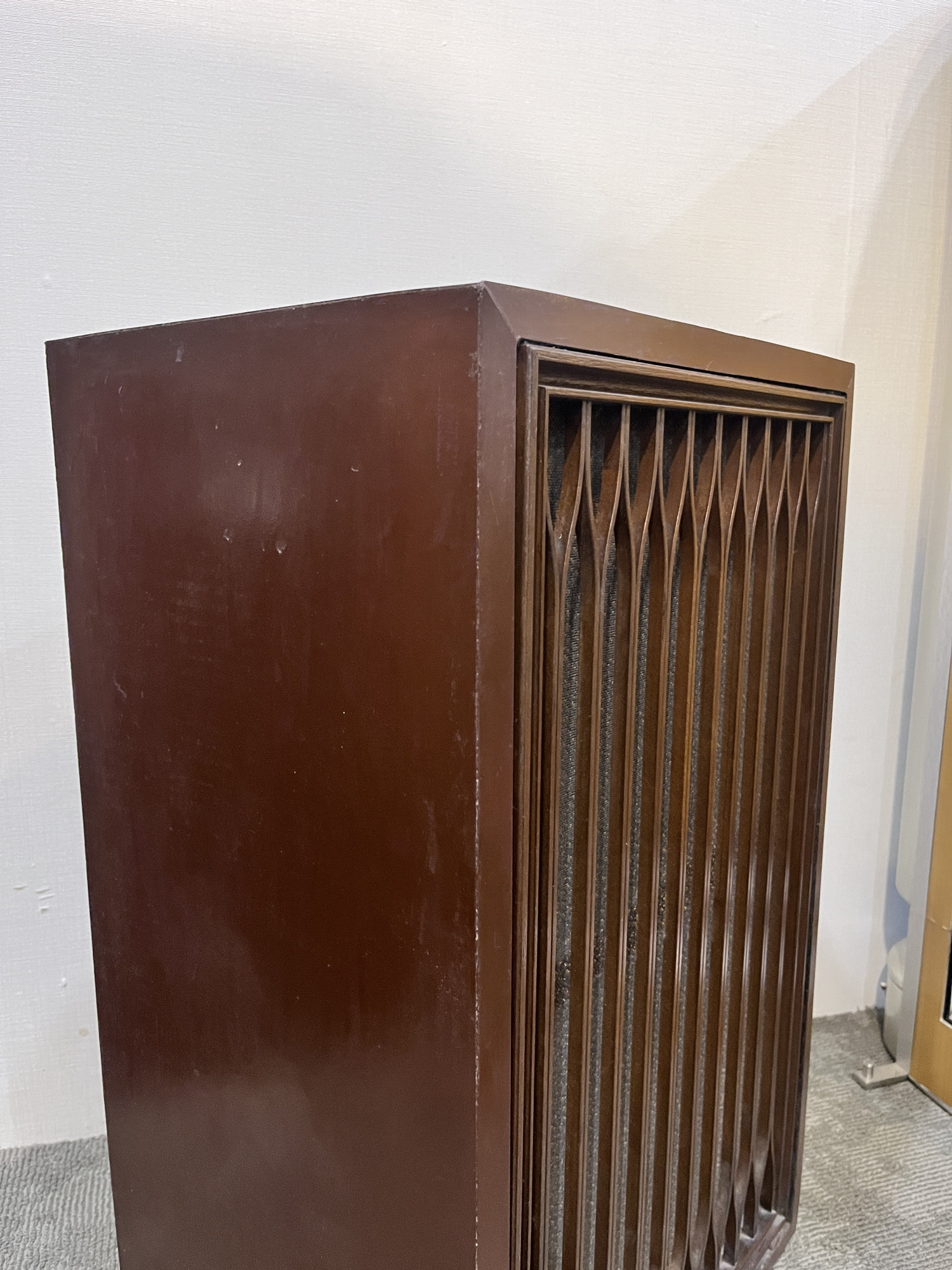

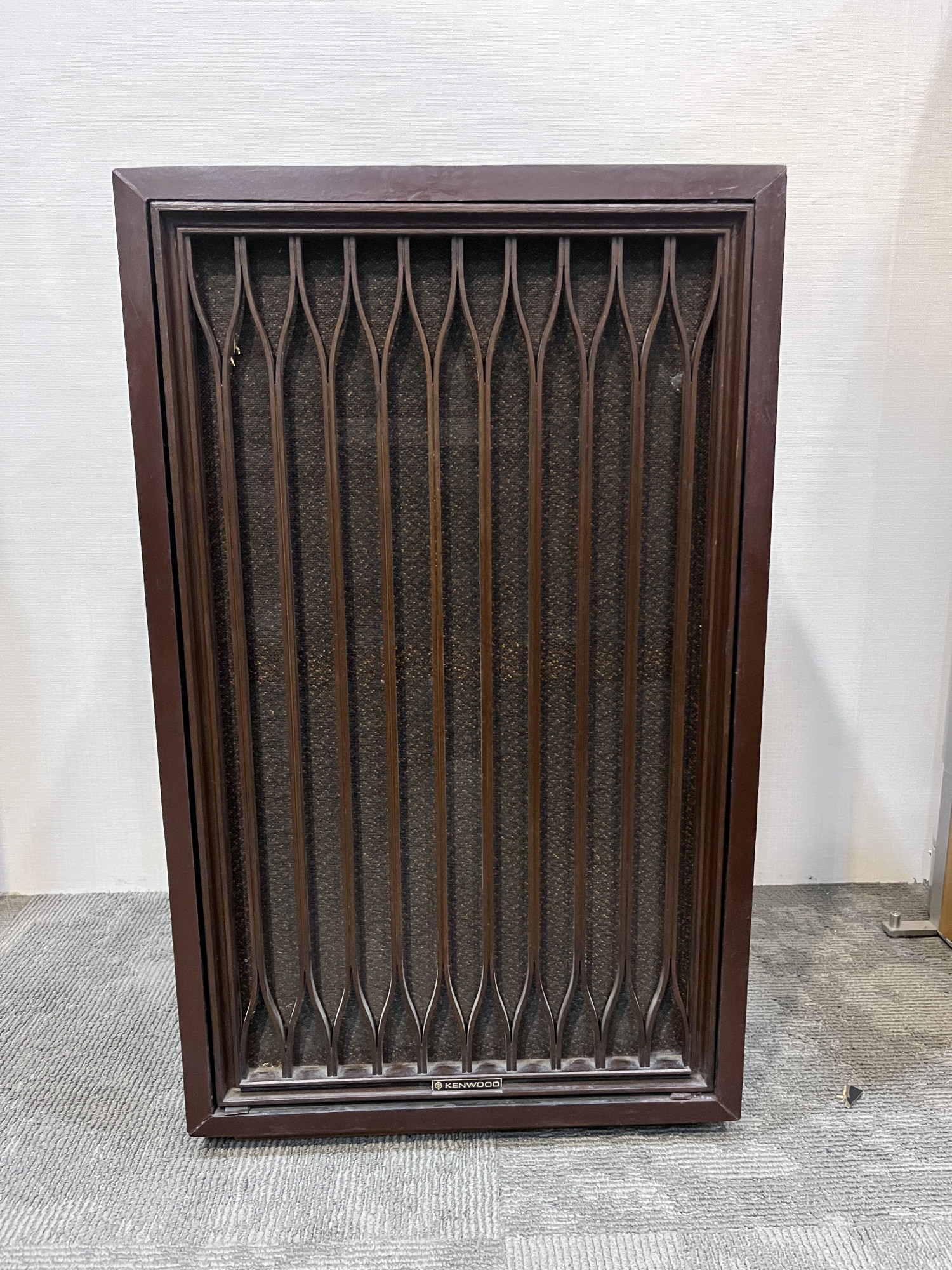

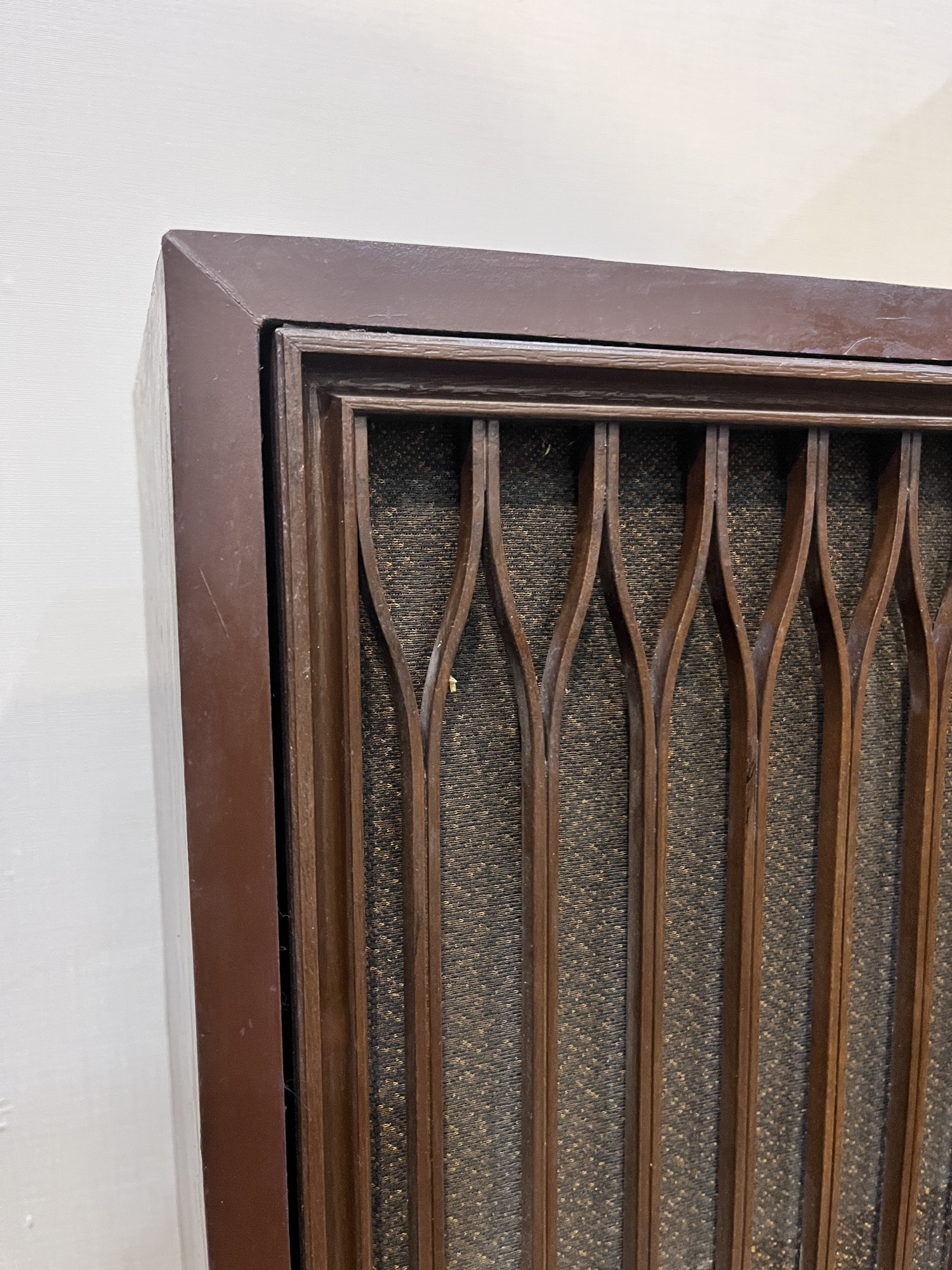

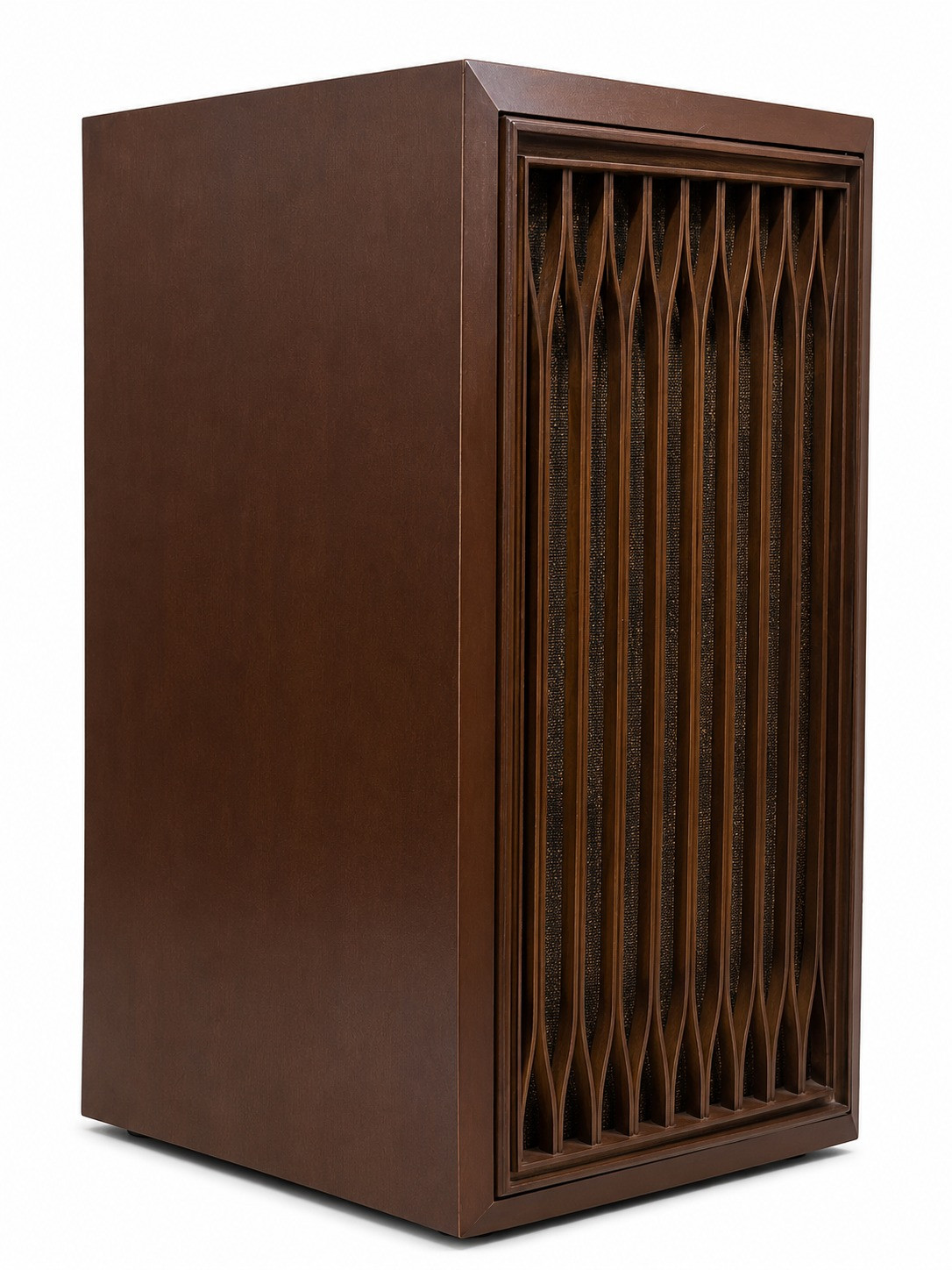

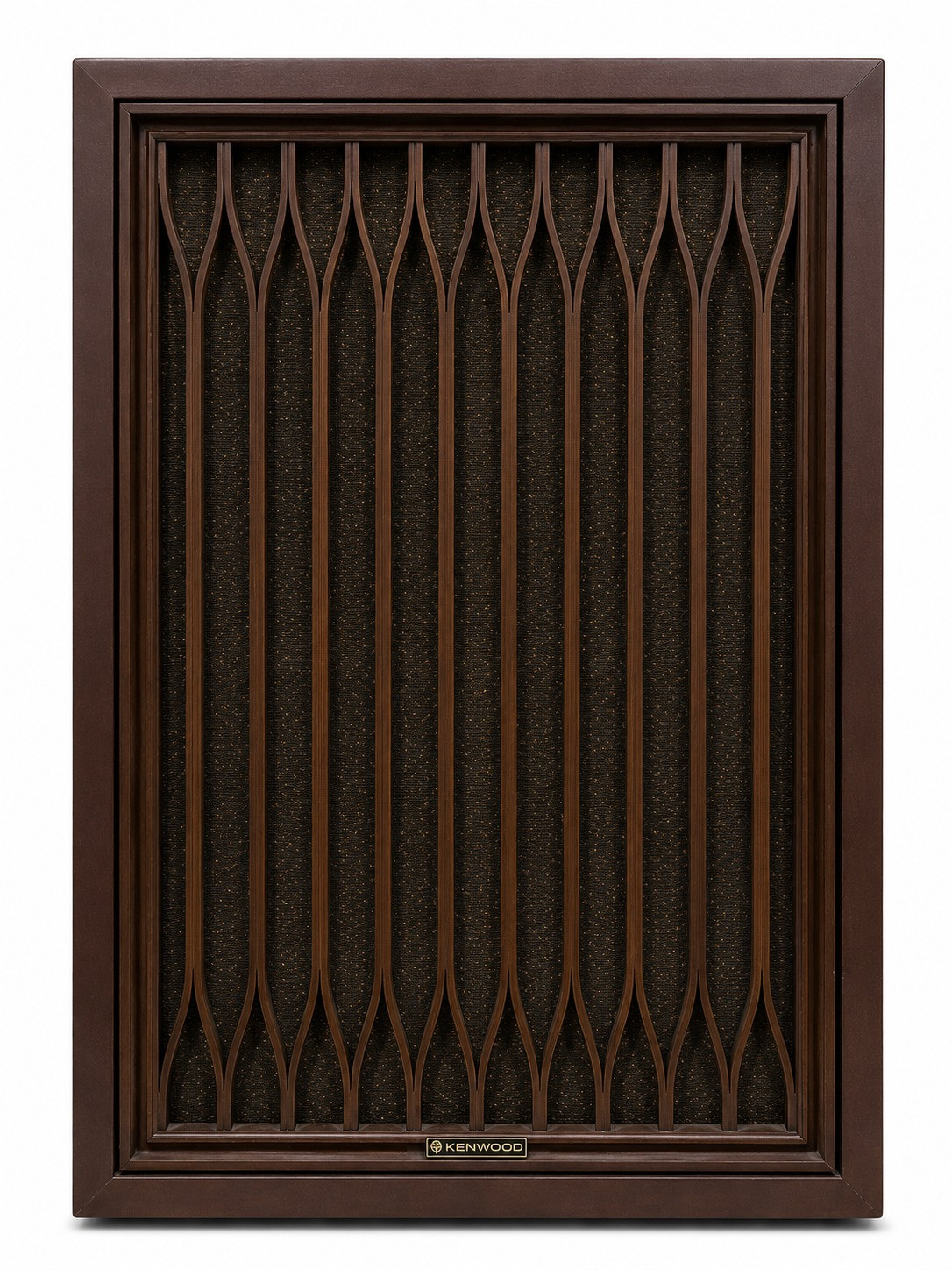

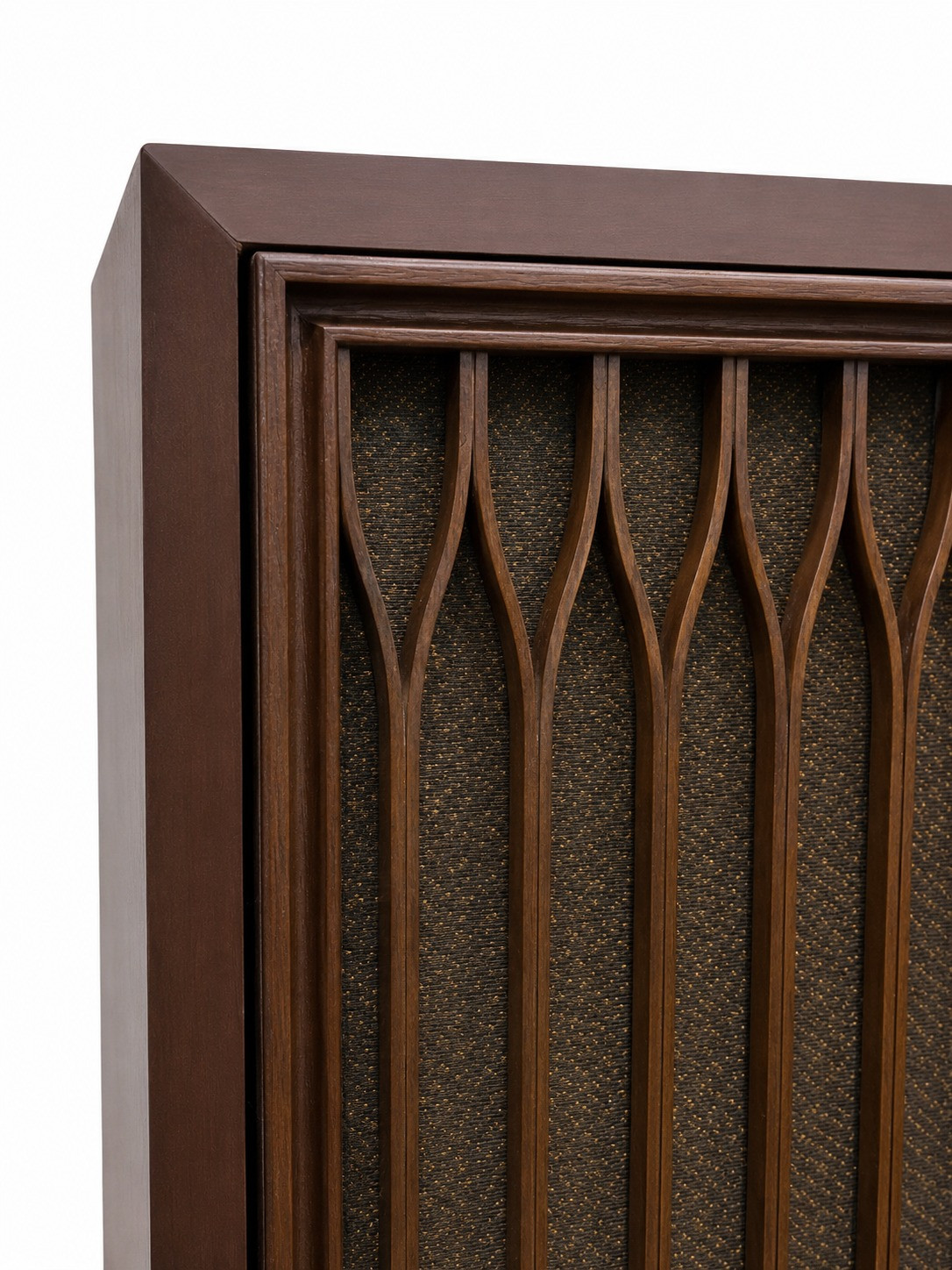

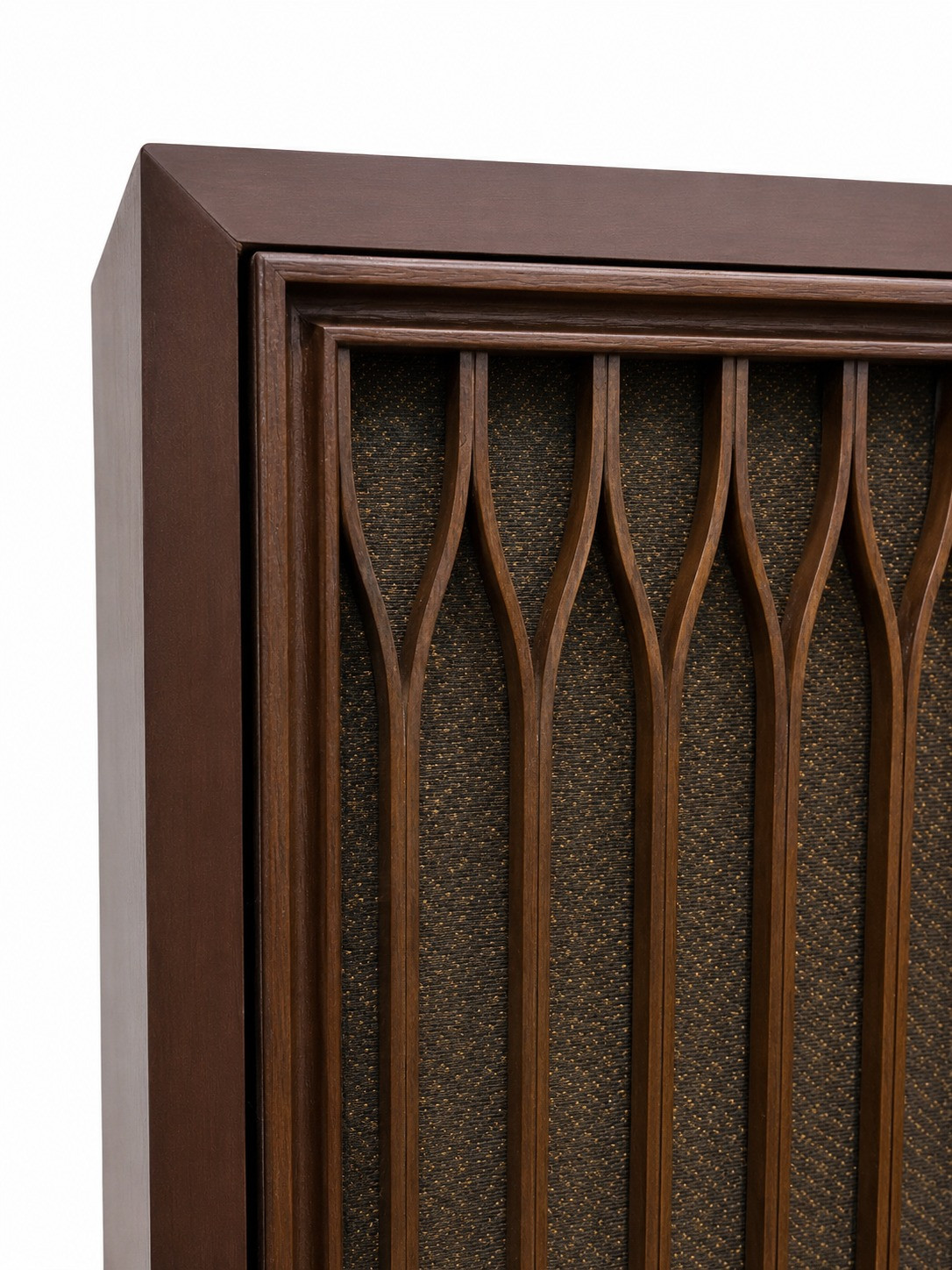

- Vintage Aesthetics: These speakers would have a classic vintage look, often with wood veneer cabinets and removable grilles.
Potential Specifications (Based on similar KL-777 models):
- Type: 4-way or 5-way loudspeaker system
- Woofer: 1 x Large Cone (12" - 16")
- Midrange: 1 or more Cone Drivers (around 5" - 6")
- Tweeter: 1 or more Horn or Cone Tweeters (around 1")
- Super Tweeter: Possibly 1 x Mylar Cone or Horn
- Frequency Response: Could range from 25Hz to 22kHz (depending on the specific model)
- Power Handling: Might be around 100 Watts (RMS) or higher for peak power
- Sensitivity: Likely high, possibly in the range of 98dB to 102dB (1W/1m)

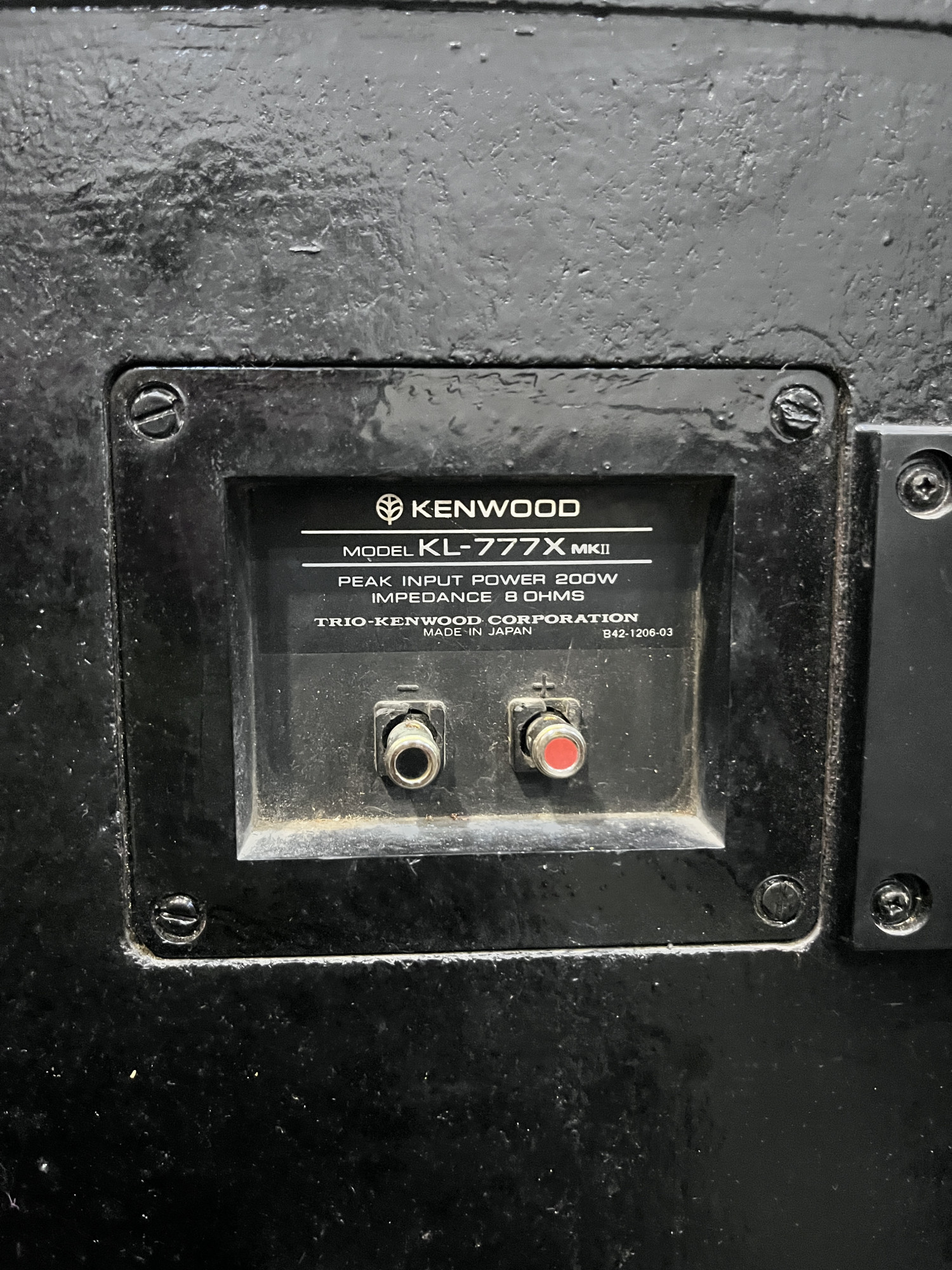

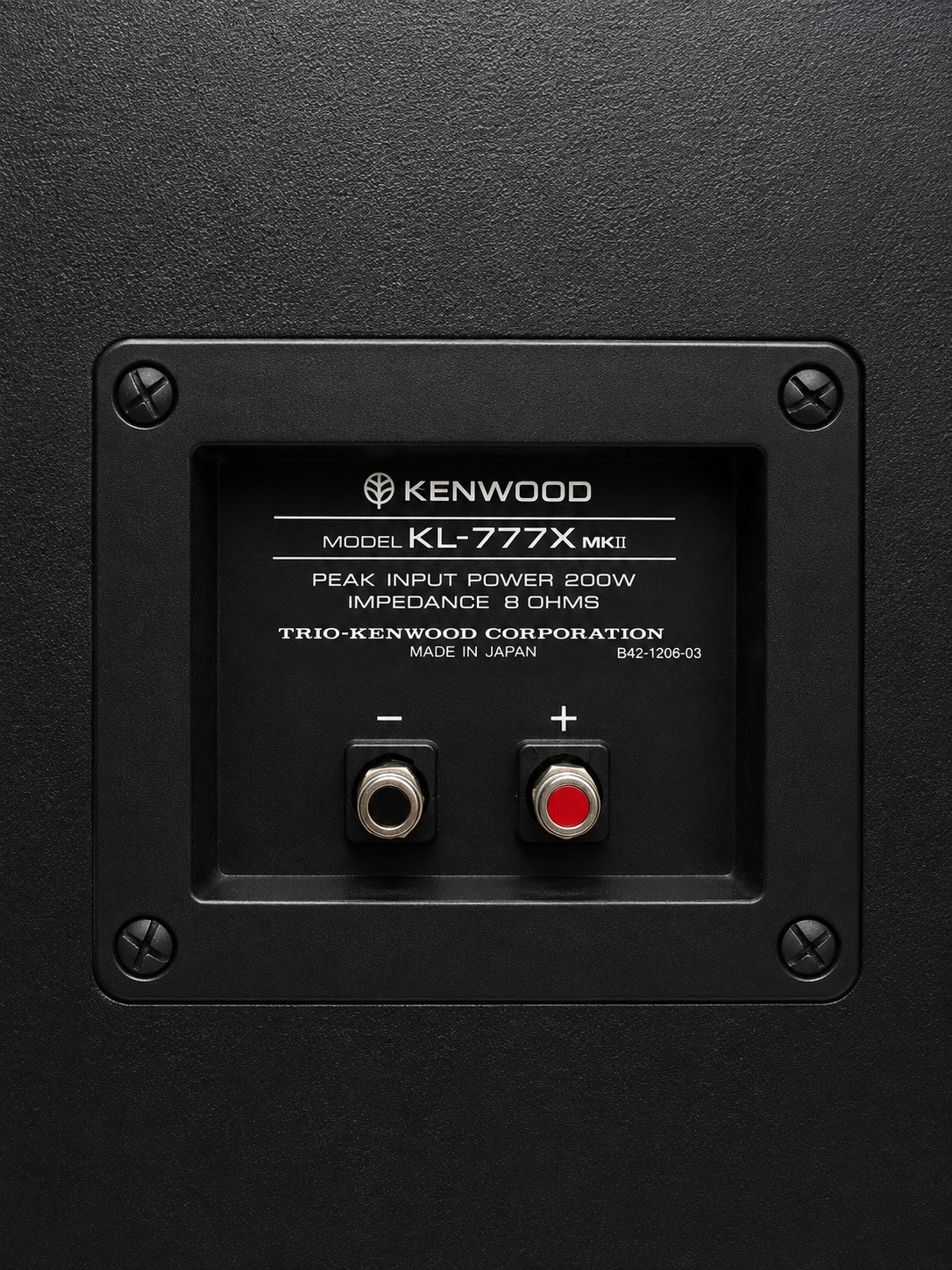

- Impedance: Typically 8 Ohms
- Crossover Frequencies: Multiple crossover points to divide the audio signal between the drivers (e.g., 800Hz, 5000Hz, 10000Hz)
- Enclosure: Acoustic Suspension or Bass Reflex
- Dimensions: Large bookshelf or floorstanding size (e.g., around 17" x 25" x 11")
- Weight: Substantial, possibly around 20-25 kg per speaker
Note: Since the exact specifications for the "MK II" version are elusive, these are educated estimations based on the general characteristics of the Kenwood KL-777 series. There might be variations in driver size, configuration, and specific performance figures for the MK II iteration.
