Onkyo audio video control receiver TX-SV545

Description

The Onkyo TX-SV545 is a 5.1 channel audio/video control receiver designed for home theater systems. It supports Dolby Pro Logic surround sound and offers a range of inputs and outputs for connecting various audio and video components. This receiver aims to provide a solid foundation for a surround sound setup with decent power output for its class. It includes an AM/FM tuner and a phono input, catering to a variety of listening preferences.

Specifications:

• Type: Audio/Video Control Receiver
• Channels: 5.1
• Power Output (8 ohms, 20Hz - 20kHz, 0.08% THD, Stereo): 75 W + 75 W
• Surround Output:
  • Front: 65 W x 2 (8 ohms)
  • Center: 65 W (8 ohms)
  • Rear: 25 W x 2 (8 ohms)
• Total Harmonic Distortion: 0.08% (at rated power, Front)
• Frequency Response: 20 Hz - 30 kHz (+1 dB, -3 dB)
• Damping Factor: 60 (Front)
• Input Sensitivity/Impedance:
  • Phono (MM): 2.5 mV / 50 kohms
  • Line (CD/Tape/Video): 200 mV / 50 kohms
  • Multichannel Input (Front L/R, Surround L/R, Center): 200 mV / 50 kohms
  • Multichannel Input (Subwoofer): 36 mV / 50 kohms
• Output Level/Impedance:
  • Record Out: 200 mV / 2.2 kohms
  • Pre Out: 1 V / 470 ohms
• Signal to Noise Ratio:
  • Phono (MM): 80 dB (IHF-A, 5 mV input)
  • Line: 100 dB (IHF-A)
• Video Connections: Composite In/Out
• Audio Inputs:
  • Phono (MM)
  • CD
  • Tape 1 & 2
  • Video 1, 2, & 3
  • Multichannel Input (5.1)

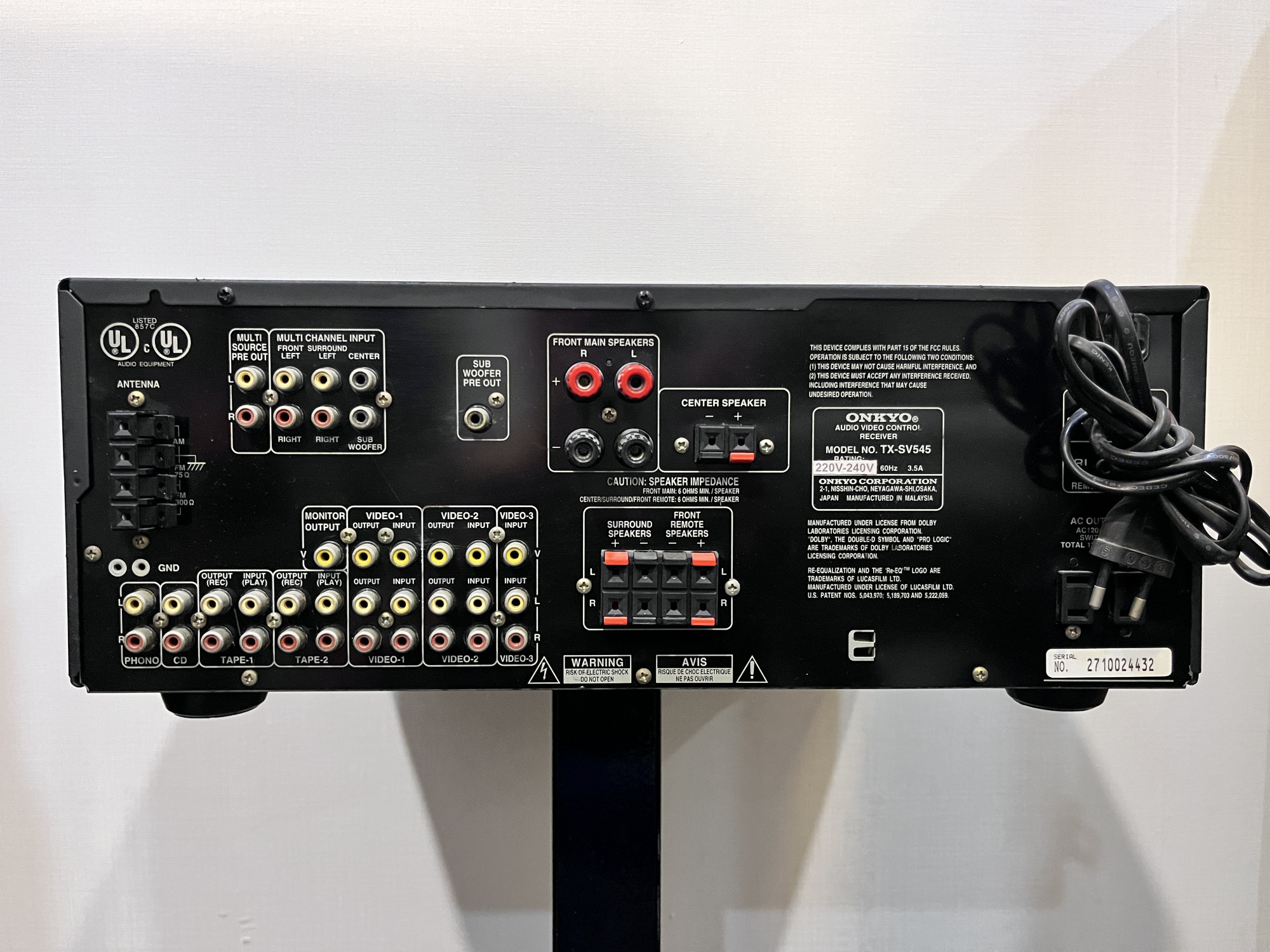

• Audio Outputs:
  • Speaker Outputs (Front L/R, Center, Surround L/R)
  • Subwoofer Pre Out
  • Record Out (Tape)
  • Headphone Jack
• Tuner Section:
  • FM Tuning Range: 87.5 - 108.0 MHz
  • AM Tuning Range: 530 - 1710 kHz (varies by model)
• Remote Control: Yes (typically RC-343M or RC-344S)

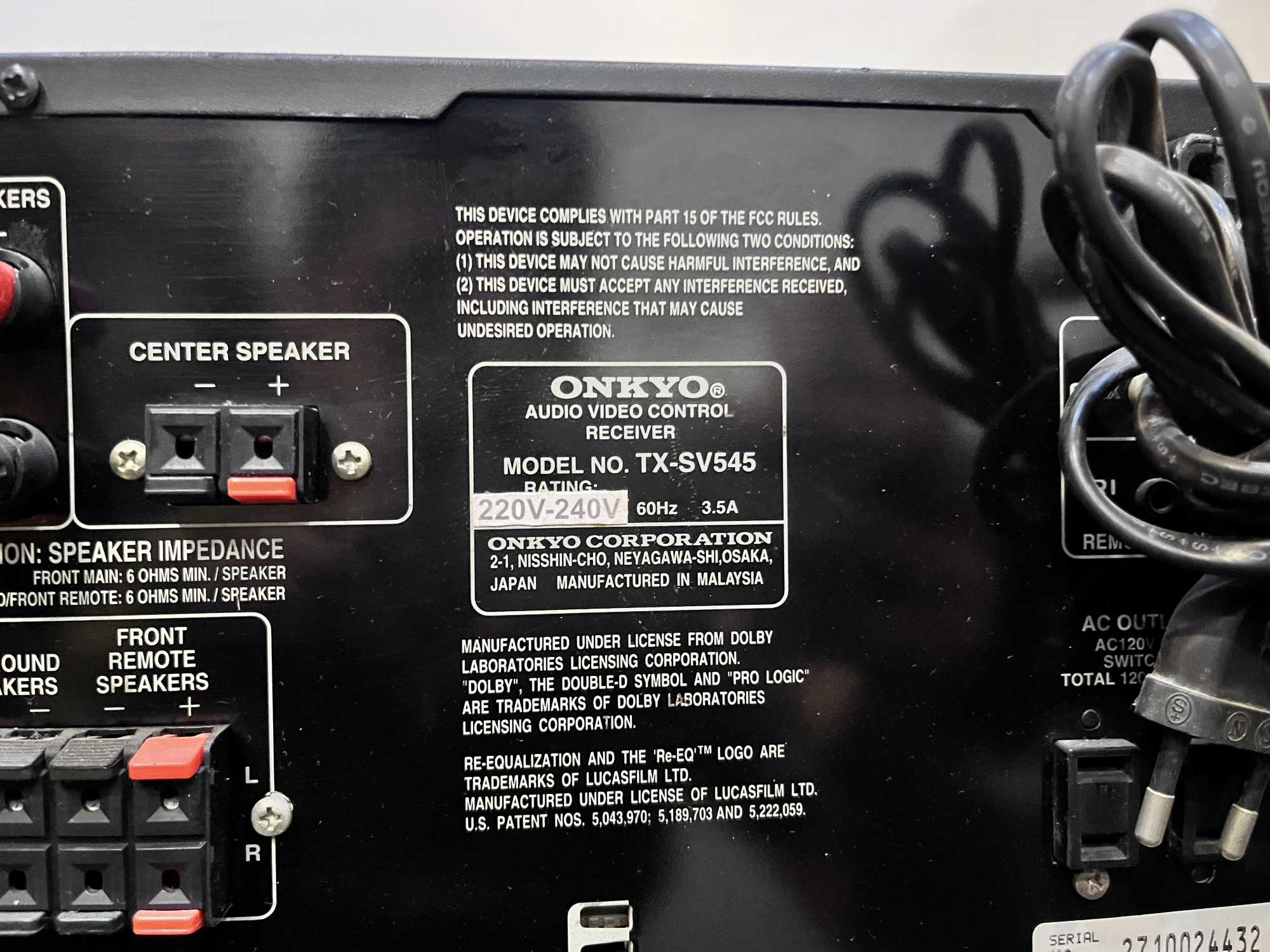

• Power Consumption: 3.5A / 310W (varies by model)
• Dimensions (W x H x D): 435 x 175 x 390 mm
• Weight: 11.7 kg - 12.5 kg (varies by model)
