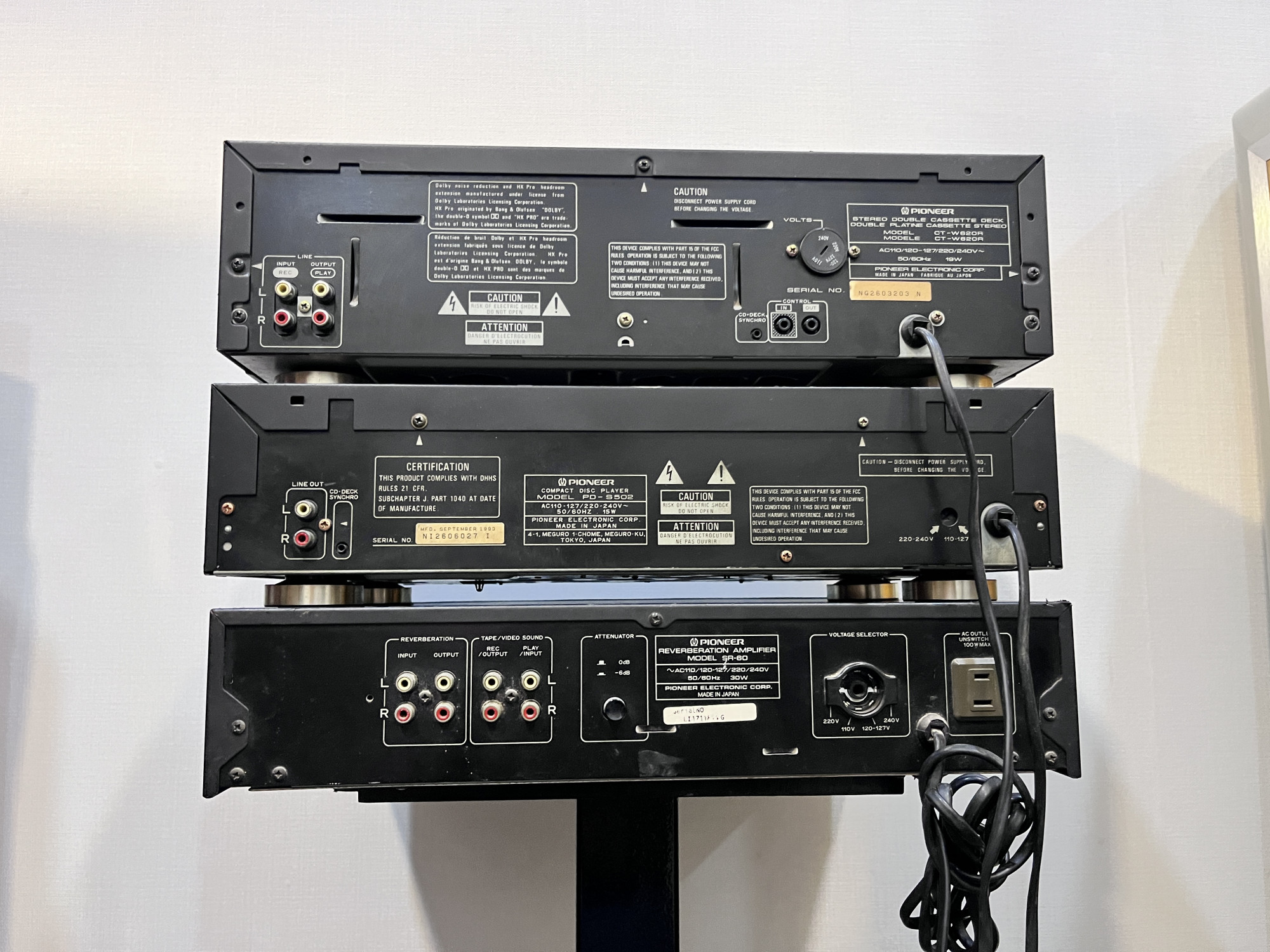

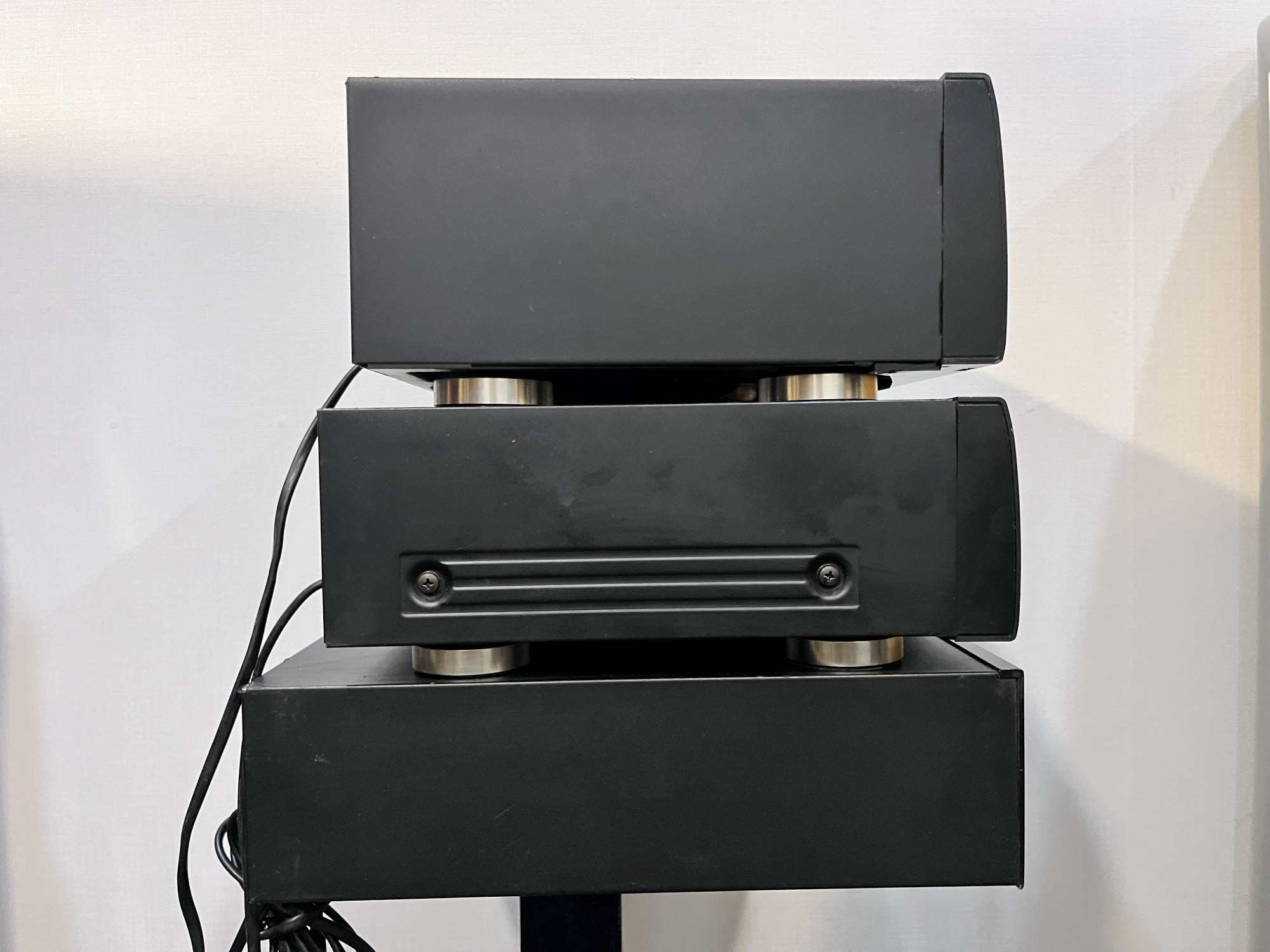

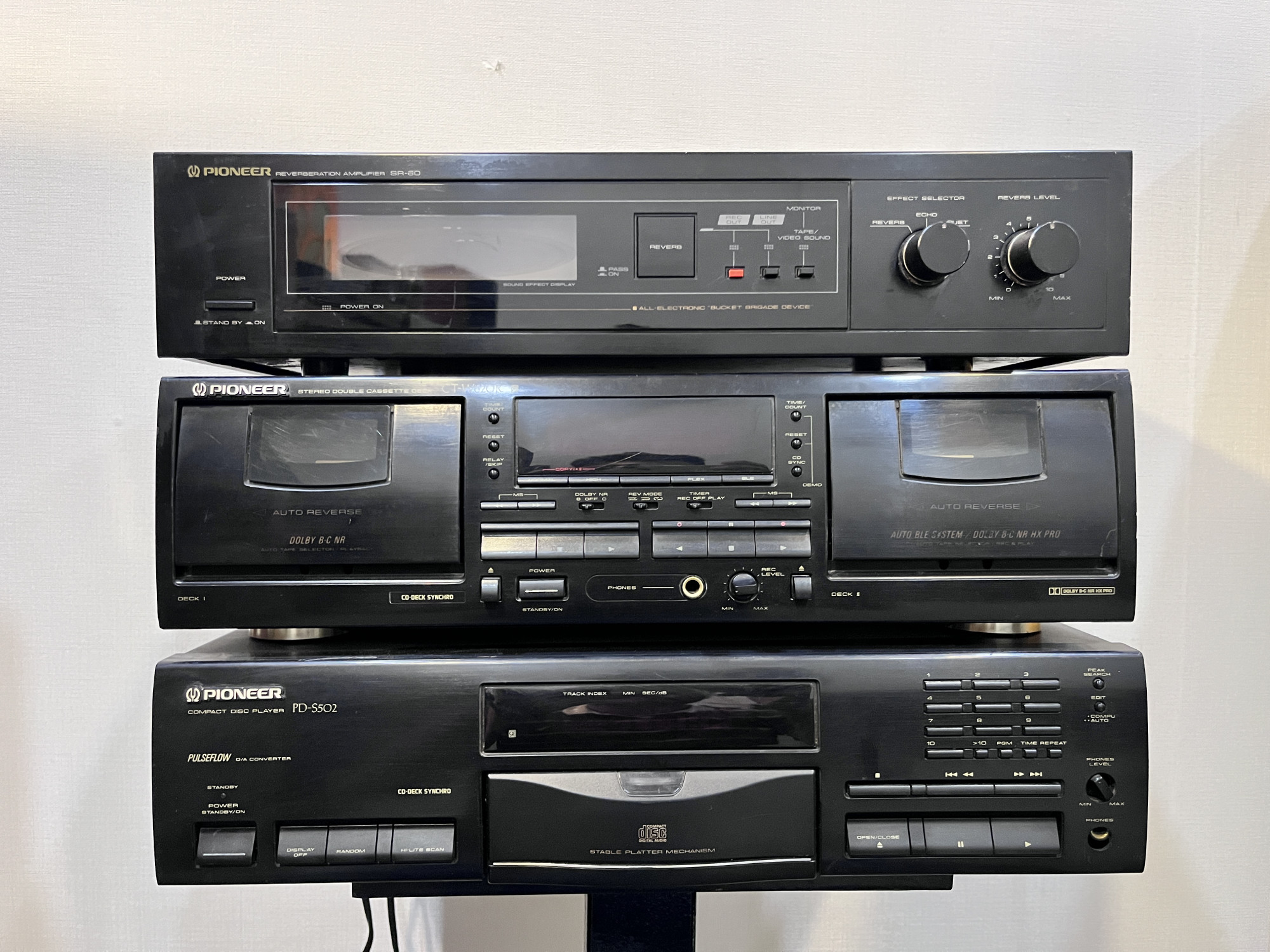

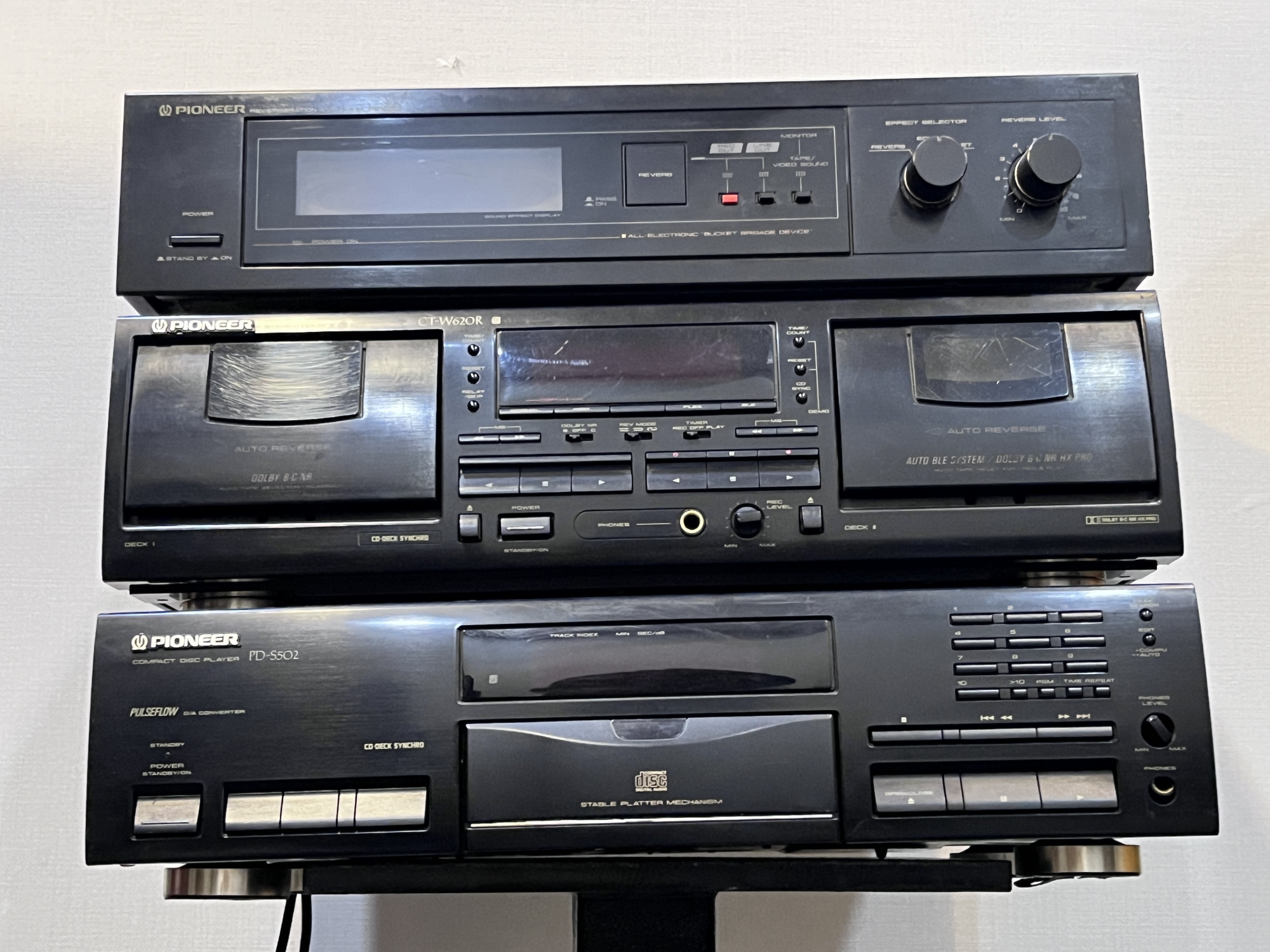

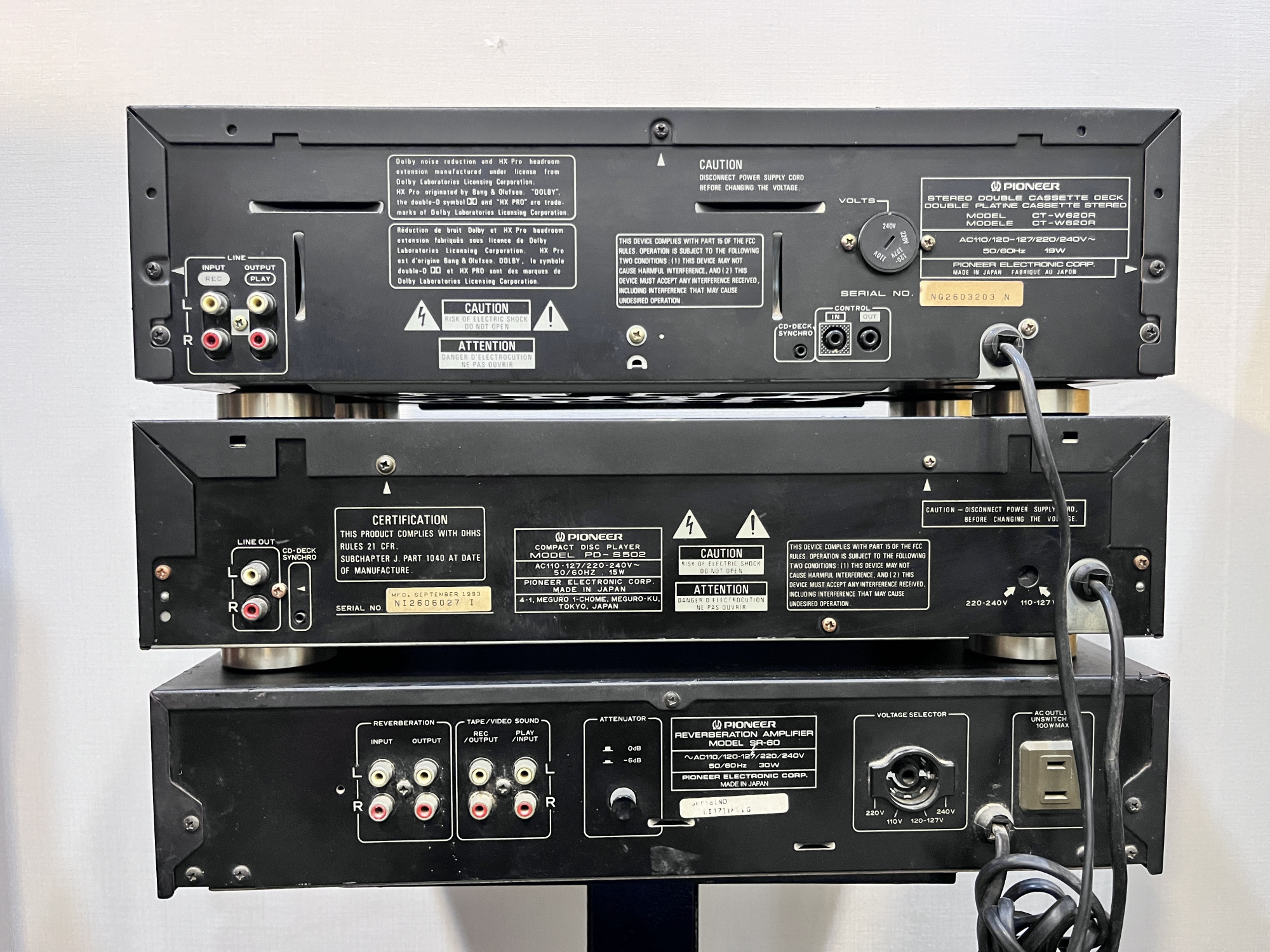

Pioneer CD player PD-S502, double Case deck CT W620R, Reverberation amplifier SR-60

Description

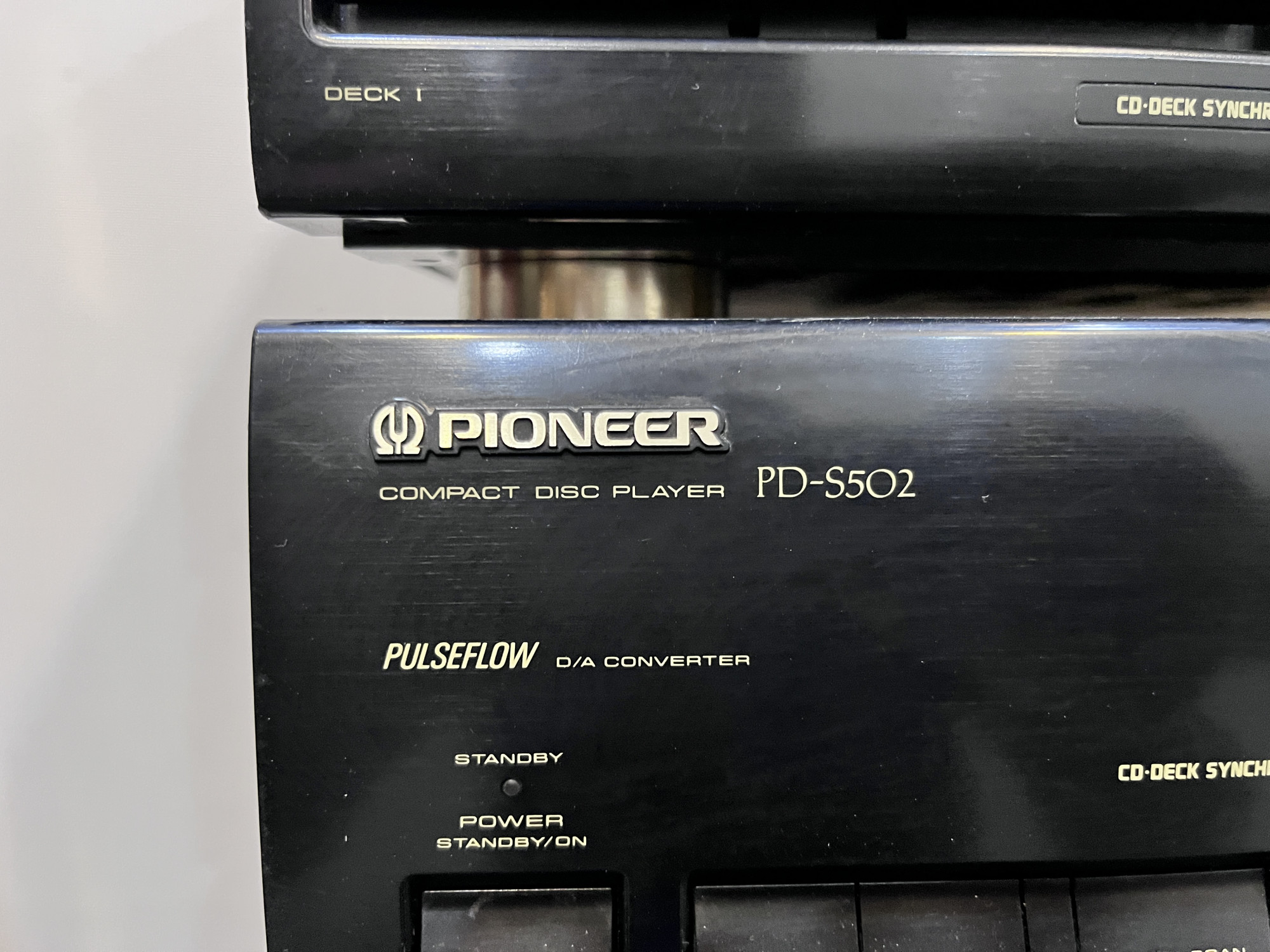

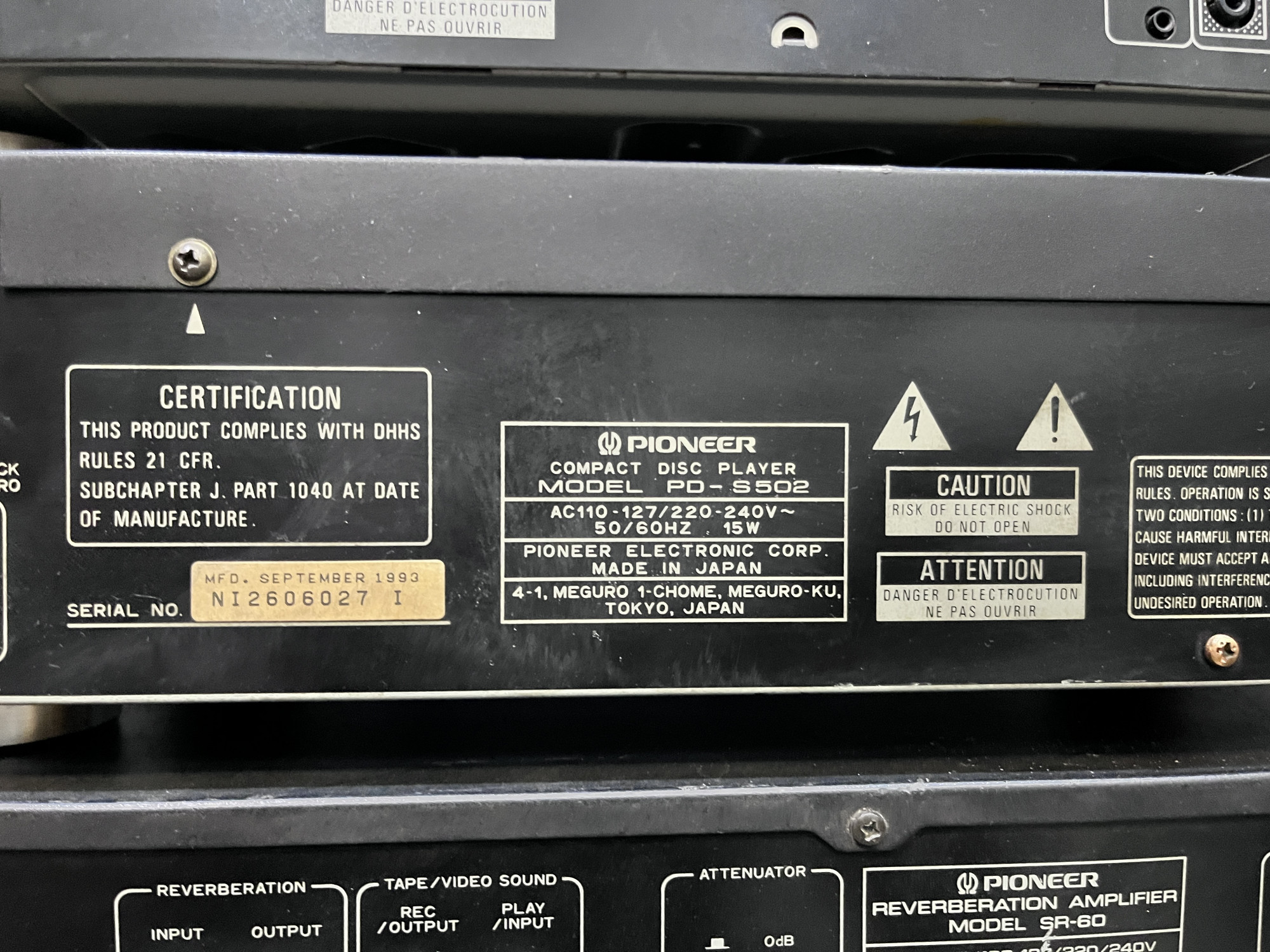

Pioneer CD Player PD-S502

Description:

The Pioneer PD-S502 is a single-disc CD player known for its stable platter mechanism, which contributes to accurate and stable disc playback. It aims to deliver high-fidelity audio reproduction with a focus on minimizing noise and distortion. Features often include a digital-to-analog converter (DAC) for quality audio output and various playback modes.

Specifications (based on available information):

• Type: Single Disc CD Player
• Disc Format: CD
• Frequency Response: 2 Hz to 20 kHz
• Dynamic Range: 96 dB
• Signal-to-Noise Ratio: 110 dB
• Total Harmonic Distortion: 0.0026%
• Line Output Level: 2 V
• Digital Output: Optical
• Headphone Output: Yes, with adjustable level
• Other Features:
  • Stable Platter Mechanism
  • Title Direct Dial
  • Hi-Lite Scan
  • CD Deck Synchro
  • Random Play
• Dimensions (W x H x D): 420 x 125 x 270 mm (approximately)
• Weight: Approximately 4.2 kg

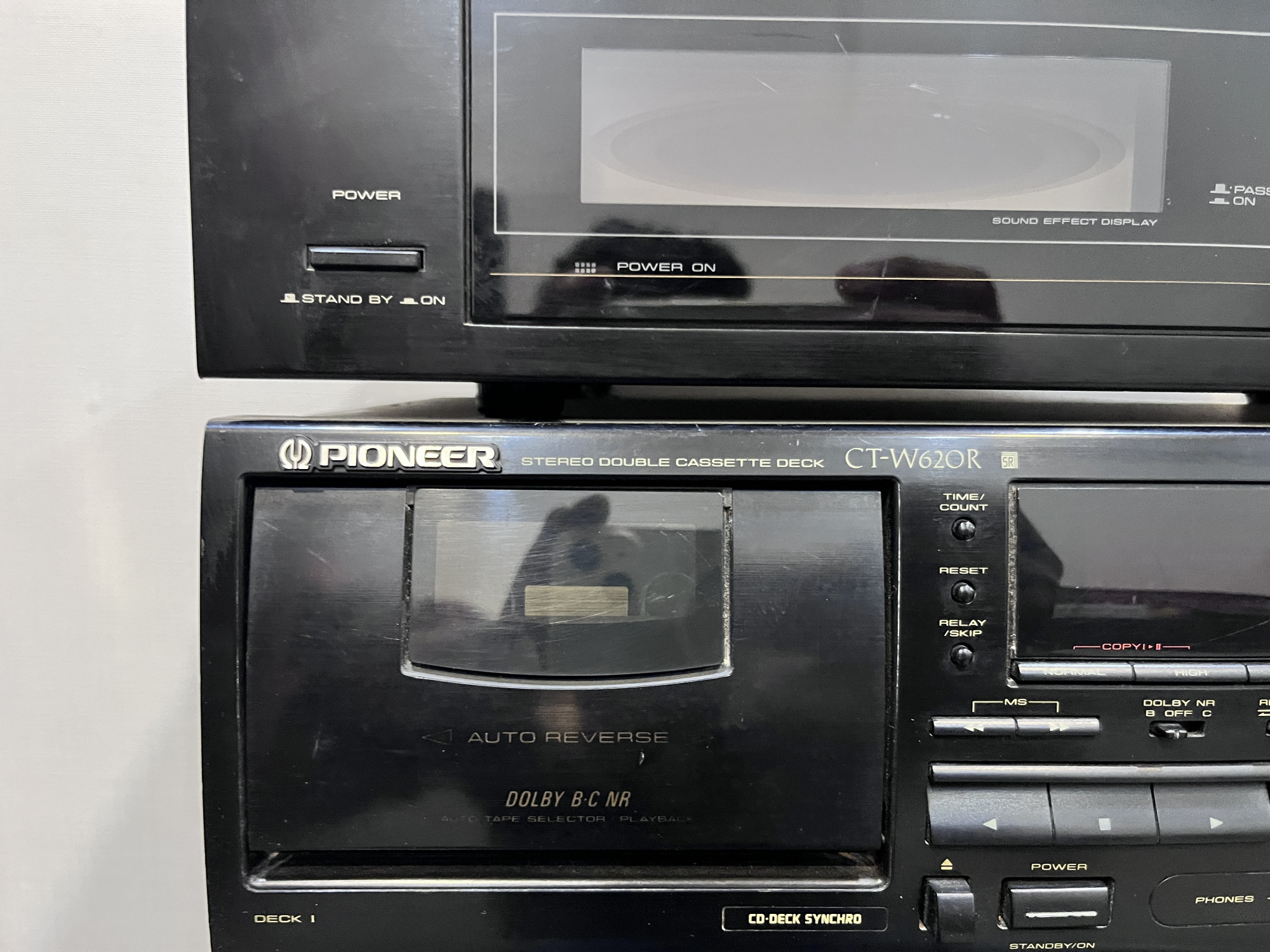

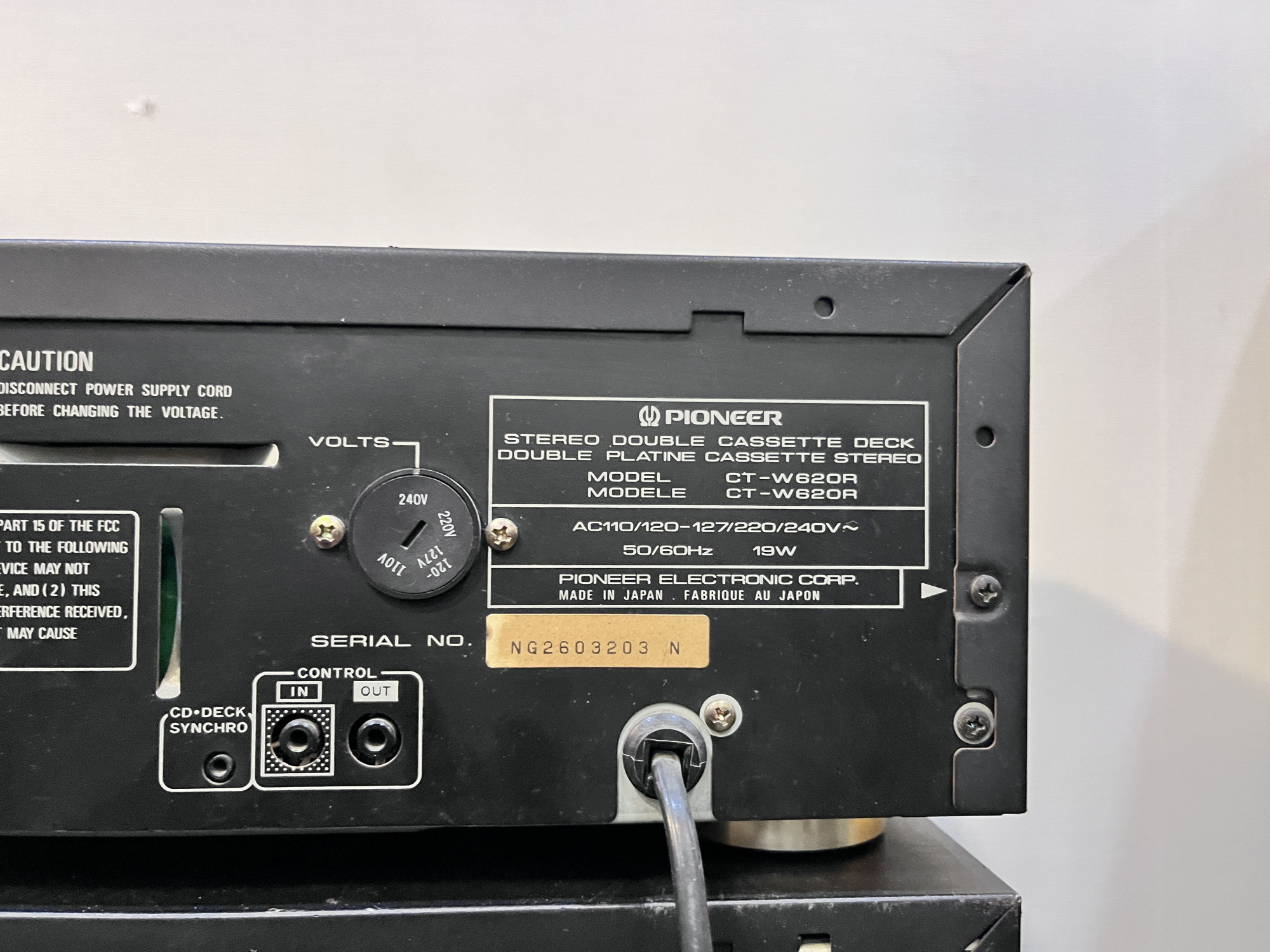

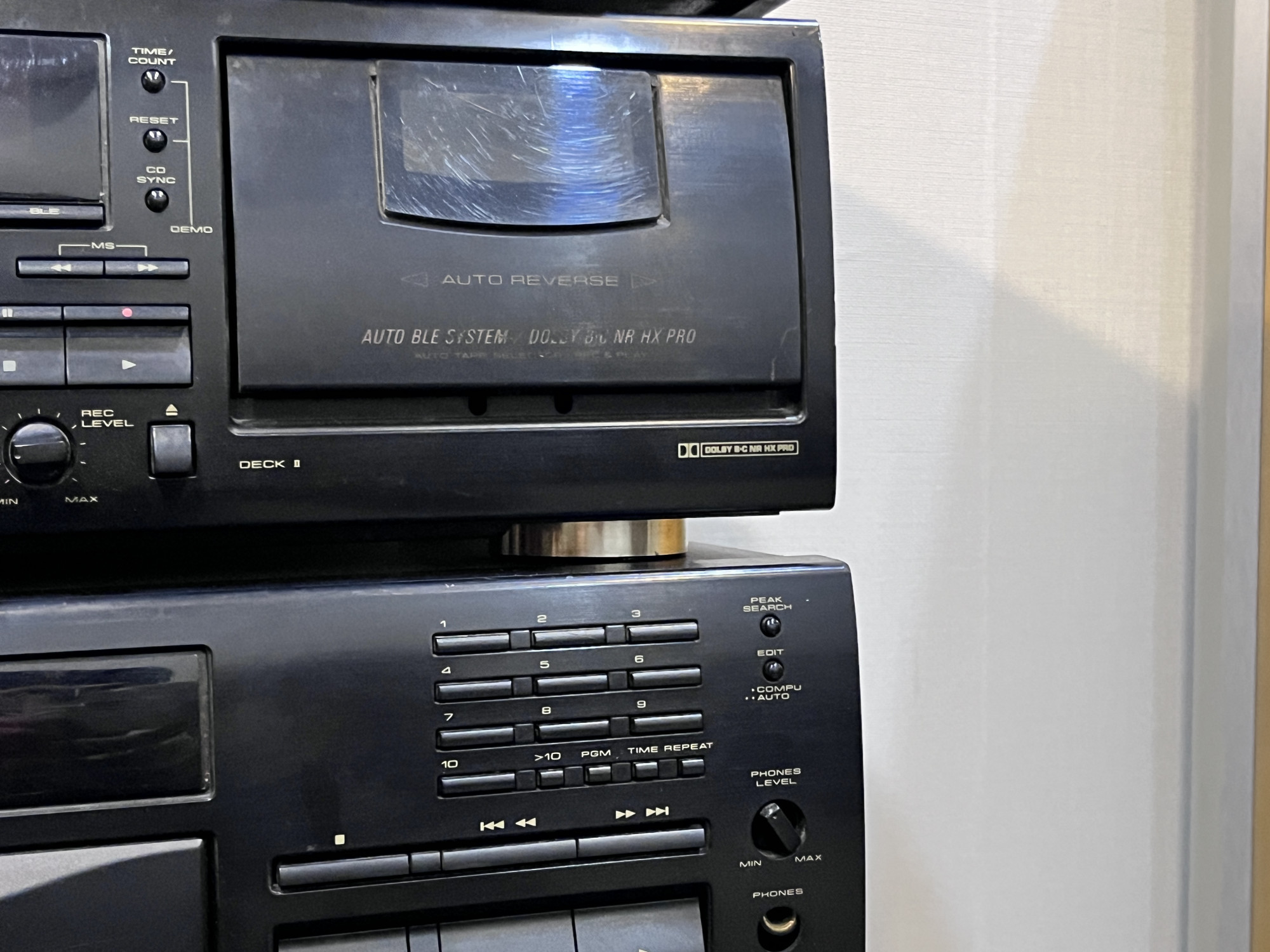

Pioneer Double Cassette Deck CT-W620R

Description:

The Pioneer CT-W620R is a double cassette deck featuring auto-reverse on both decks for continuous playback and recording. It offers convenient features like high-speed dubbing for efficient tape copying and relay play for extended, uninterrupted listening between decks. Noise reduction systems such as Dolby B and C, and possibly Dolby HX Pro, are often included to enhance sound quality.

Specifications (based on available information):

• Type: Auto-Reverse Double Cassette Deck
• Track System: 4-track, 2-channel stereo
• Tape Speed: 4.75 cm/s
• Heads: Typically 2 x record/playback, 2 x erase
• Motor: 2 x DC servo motors
• Noise Reduction: Dolby B, Dolby C (likely), possibly Dolby HX Pro
• Frequency Response (Metal Tape): 25 Hz to 20 kHz (approximate)
• Signal to Noise Ratio (Dolby C): 76 dB (approximate)
• Wow and Flutter: 0.09% WRMS (approximate)
• High-Speed Dubbing: Yes
• Relay Play: Yes
• Auto Reverse: Yes (Both Decks)
• Tape Counter: Digital display
• Input: Line in (RCA)
• Output: Line out (RCA), Headphones
• System Remote Compatibility: Often compatible with Pioneer system remotes.
• Dimensions (W x H x D): 420 x 135 x 250 mm (approximate)
• Weight: Approximately 4.7 kg

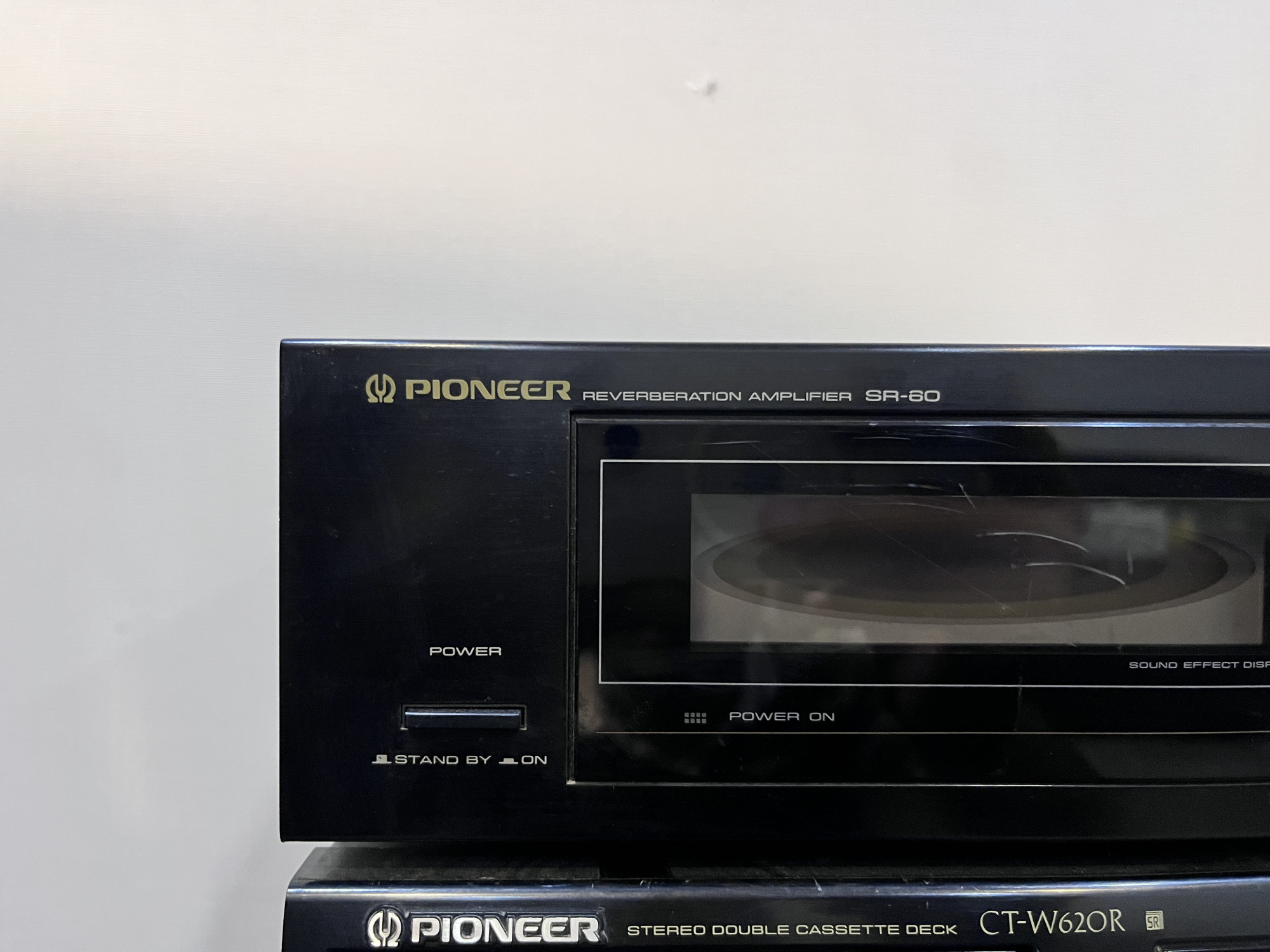

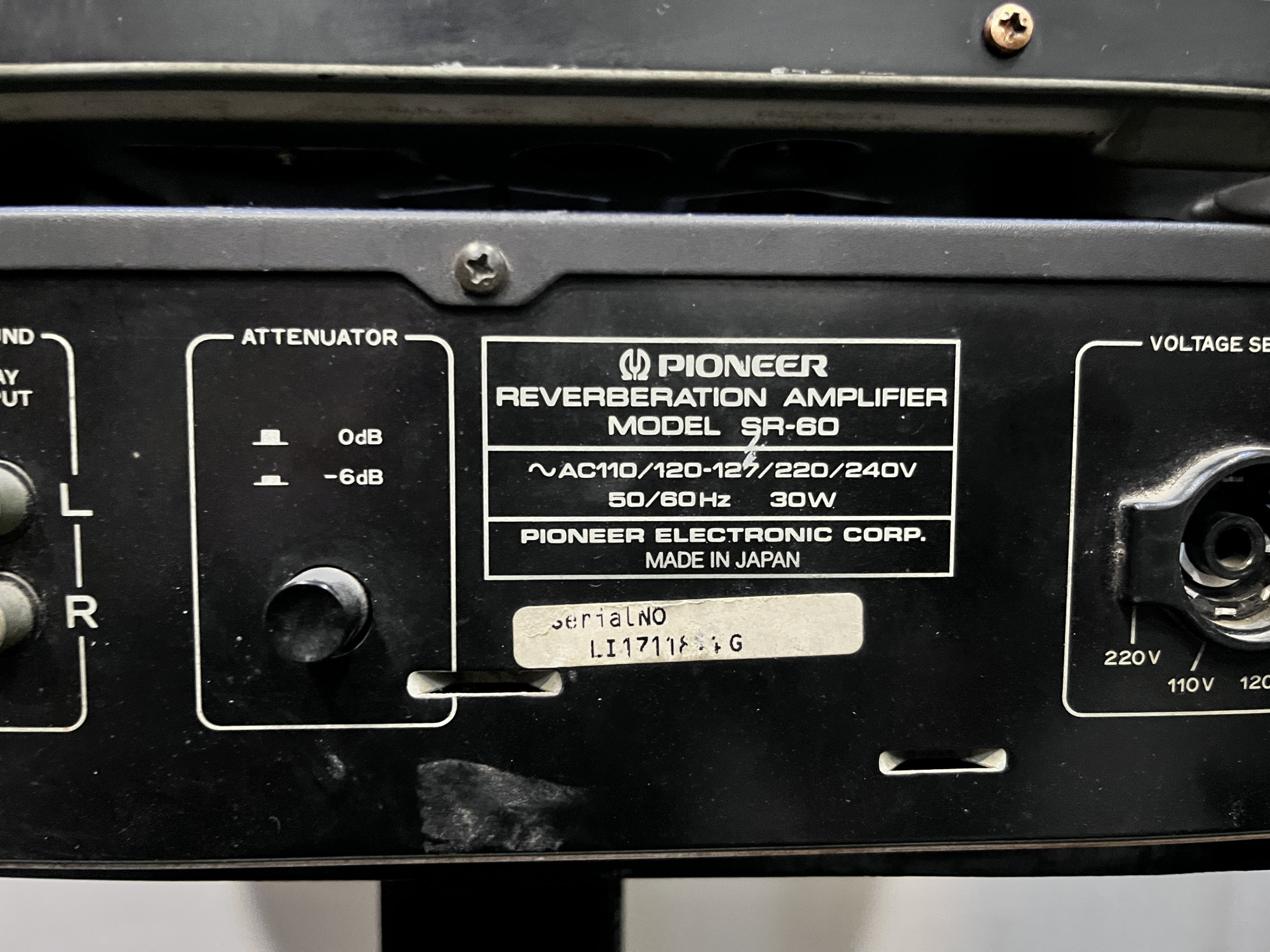

Pioneer Reverberation Amplifier SR-60

Description:

The Pioneer SR-60 is a vintage reverberation amplifier designed to add spatial depth and ambiance to audio signals. It uses a bucket brigade device (BBD) to create echo and reverberation effects, allowing users to adjust the level and decay of the added ambience. It can create effects like standard reverb, echo, and sometimes a "duet" effect.

Specifications (based on available information):

• Type: Reverberation Amplifier
• Effect Type: Reverberation, Echo, Duet
• Technology: Bucket Brigade Device (BBD)
• Input: RCA
• Output: RCA
• Controls: Reverberation Level, Echo Level/Time (likely), other effect parameters
• Power Output (Amplifier Section): While termed an amplifier, its primary function is effect processing, so a significant power output for speakers is unlikely. It's designed to be inserted into the audio signal path. Some models might have a small amplifier section for the reverb effect itself.
• Dimensions (W x H x D): Approximately 435 x 133 x 330 mm (based on similar Pioneer components of the era)
• Weight: Approximately 8 kg
