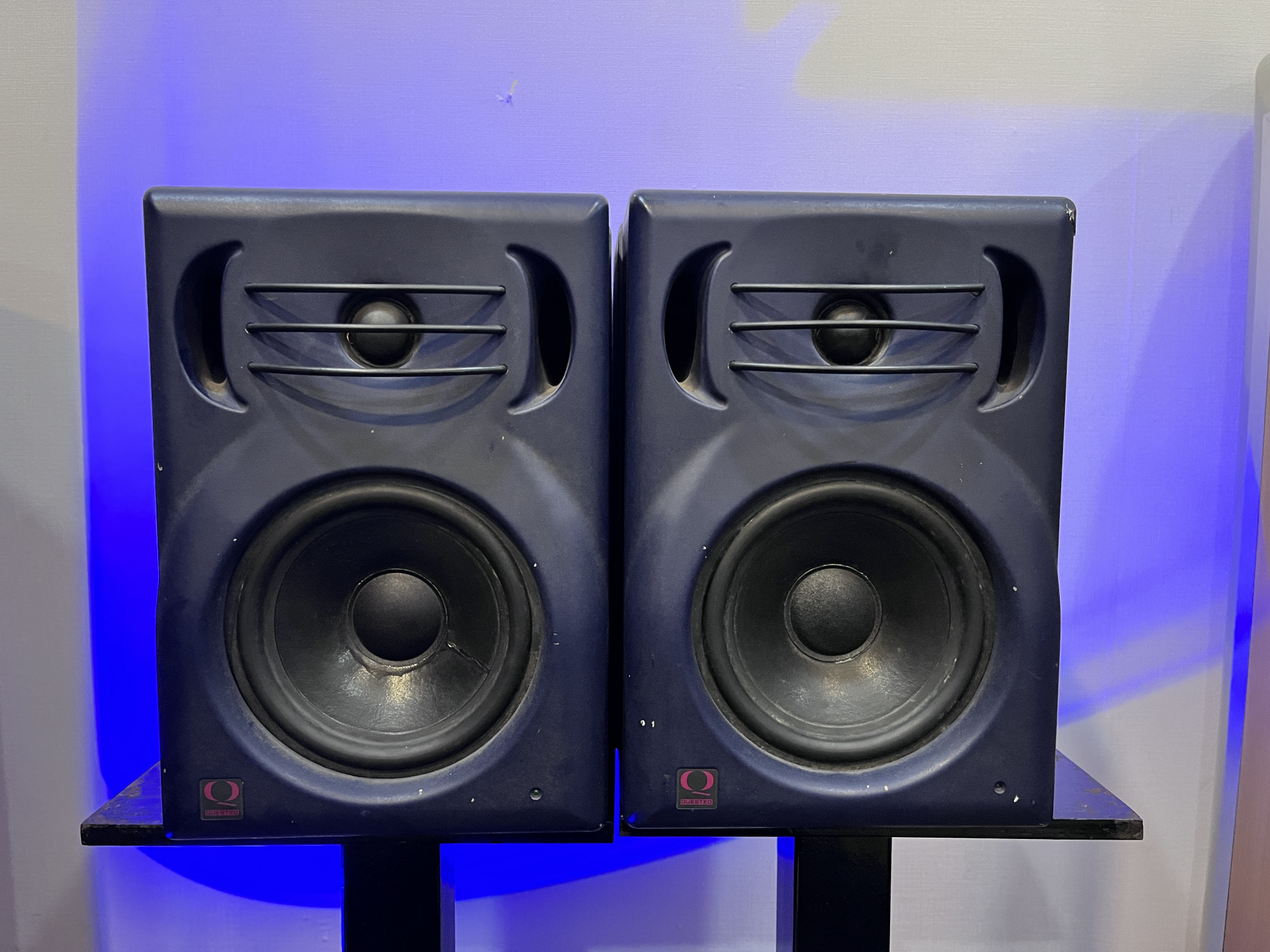

Quested F11 2 way active Monitor Speaker

Description

Quested F11 2-Way Active Monitor Speaker: Full Description and Specifications

The Quested F11 is a compact, high-quality two-way active nearfield studio monitor designed for professional audio applications in small to medium-sized studios, project studios, and mobile recording setups. It's known for its accurate and detailed sound reproduction, wide sweet spot, and robust build quality, making it a reliable tool for recording, mixing, and mastering. Key Specifications:

• Type: 2-way active nearfield monitor
• Low Frequency Driver: 6.5" (165mm) Bass Cone
• High Frequency Driver: 1.1" (28mm) Soft Dome Tweeter
• Amplifier Power:
  • LF Amplifier: 110W RMS
  • HF Amplifier: 40W RMS
  • Total Amplifier Power: 150W RMS
• Crossover Frequency: 1.5kHz
• Frequency Range: 65Hz - 20kHz ±3dB
• Maximum Sound Pressure Level (SPL): > 100dB

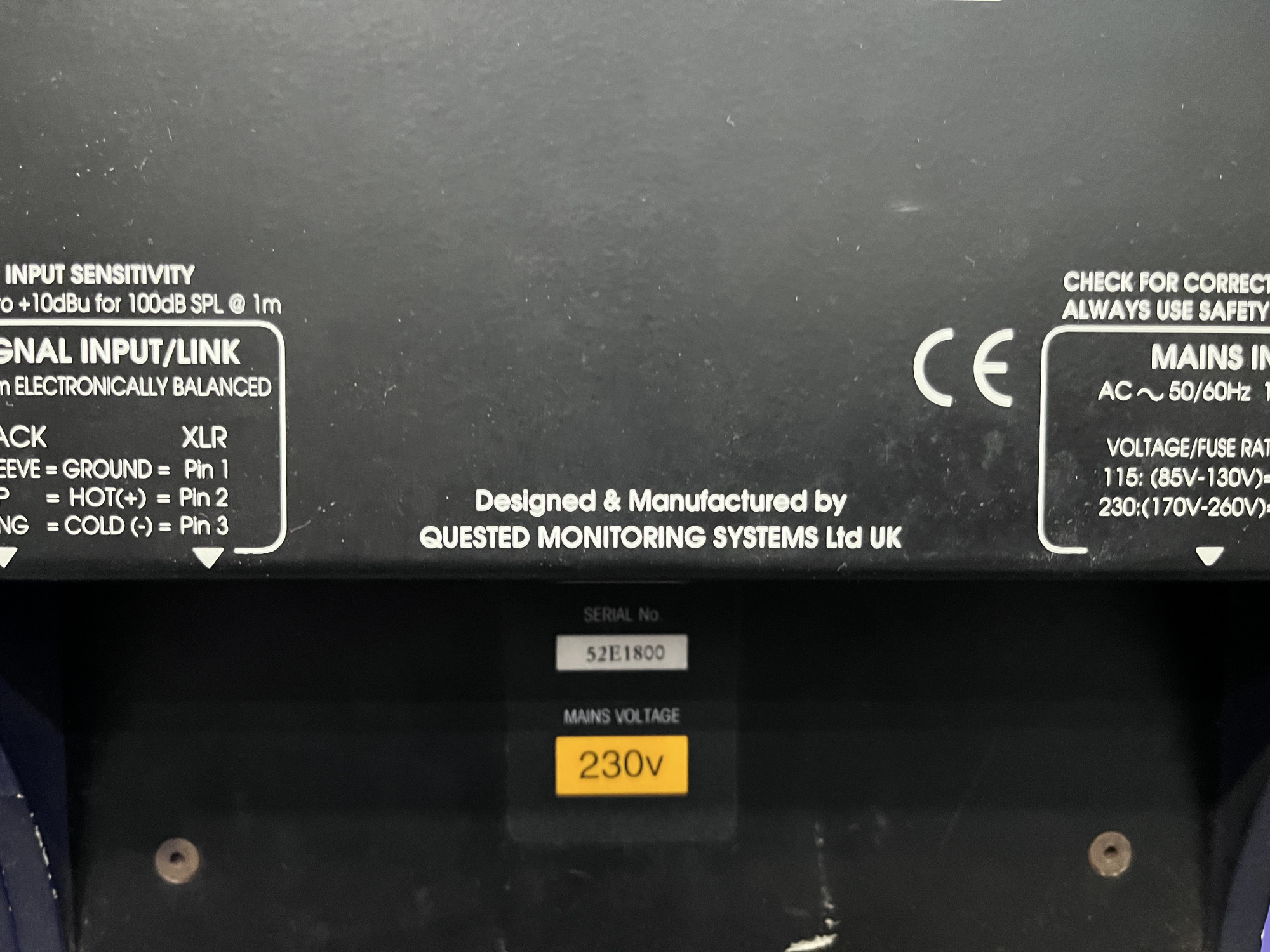

• Inputs:
  • 1 x XLR, electronically balanced
  • 1 x 1/4" TRS, balanced
• Input Impedance: 20 kOhms

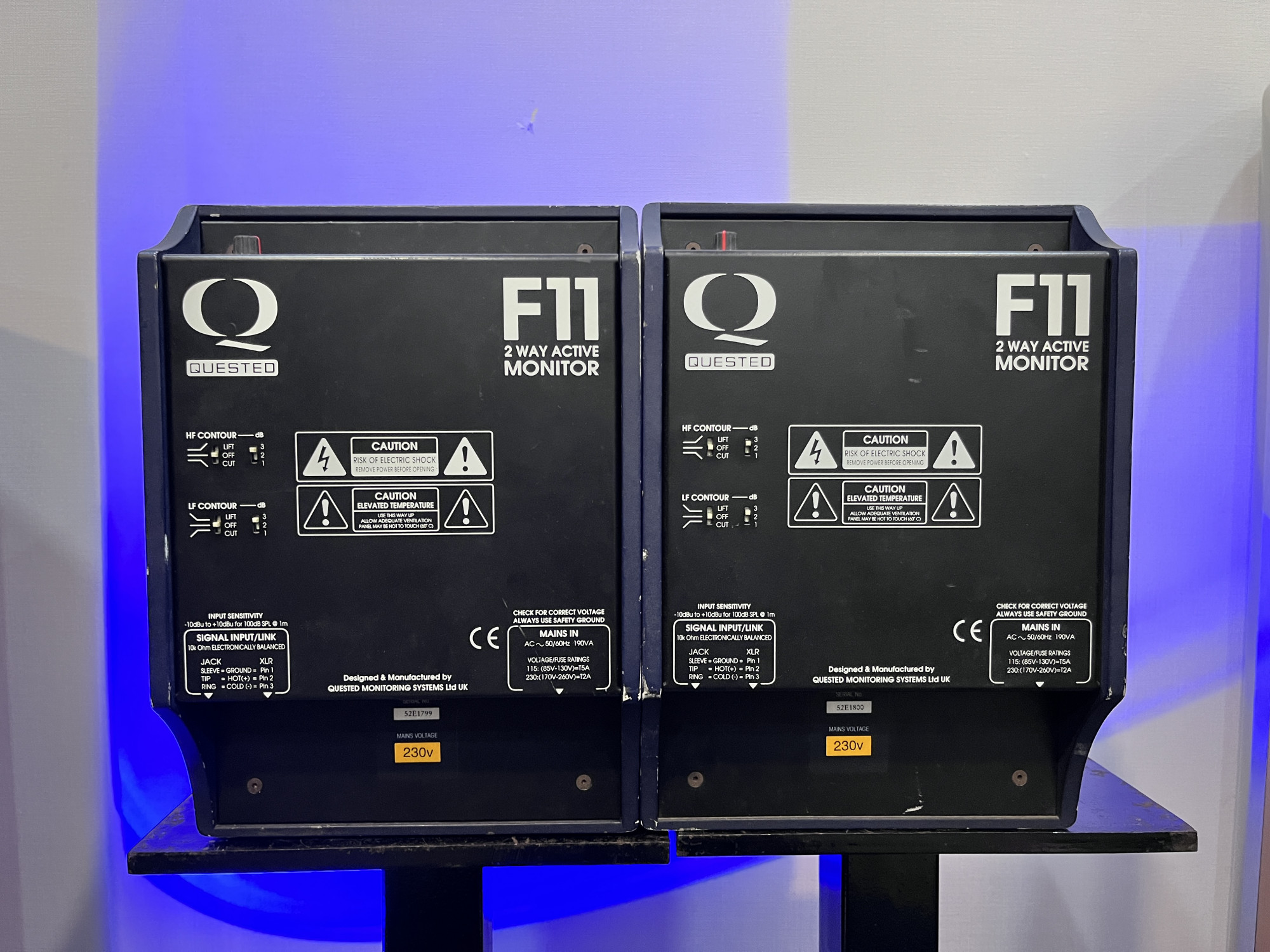

• Controls:
  • Input Gain Control (often detented volume control on top plate of amplifier pack)
  • Subsonic Filter Switch (typically around 50Hz)
  • Ultrasonic Filter Switch (typically around 110kHz)
  • HF Contour Switches (typically ±3dB shelving above 3kHz in steps)
  • LF Contour Switches (typically ±3dB shelving below 300Hz in steps)
  • Power Switch

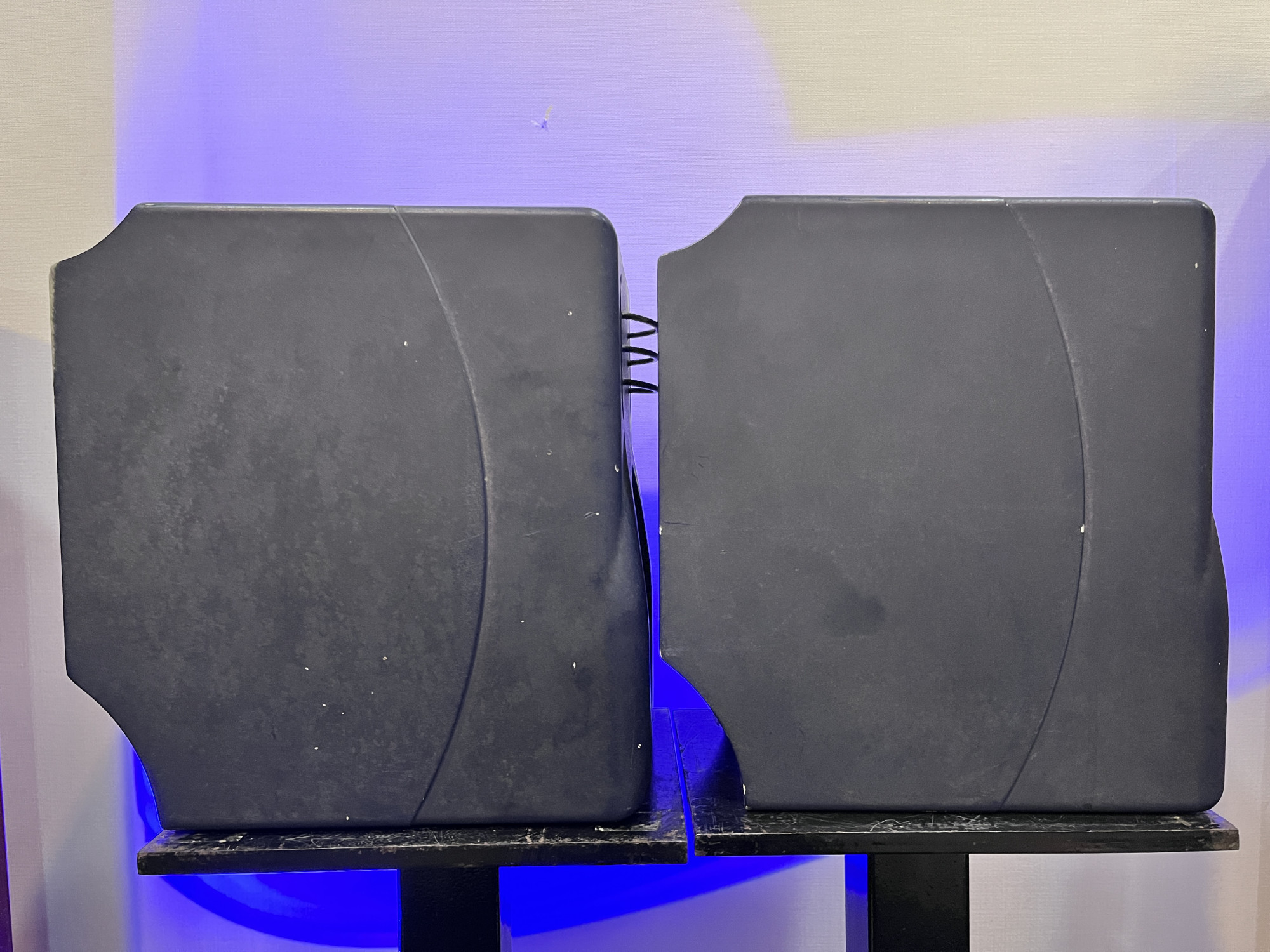

• Cabinet: Magnetically shielded, molded from dense, acoustically inert mineral-loaded polyester composite
• Ports: Front-firing crescent ports
• Dimensions (W x H x D): 225mm x 316mm x 295mm (9" x 12.5" x 11.5")
• Weight: 12.5 kgs (27.5 lbs)

Key Features:

• Active Design: Eliminates the need for an external amplifier, with dedicated amplifiers matched to each driver for optimal performance.
• High-Quality Drivers: Features a Vifa bass driver and a Morel soft dome tweeter for accurate and detailed sound reproduction.
• Wide Sweet Spot: The front cabinet design contributes to excellent imaging across a broader listening area.
• Acoustic Contour Controls: HF and LF contour switches allow for tailoring the speaker's response to match room acoustics and personal preferences.
• Filters: Ultra and subsonic filters provide additional control over the frequency response.
• Robust Cabinet Construction: The dense, molded cabinet minimizes resonance and ensures accurate sound.
• Magnetically Shielded: Enables safe use near video monitors without causing interference.
• Versatile Connectivity: Offers both XLR and TRS inputs for compatibility with professional audio equipment.
• Daisy-Chaining Capability: Parallel inputs allow for easy connection of multiple F11s in multi-speaker installations.
• Protection Circuitry: Built-in protection for the amplifiers and drivers.
