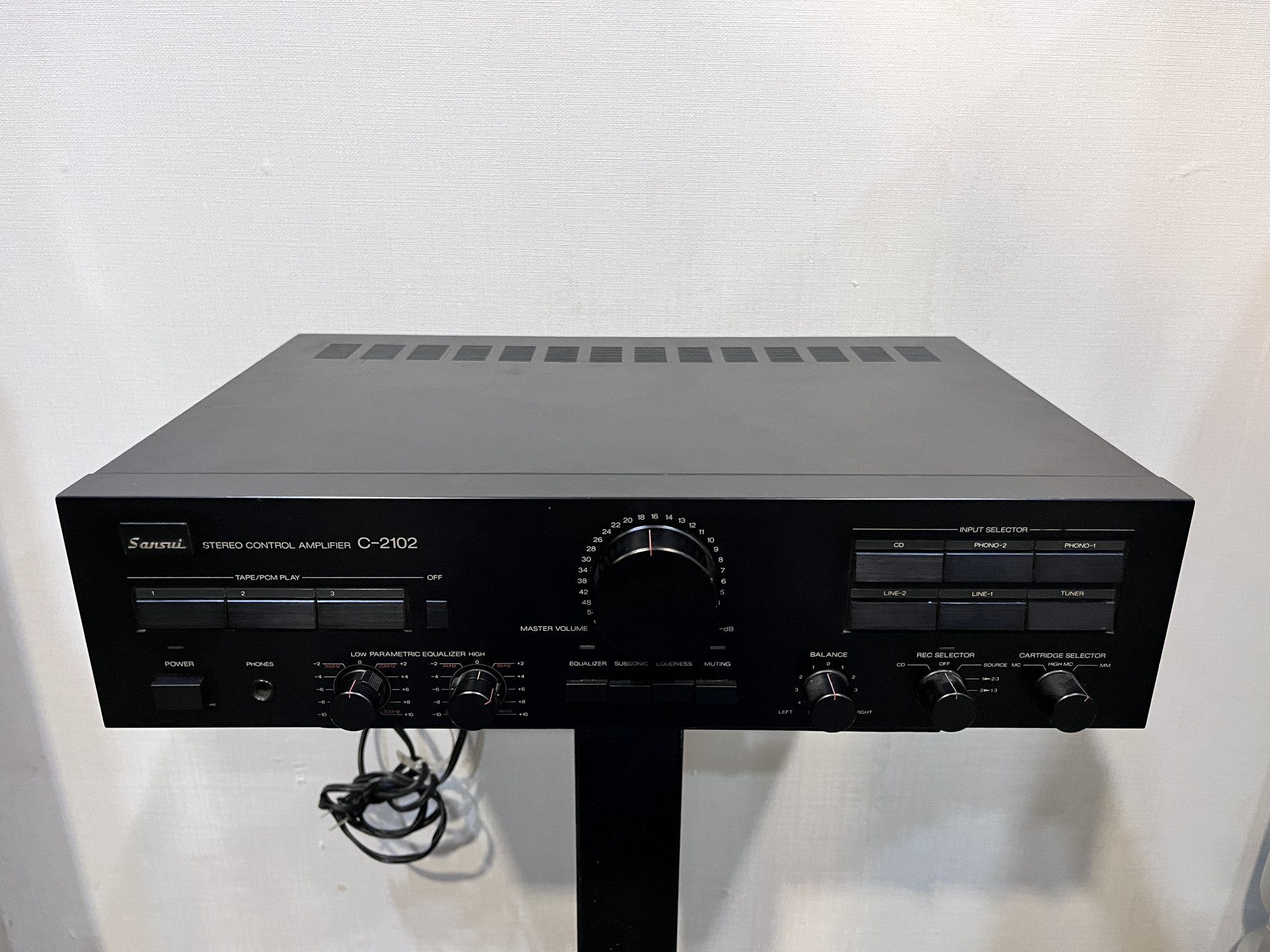

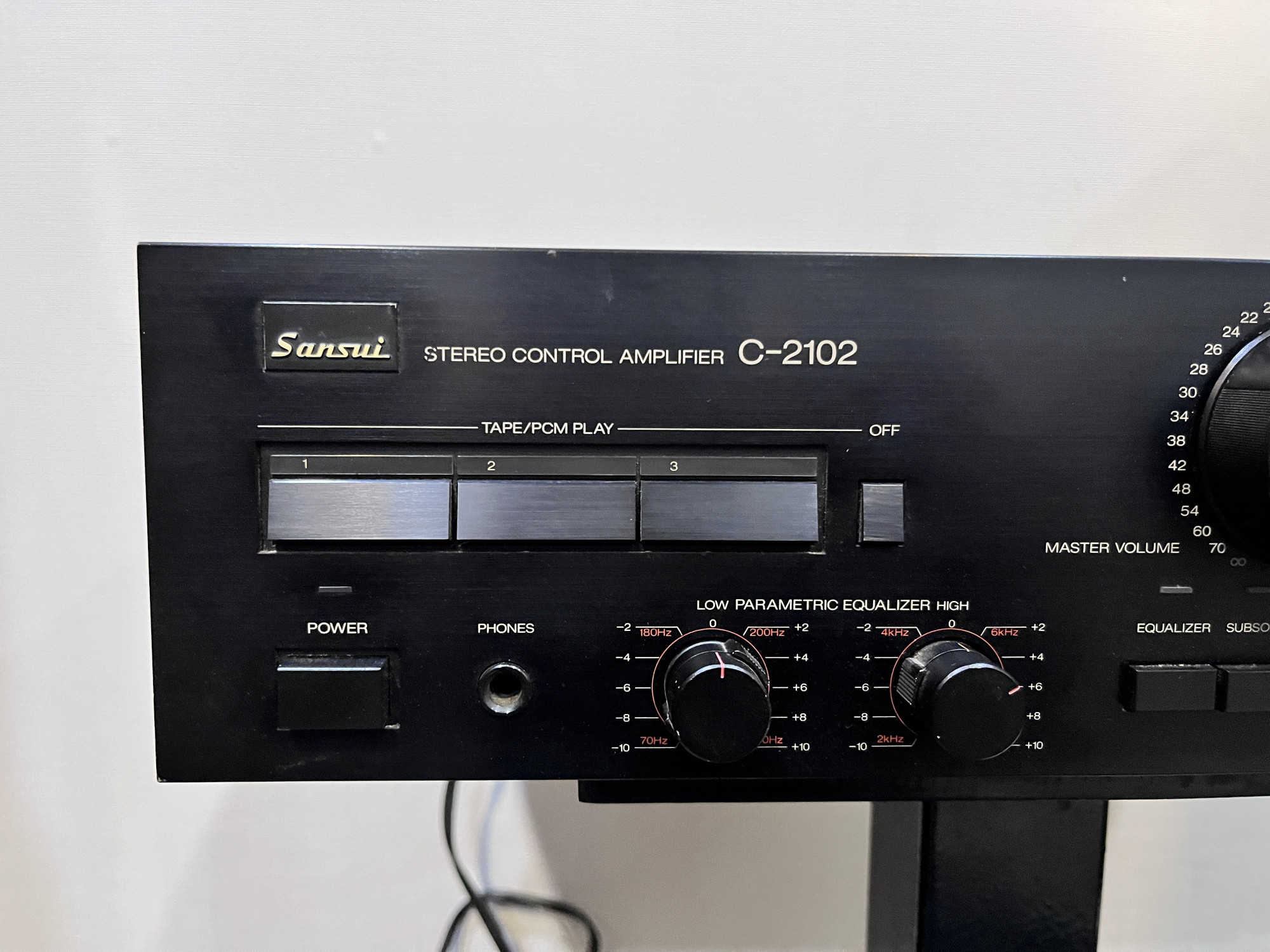

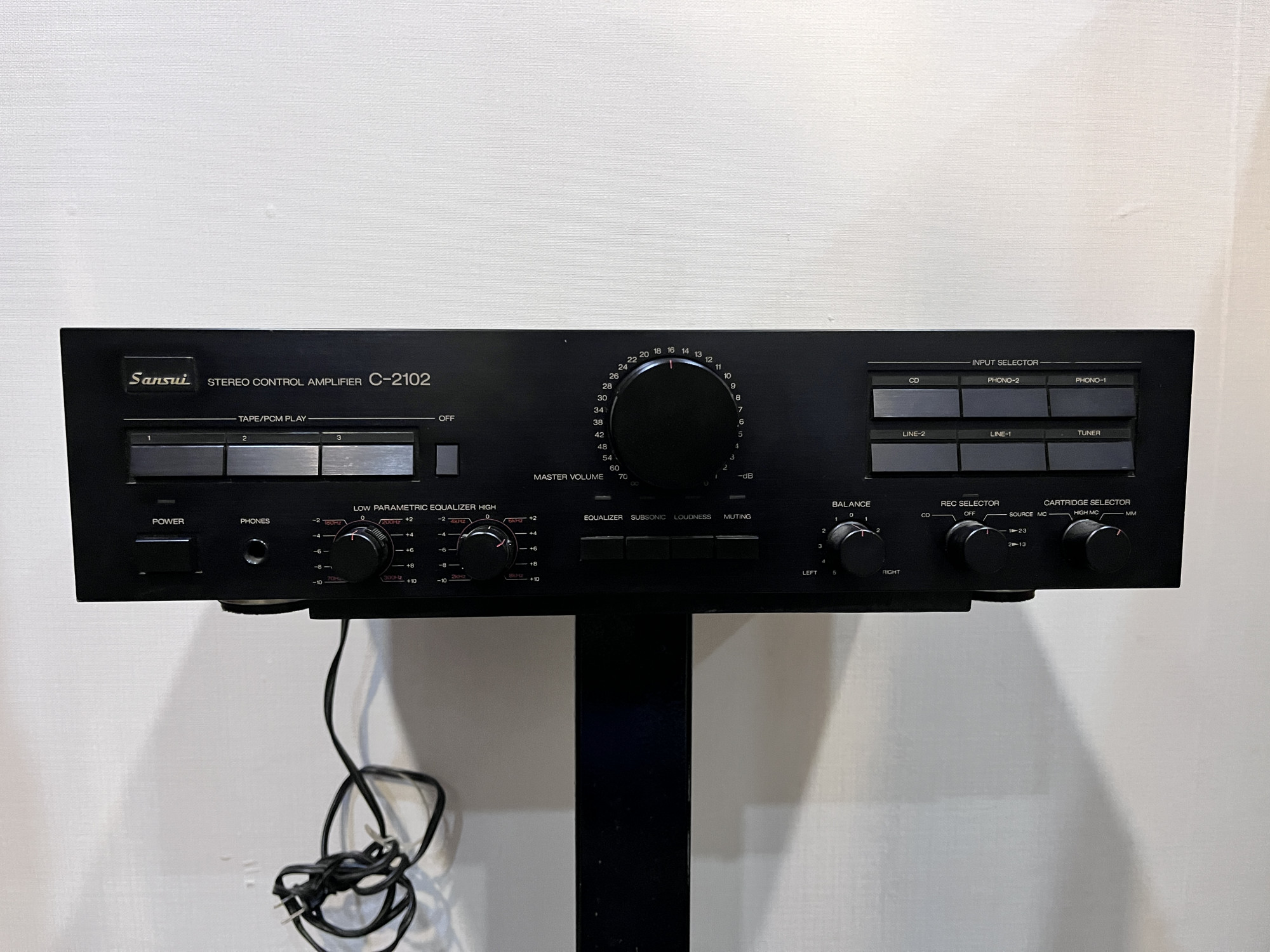

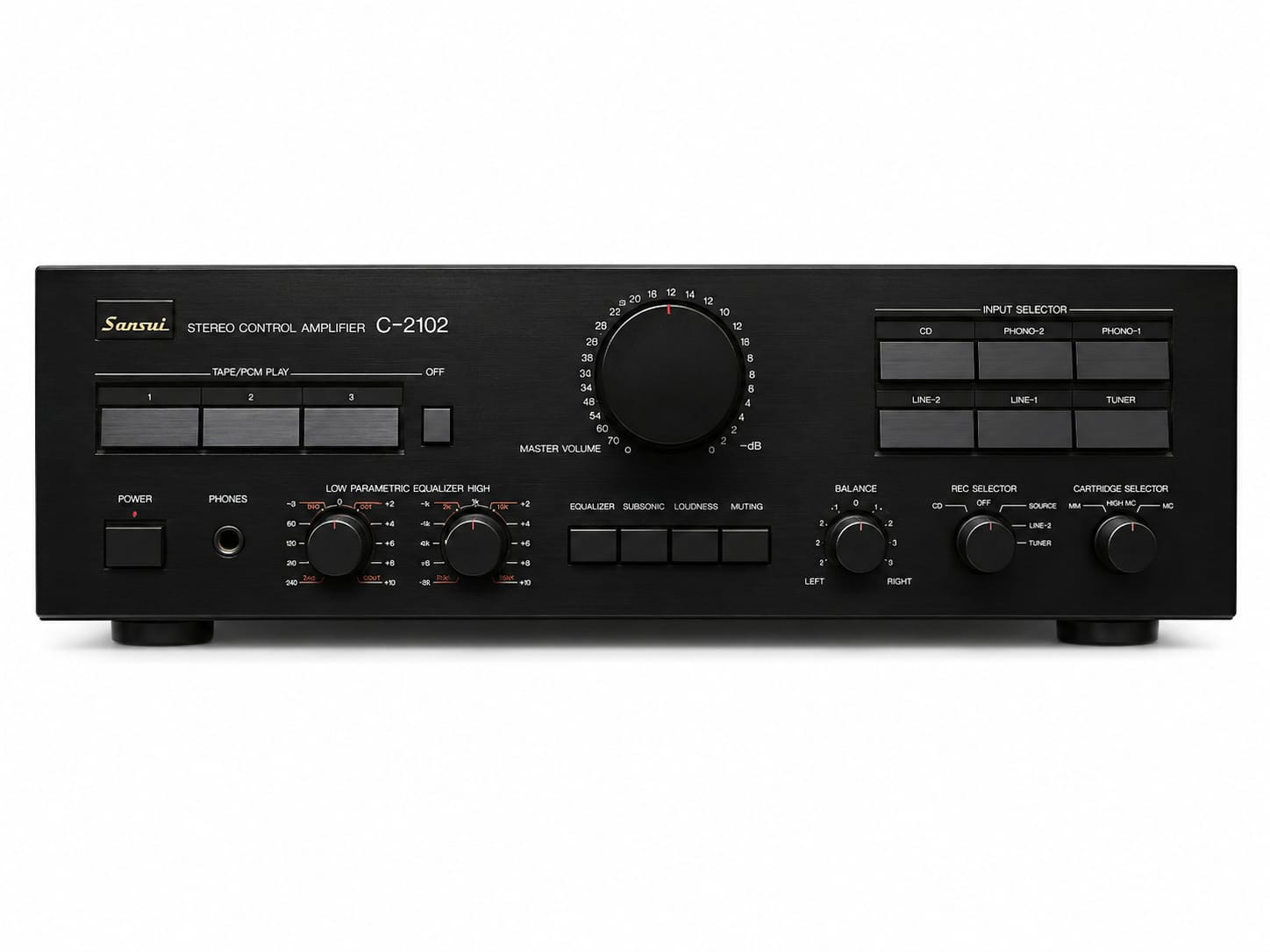

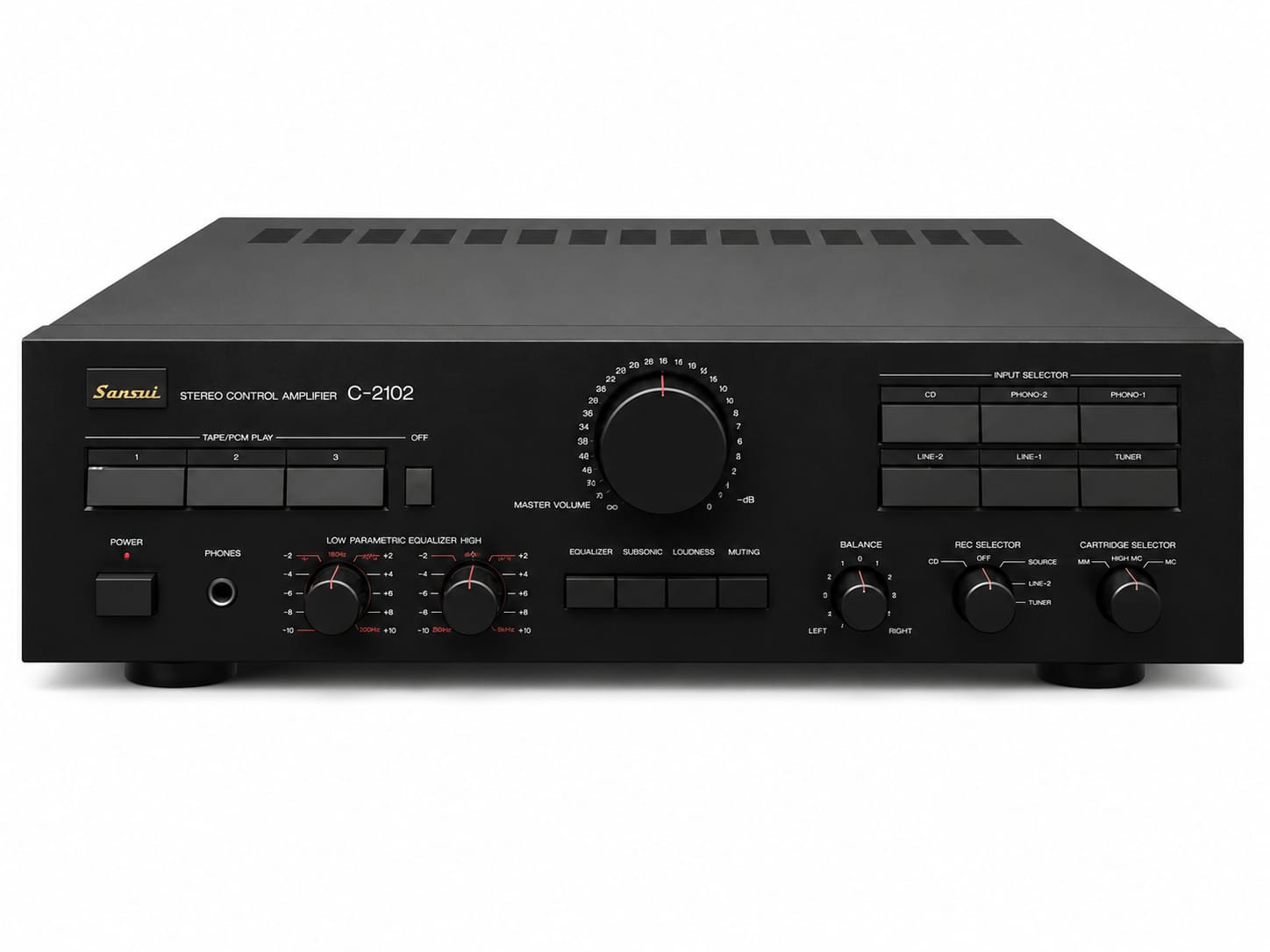

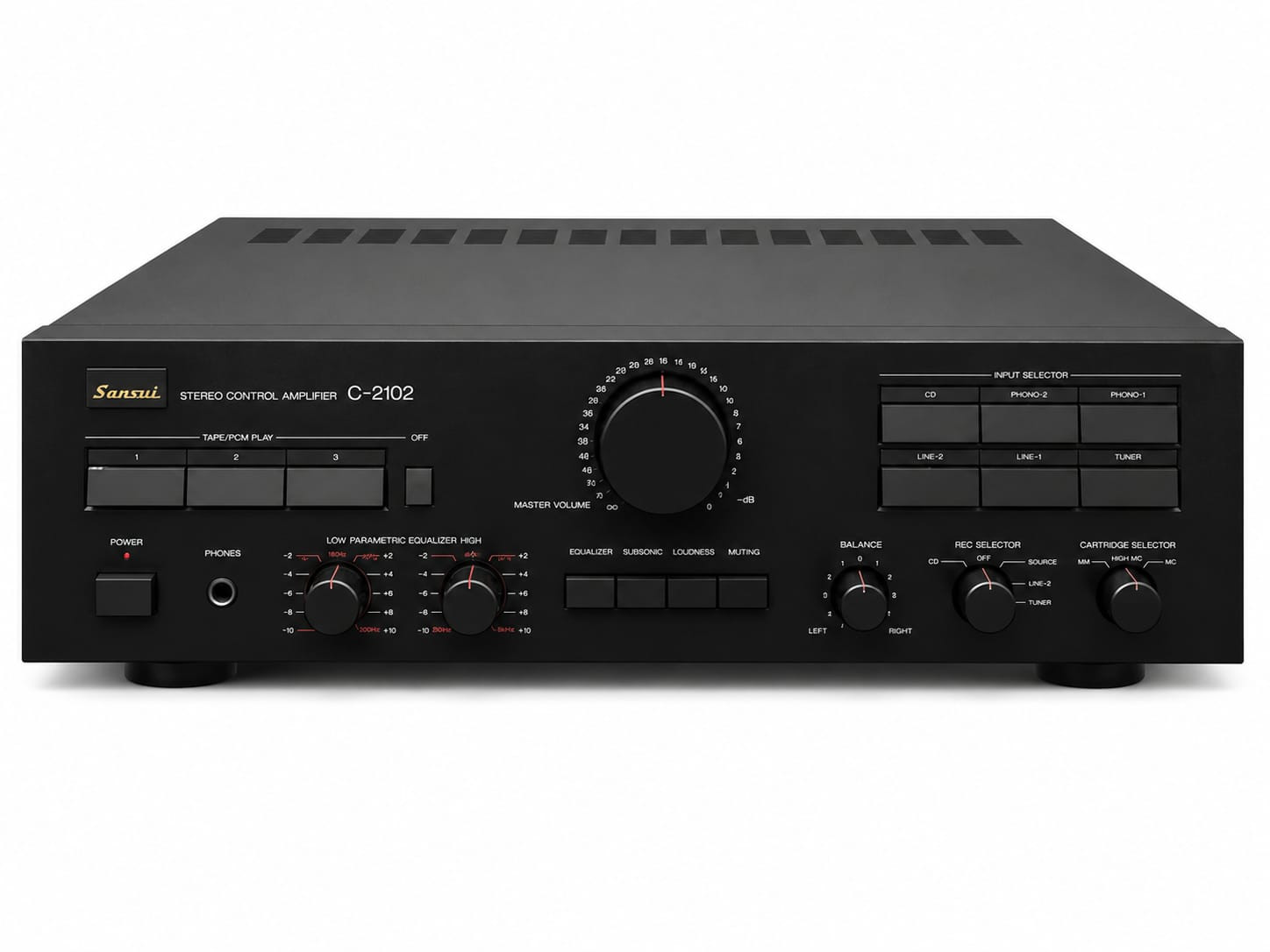

Sansui stereo control amplifier C-2102

Description

Description:

The Sansui C-2102 is a high-quality stereo control amplifier (preamplifier) from the 1980s, known for its excellent sonic performance, comprehensive controls, and versatile input/output options. It was positioned as a premium component, aiming to compete with high-end offerings of the time. A notable feature is its dual phono input section, capable of handling both Moving Magnet (MM) and Moving Coil (MC) cartridges, including a dedicated high-output MC setting. The C-2102 also includes a semi-parametric equalizer for fine-tuning the audio, along with loudness and subsonic filter controls. Its design emphasizes clean signal paths and low noise for accurate audio reproduction.

Specifications :

• Type: Stereo Control Amplifier (Preamplifier)
• Frequency Response: DC to 300 kHz (+0, -3 dB) (CD, Tuner, Line, Tape Play)
• Total Harmonic Distortion (20 Hz to 20 kHz):
  • Phono 1, 2 (MC): Less than 0.01% (REC OUT)
  • Phono 1, 2 (MM): Less than 0.005% (REC OUT)
  • CD, Tuner, Line 1, 2, Tape Play 1, 2, 3: Less than 0.003%
• Input Sensitivity/Impedance (at 1 kHz):
  • Phono 1, 2 (MC): 250 µV / 100 ohms (Max. input: 30 mV)
  • Phono 1, 2 (High MC): 2.5 mV / 100 ohms
  • Phono 1, 2 (MM): 2.5 mV / 47 kohms (Max. input: 300 mV)
  • CD, Tuner, Line 1, 2, Tape Play 1, 2, 3: 150 mV / 47 kohms
• Output Level (1 kHz):
  • Tape Rec 1, 2, 3: 150 mV
  • Output: 1 V (Max. output: 15 V, less than 0.01% THD)
• Signal to Noise Ratio (Short-circuit, A-network):
  • Phono 1, 2 (MC): 70 dB
  • Phono 1, 2 (MM): 88 dB
  • CD, Tuner, Line 1, 2, Tape Play 1, 2, 3: 110 dB

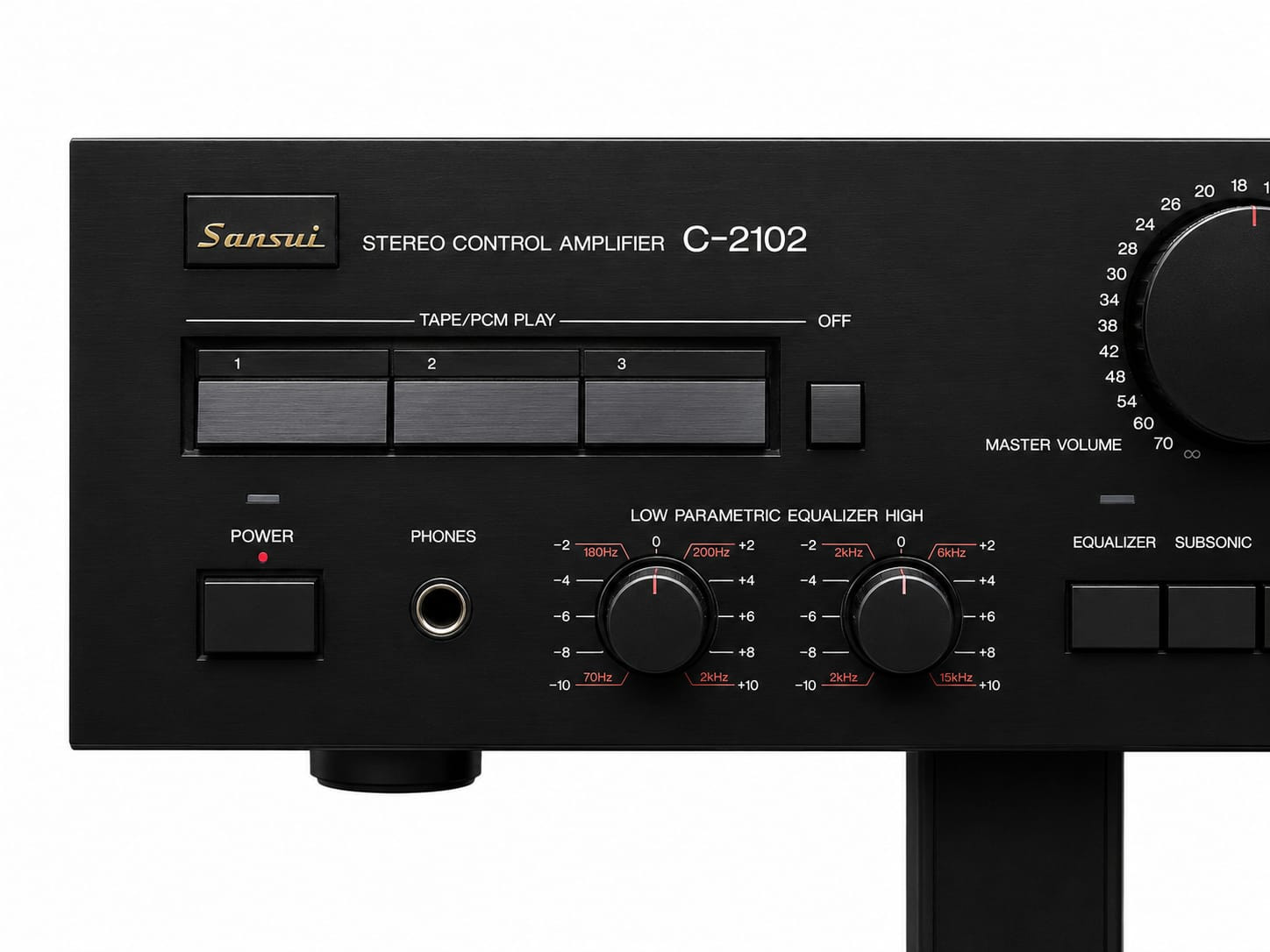

• Controls and Filters:
  • Low EQ: ±12 dB (70 Hz - 300 Hz)
  • High EQ: ±12 dB (2 kHz - 8 kHz)
  • Subsonic Filter: -3 dB at 16 Hz (6 dB/octave)
  • Muting: -20 dB
  • Loudness: +8 dB at 50 Hz, +6 dB at 10 kHz (Volume at -30 dB)
  • Balance Control
  • Input Selector
  • Cartridge Selector (MM, High MC, MC)
  • Tape Monitor (1, 2, 3/DAT)
  • Parametric Equalizer (On/Off)
  • Flat Amp (On/Off - likely bypass for EQ)
• Headphone Output: Yes

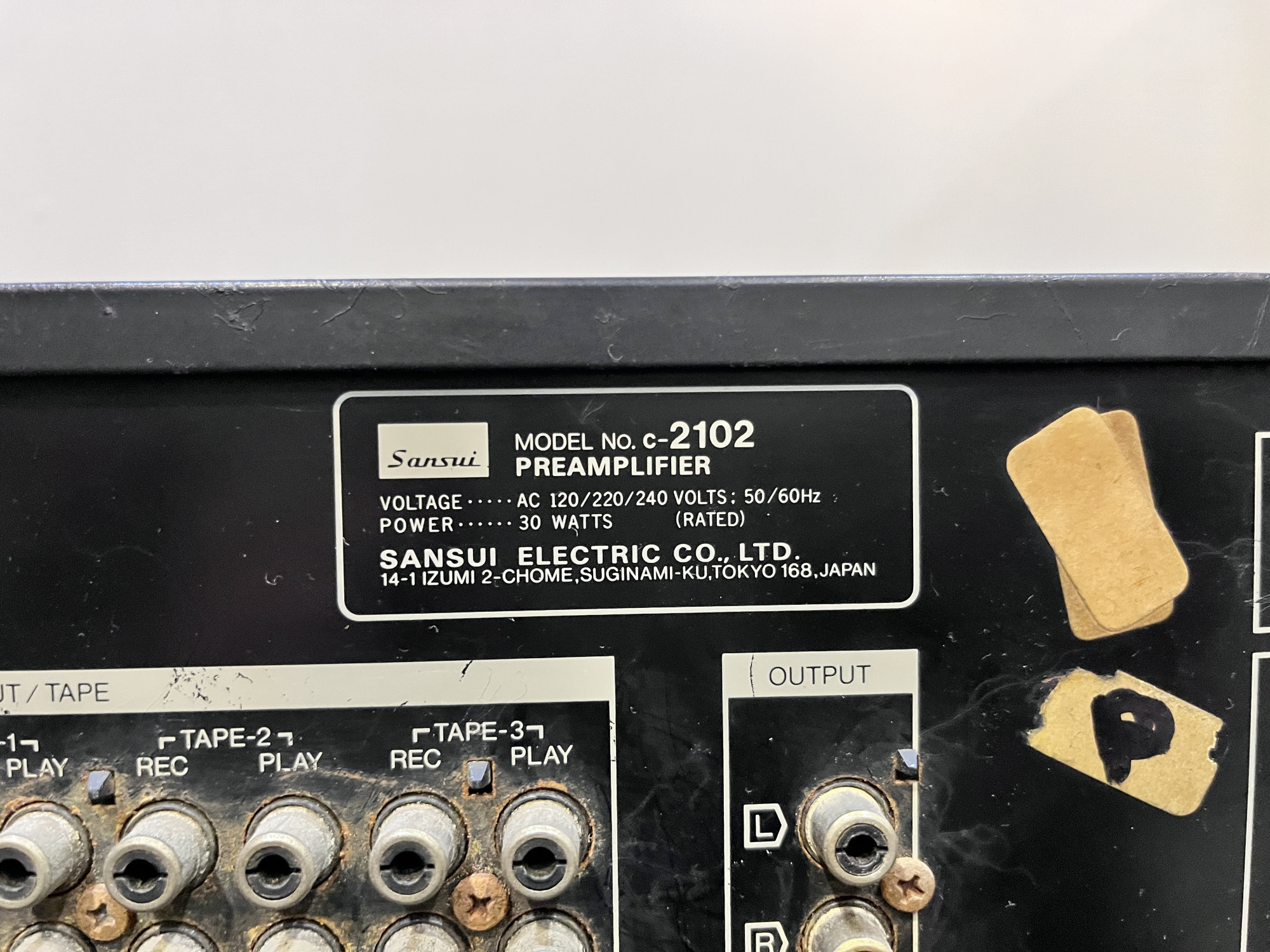

• Power Consumption: 30 Watts
• Dimensions (W x H x D): 430 x 119 x 326 mm
• Weight: 5.5 kg (net)
