Description

Product Overview

Sony TC-377 Three Head Stereo Tapecorder

The Sony TC-377 is a classic 1970s open-reel tape recorder designed for high-fidelity home recording and playback. Built around a three-head, four-track stereo system, the TC-377 uses separate erase, record and playback heads. This configuration allows the user to monitor the recorded signal directly from the playback head while recording, making the machine considerably more versatile than a basic two-head recorder. Sony equipped the TC-377 with its F&F, or Ferrite & Ferrite, heads, designed for extended frequency response and long-term head durability. The machine also incorporates a tape tension regulator, scrape filter and automatic shut-off mechanism. The transport provides three selectable tape speeds:

• 19 cm/s / 7½ ips
• 9.5 cm/s / 3¾ ips
• 4.8 cm/s / 1⅞ ips

The TC-377 accepts reels up to approximately 7 inches / 18 cm in diameter.

Key Features

• Vintage Sony reel-to-reel tape recorder
• Model TC-377
• Three-head design
• Four-track stereo recording/playback
• Two-channel stereo / monaural operation
• Sony Ferrite & Ferrite heads
• 19 cm/s, 9.5 cm/s and 4.8 cm/s tape speeds
• Supports reels up to approximately 18 cm / 7 inches
• Separate record and playback heads
• Dual illuminated level meters
• Independent L/R recording controls
• Microphone inputs
• Line inputs
• Line outputs
• 8-ohm headphone output
• Record/playback connector
• Microphone attenuation switch
• Tape Select: Normal / Special
• L/R source and tape monitoring
• Line output level adjustment
• Tape tension regulator
• Scrape filter
• Automatic shut-off
• Sound-on-sound recording
• Echo recording
• SQ matrix recording/playback capability
• Vertical or horizontal operation
• Woodgrain cabinet
• Made in Japan

Visible Connections & Controls

The photographs provide particularly good evidence of the following:

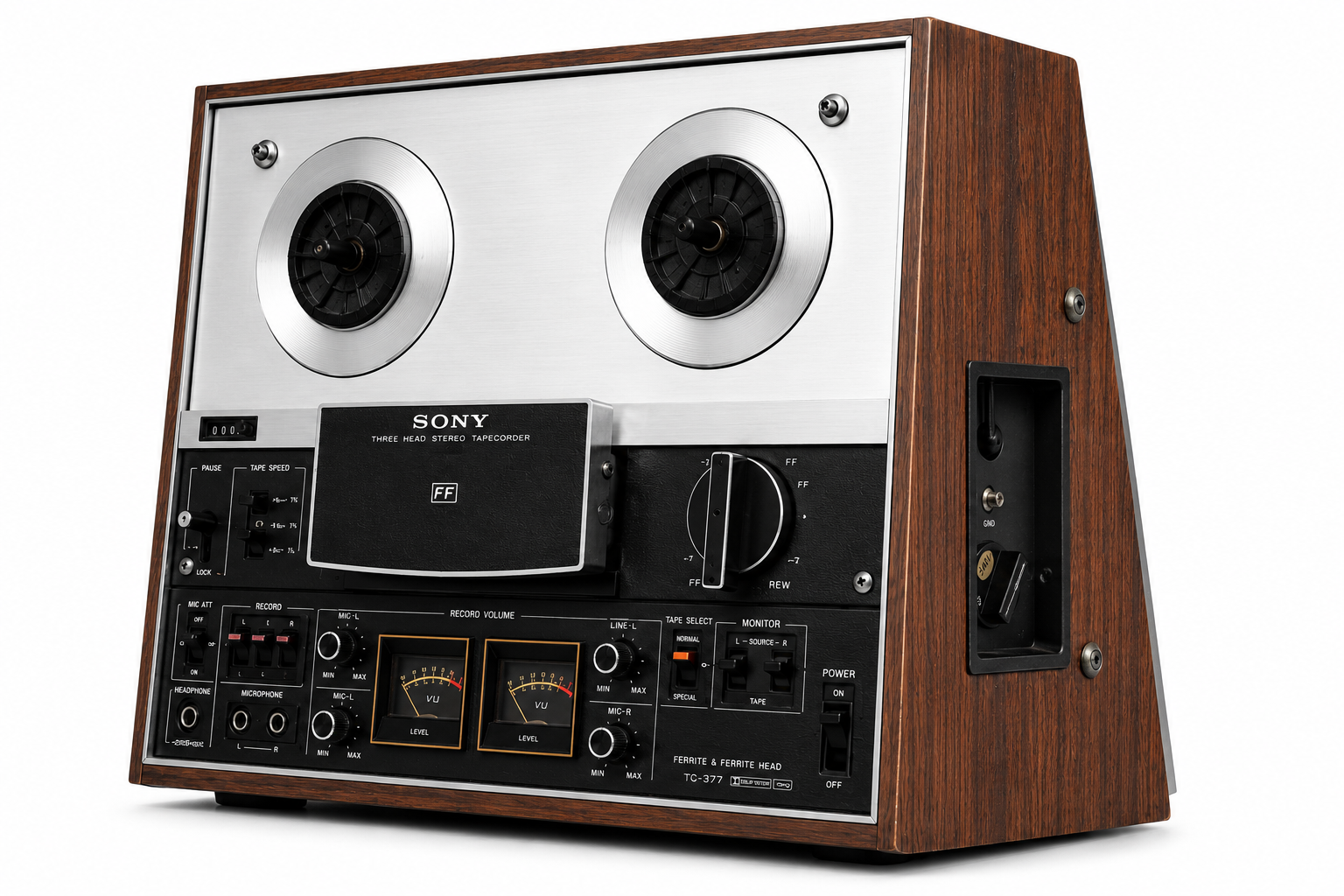

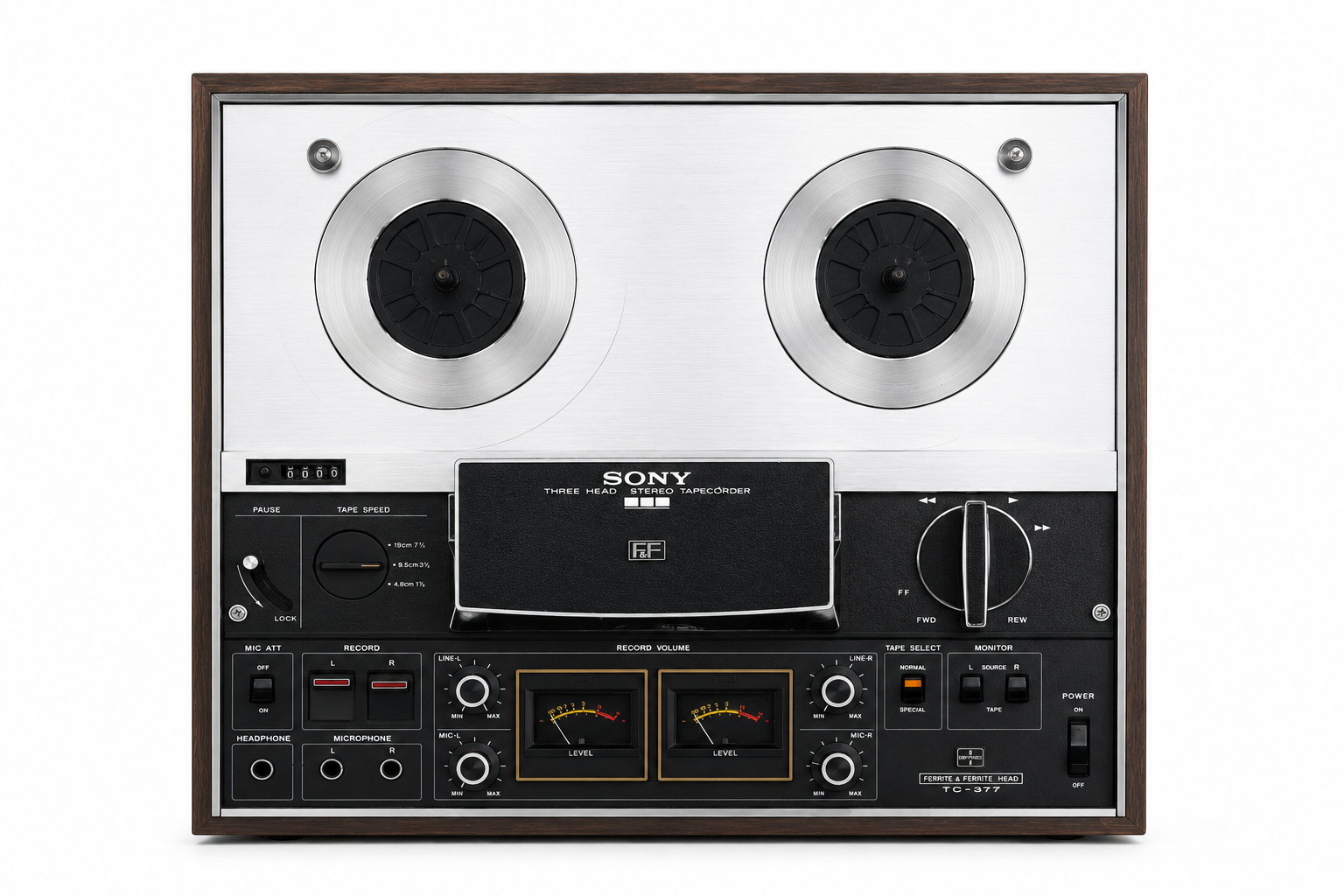

Front Panel

• Tape counter
• Pause control
• Tape-speed selector
• Function selector
• Record levers
• L/R record volume controls
• L/R level meters
• Microphone attenuation switch
• Microphone inputs
• Headphone output
• Tape Select switch
• Monitor L/R switches
• Power switch
• Line recording controls
• Line output level adjustment

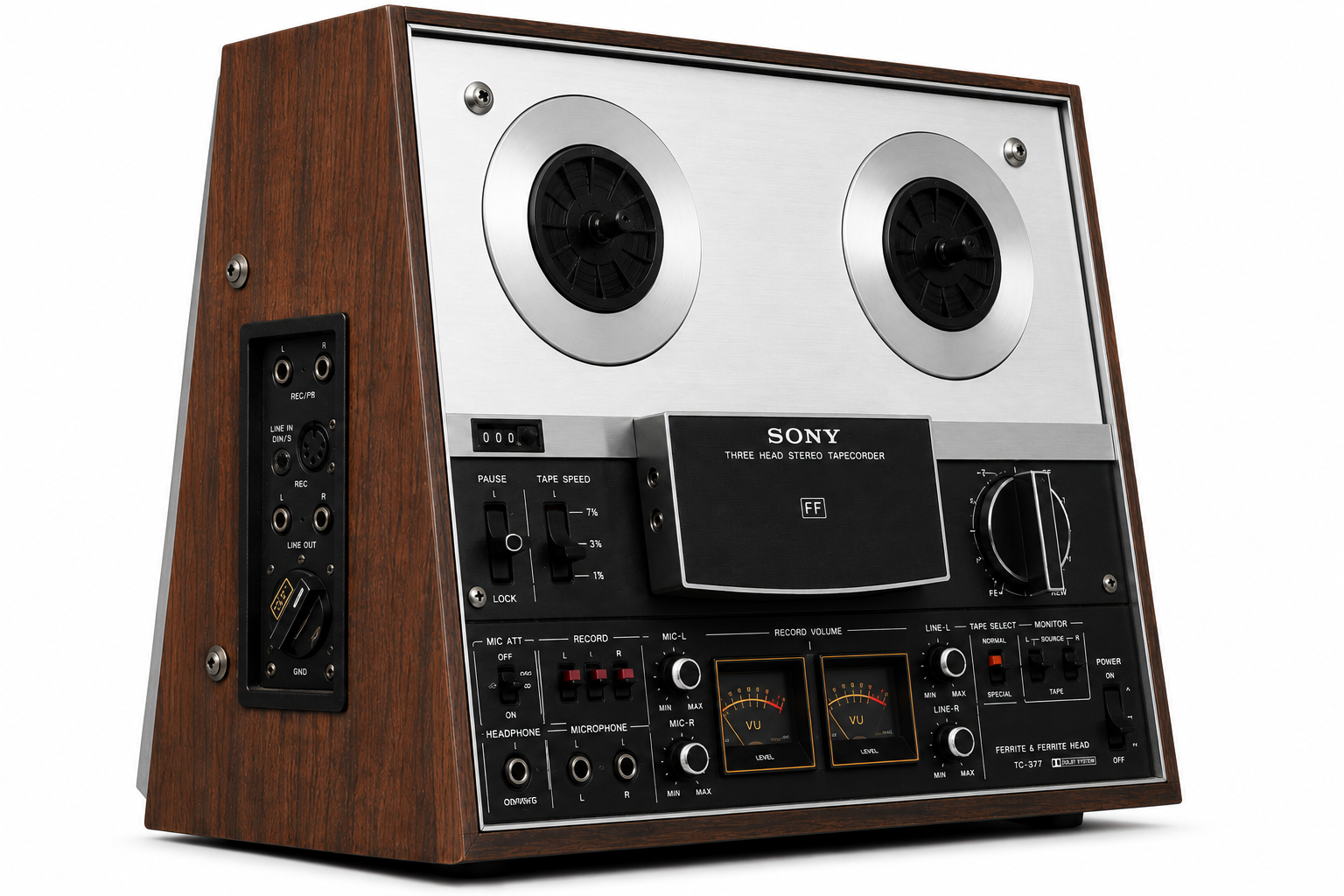

Rear / Side Panel

The close-up clearly shows:

• LINE IN R/L
• REC/PB connector
• LEVEL ADJUST
• LINE OUT R/L
• GND
• Voltage selector

The voltage selector visible in the photographs is set around the 240 V position. I would not state that as the permanent operating voltage in the product listing. Instead, say that the unit has a selectable voltage arrangement and that the current selector position should be checked before powering the unit.

Condition Report

Based strictly on the photographs:

Cosmetic Condition

Good Vintage Condition The unit has a strong overall vintage appearance, but it is clearly not mint condition.

Observed

• Woodgrain cabinet remains intact
• Silver front panel is present
• Front controls and lettering are generally intact
• Sony branding is clearly visible
• Reel spindles are present
• Level meters are present
• Tape counter is present
• Wooden cabinet shows signs of age and use
• Visible scratches/scuffs and surface marks are present
• Some screws and hardware show oxidation/age
• Rear panel shows dust and signs of use
• Bottom panel has noticeable marks/scuffing
• Connection panels show age-related wear
• Some lettering/finish shows normal vintage wear

Important

The photographs do not prove full mechanical or audio functionality. The power switch appears to be in the ON position in the photographs and the unit's meters/illumination are visible, but that alone does not confirm that:

• Playback works correctly
• Recording works correctly
• Fast-forward works correctly
• Rewind works correctly
• All three tape speeds are accurate
• Heads are within specification
• Motors/idlers/belts are operating correctly
• Audio output is clean on both channels

So I would not write Tested & Working unless you have actually tested those functions.
