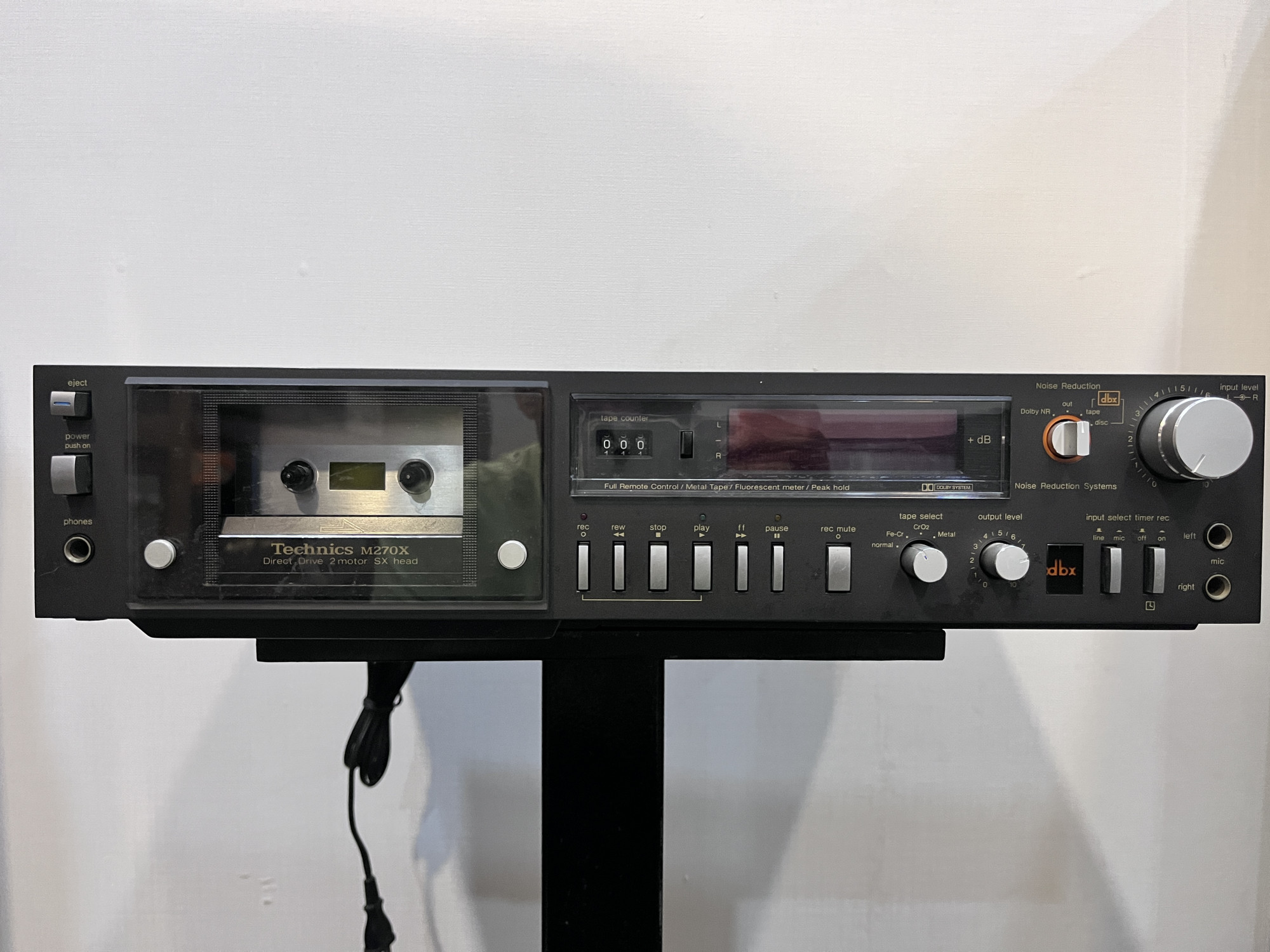

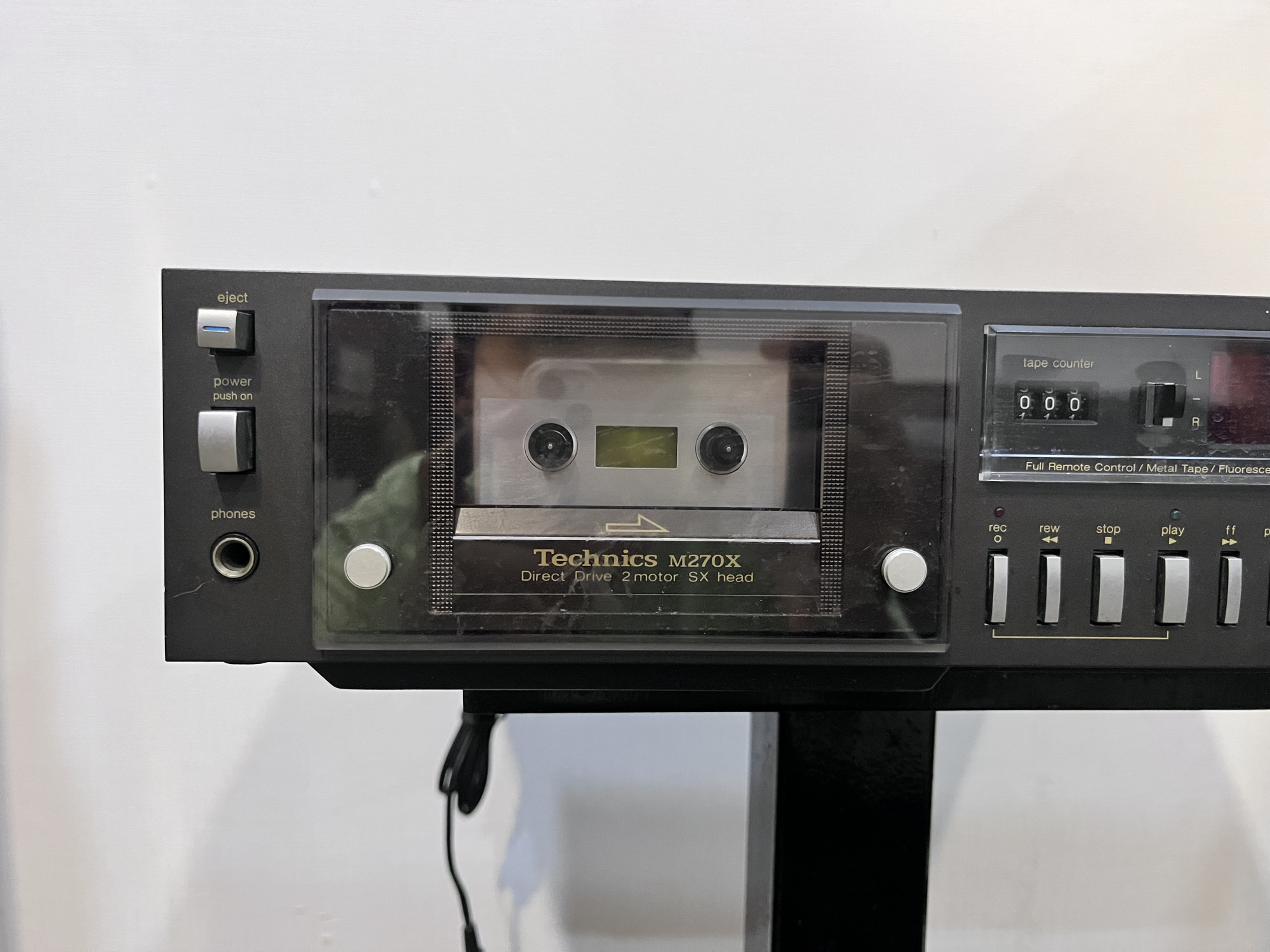

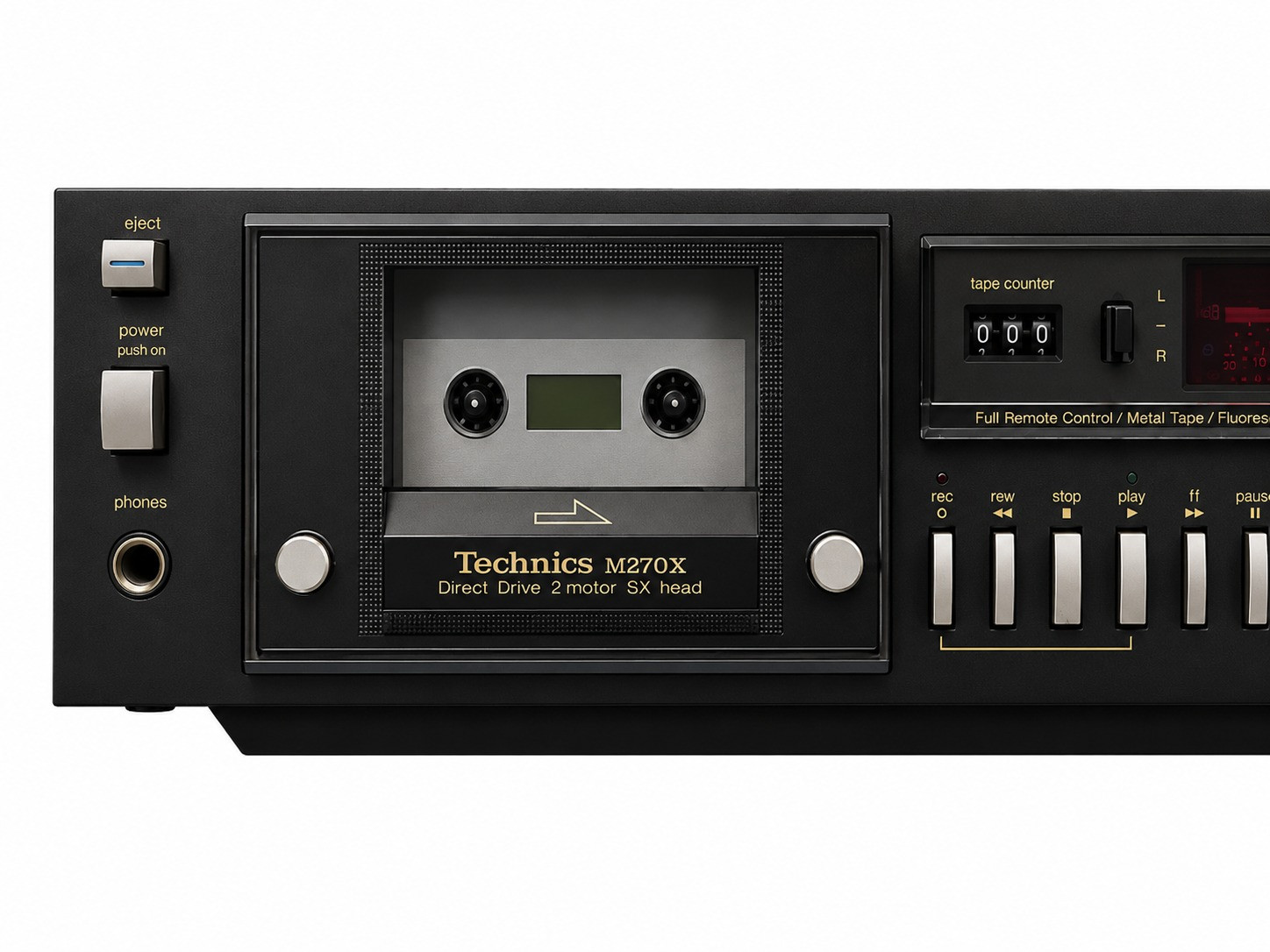

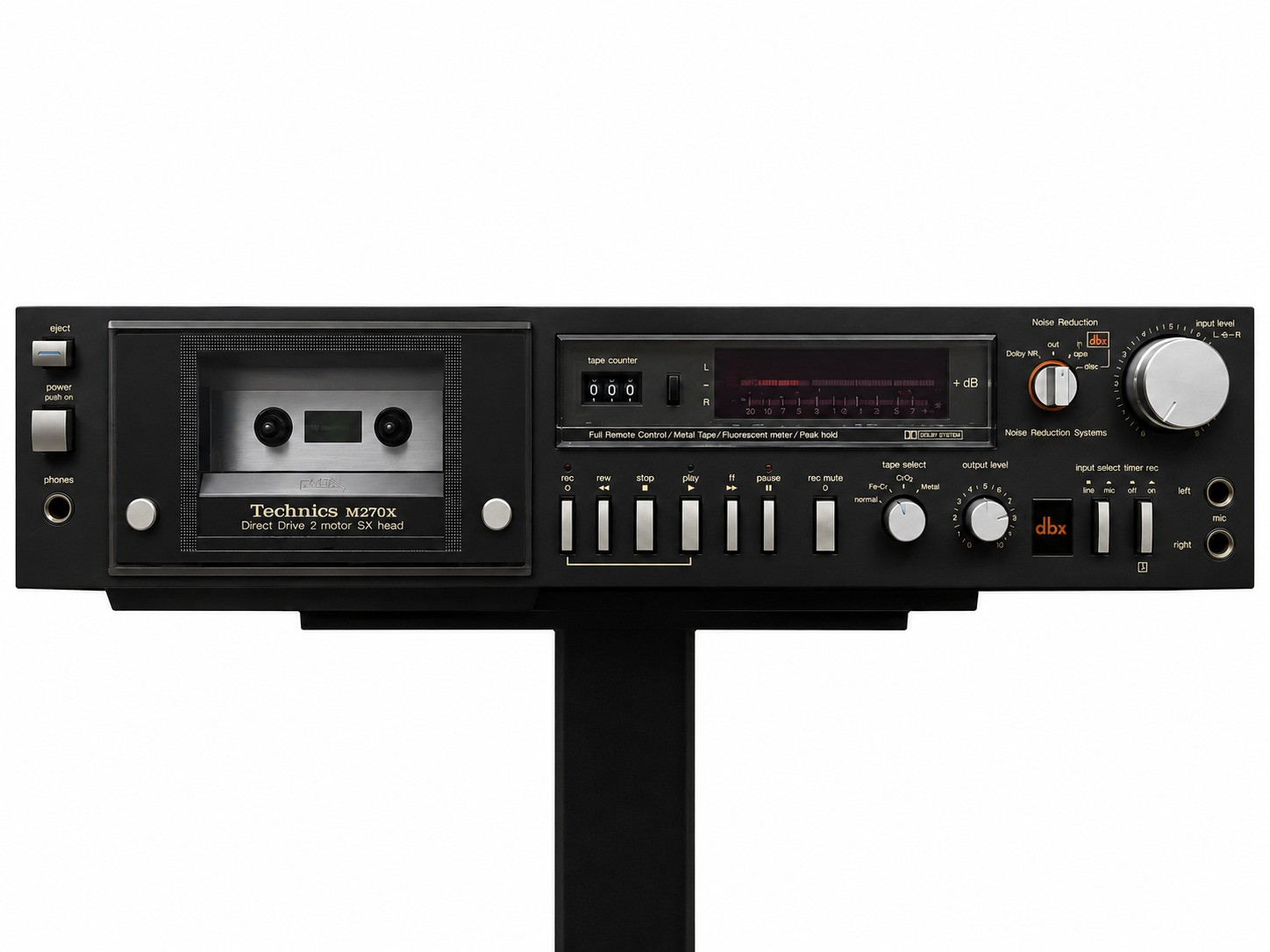

Description
Key Features and Characteristics:
- Direct Drive Capstan Motor: Eliminates belts for the capstan, leading to more accurate and stable tape speed, reduced wow and flutter, and lower mechanical noise.
- 2-Motor Transport: A dedicated motor for the capstan and another for the reel drive ensure smooth and independent operation of tape movement functions.
- SX Head (Sendust Extra): This record/playback head, made of a permalloy and Sendust alloy, was designed for excellent frequency response, low distortion, and good wear resistance, especially with metal tapes.
- Metal Tape Compatibility: Capable of recording and playing Type I (Normal), Type II (CrO2), and Type IV (Metal) tapes, offering versatility in tape selection.

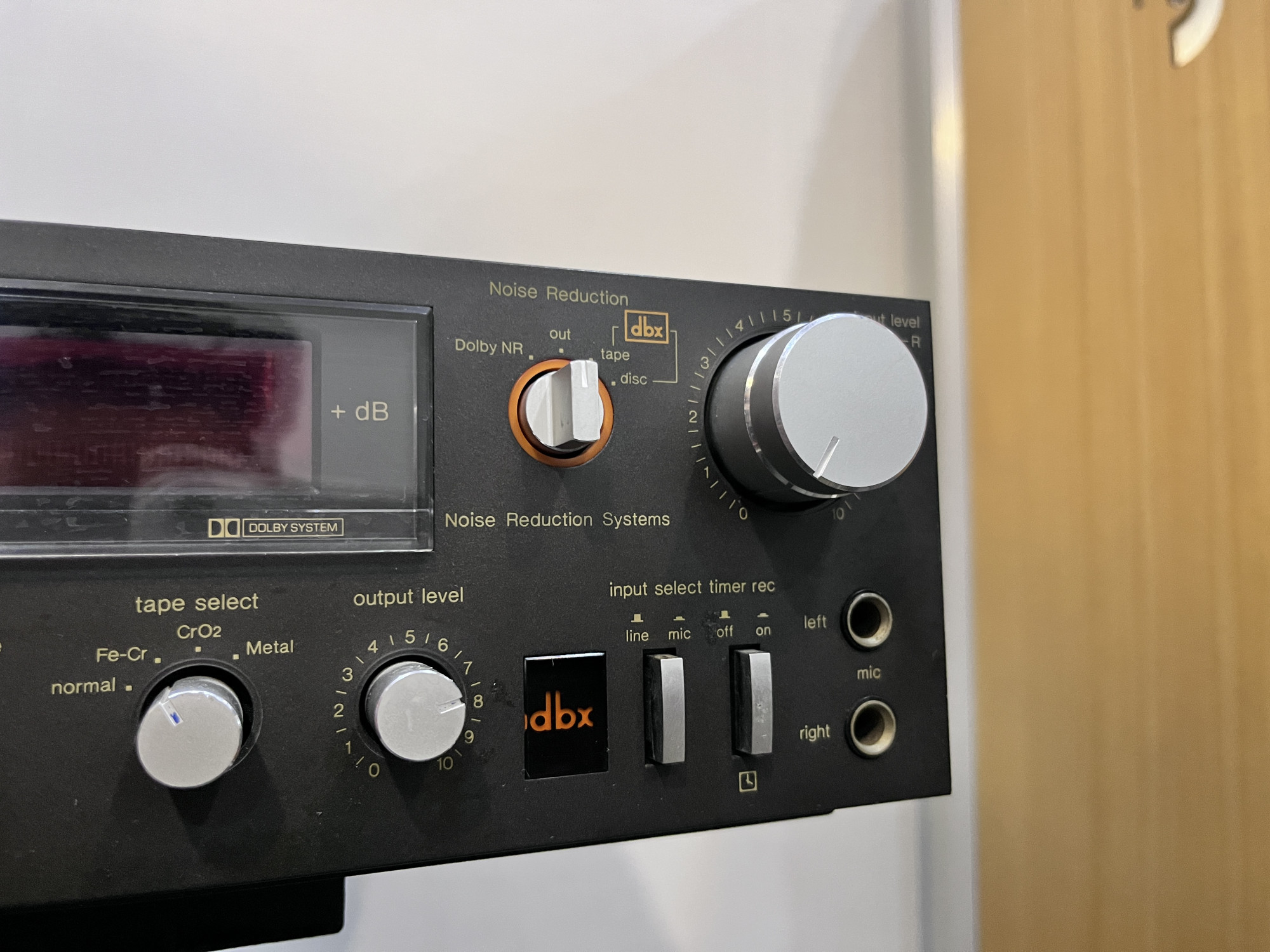

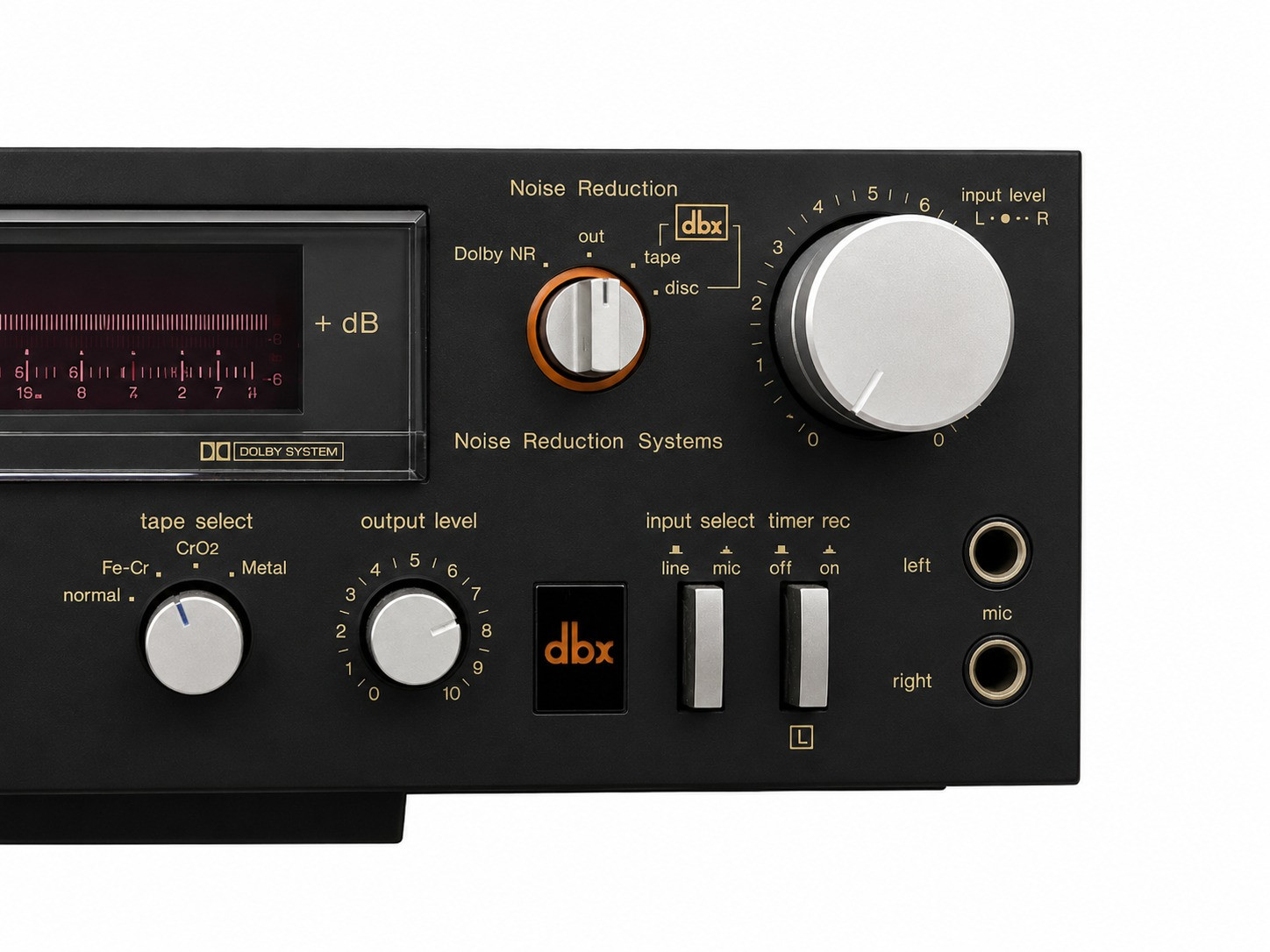

- Dolby B and dbx Noise Reduction: Incorporates both Dolby B and dbx II noise reduction systems, providing effective reduction of tape hiss and expanding dynamic range for cleaner and more dynamic recordings and playback.
- Solenoid Transport Controls with IC Logic: Features light-touch, solenoid-operated transport buttons with an IC logic system.
This allows for direct mode changes without having to press "Stop" first, reducing the risk of tape damage. - Output Level Control: Offers a manual output level control for adjusting the playback volume.

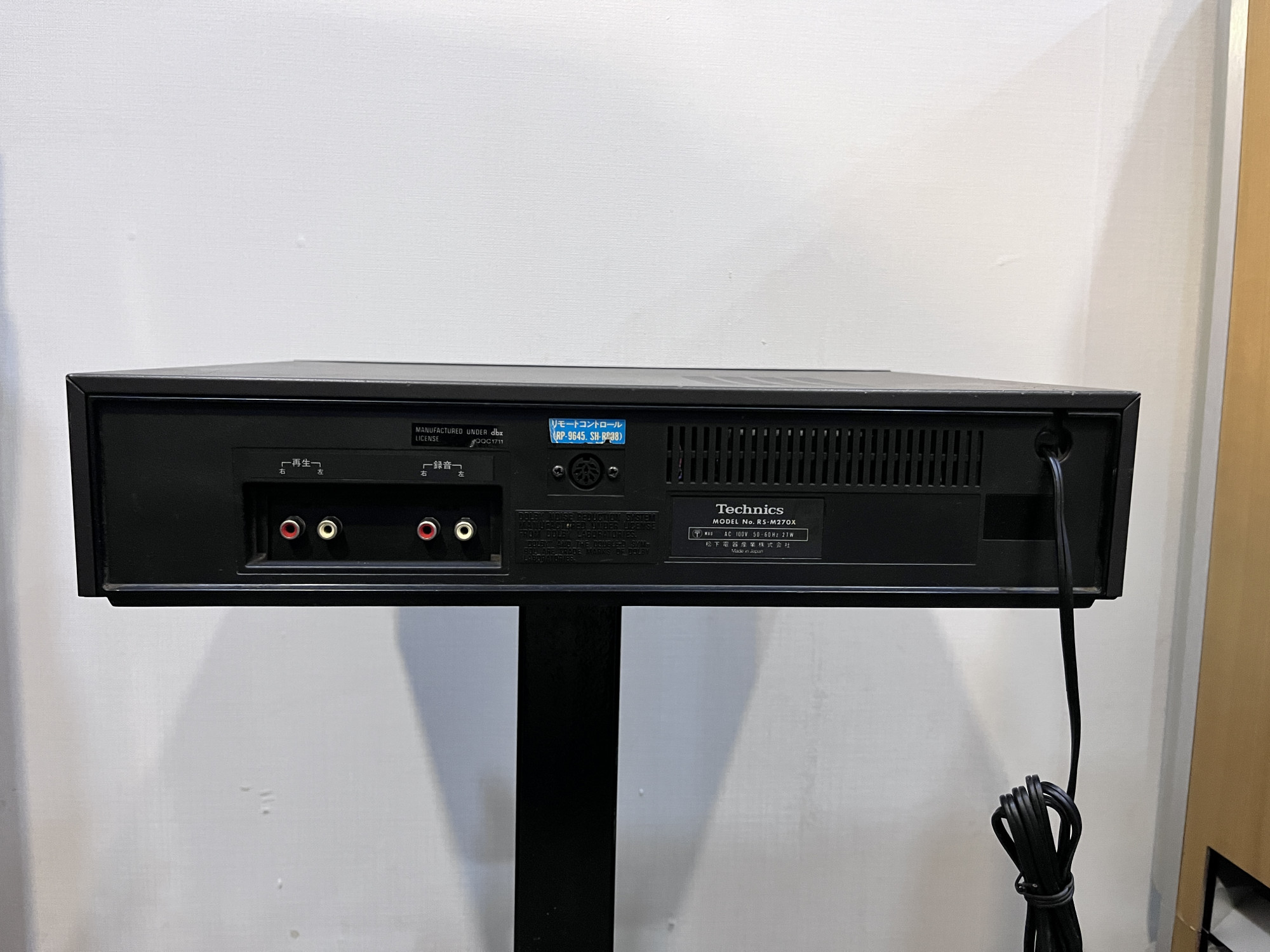

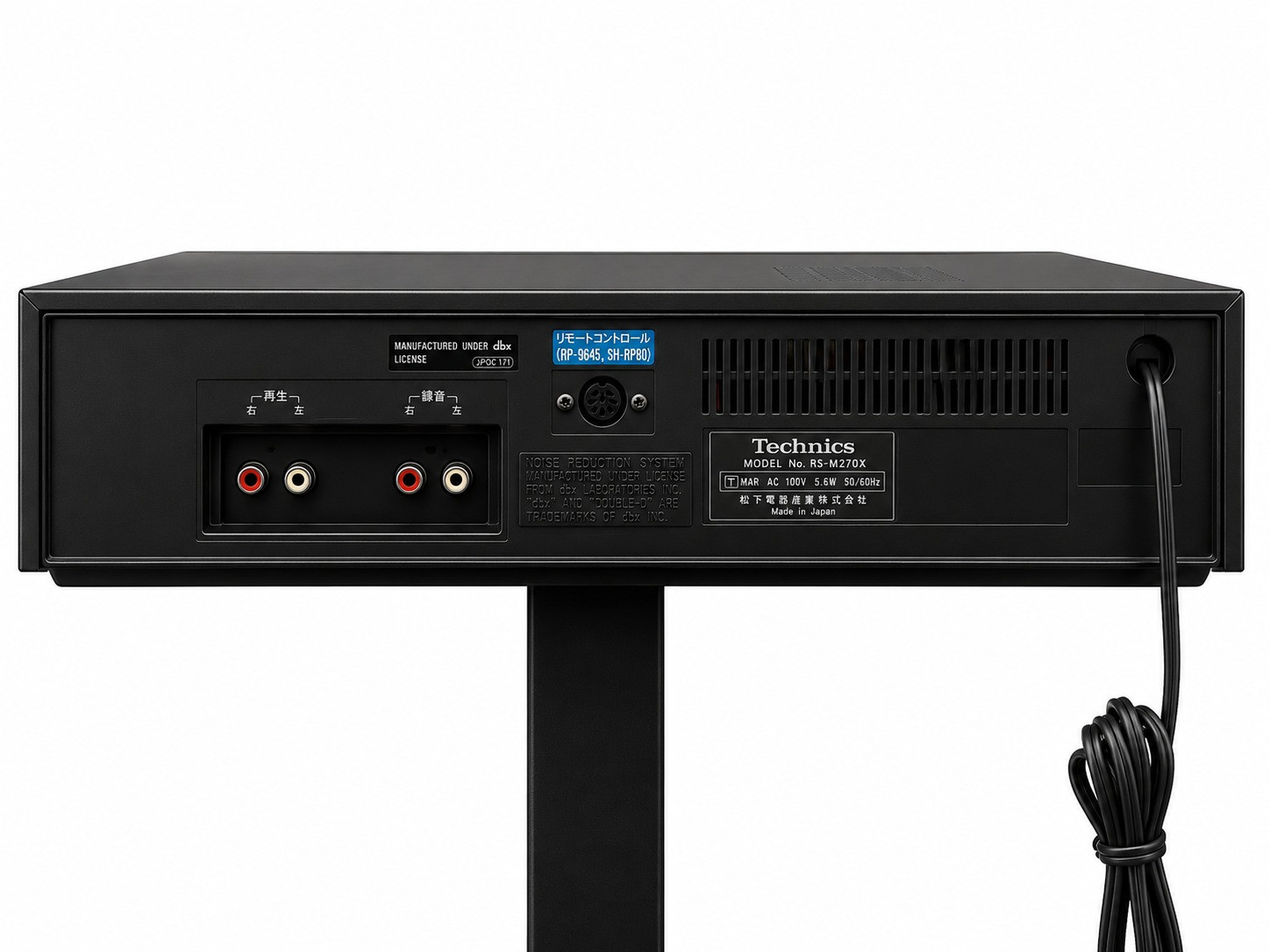

- Microphone and Line Inputs: Provides both microphone inputs (typically with a 1/4" jack) and line-level inputs (RCA connectors) for versatile recording options.
- Line Output: Standard RCA line output connectors for connecting to an amplifier.
- Fluorescent Meter: Usually equipped with a clear and responsive fluorescent meter to monitor audio levels during recording and playback.
- Timer Recording/Playback: Often includes a timer function for unattended recording or playback when used with an external timer.
- Remote Control Capability: Some models supported a wired remote control for added convenience.
Potential Specifications:
- Type: 2-head, single compact cassette deck
- Track System: 4-track, 2-channel stereo
- Tape Speed: 4.8 cm/s
- Heads: 1 x Record/Playback
(SX Head), 1 x Erase (Sendust Alloy) - Motor: 1 x Direct Drive (Capstan), 1 x DC Motor (Reel)
- Tape Type: Type I (Normal), Type II (CrO2), Type IV (Metal)
- Noise Reduction: Dolby B, dbx II
- Frequency Response (Metal Tape): 20 Hz to 20 kHz (±3 dB)
- Signal to Noise Ratio (with dbx): Typically around 92 dB
- Wow and Flutter: Typically around 0.035% WRMS
- Input Sensitivity:
- Line: 60 mV
- Mic: 0.25 mV
- Output Level: 0.4 V (Line)
- Dimensions (W x H x D): Approximately 430 x 97 x 350 mm
- Weight: Approximately 6.2 kg
