Fosi Audio K5 Pro Mini Stereo Gaming DAC: Full Description with Specifications
The Fosi Audio K5 Pro is a compact and versatile stereo gaming DAC (Digital-to-Analog Converter) and headphone amplifier designed to enhance audio quality for gaming and music listening on various devices. It acts as an external sound card, offering improved audio fidelity compared to integrated sound solutions. The K5 Pro boasts multiple input and output options, along with convenient tone controls for a customized audio experience.Key Specifications:
Chipset: Utilizes the Texas Instruments NE5532 op-amp chip for enhanced sound quality and low noise. The specific DAC chip is not always specified but supports high-resolution audio.

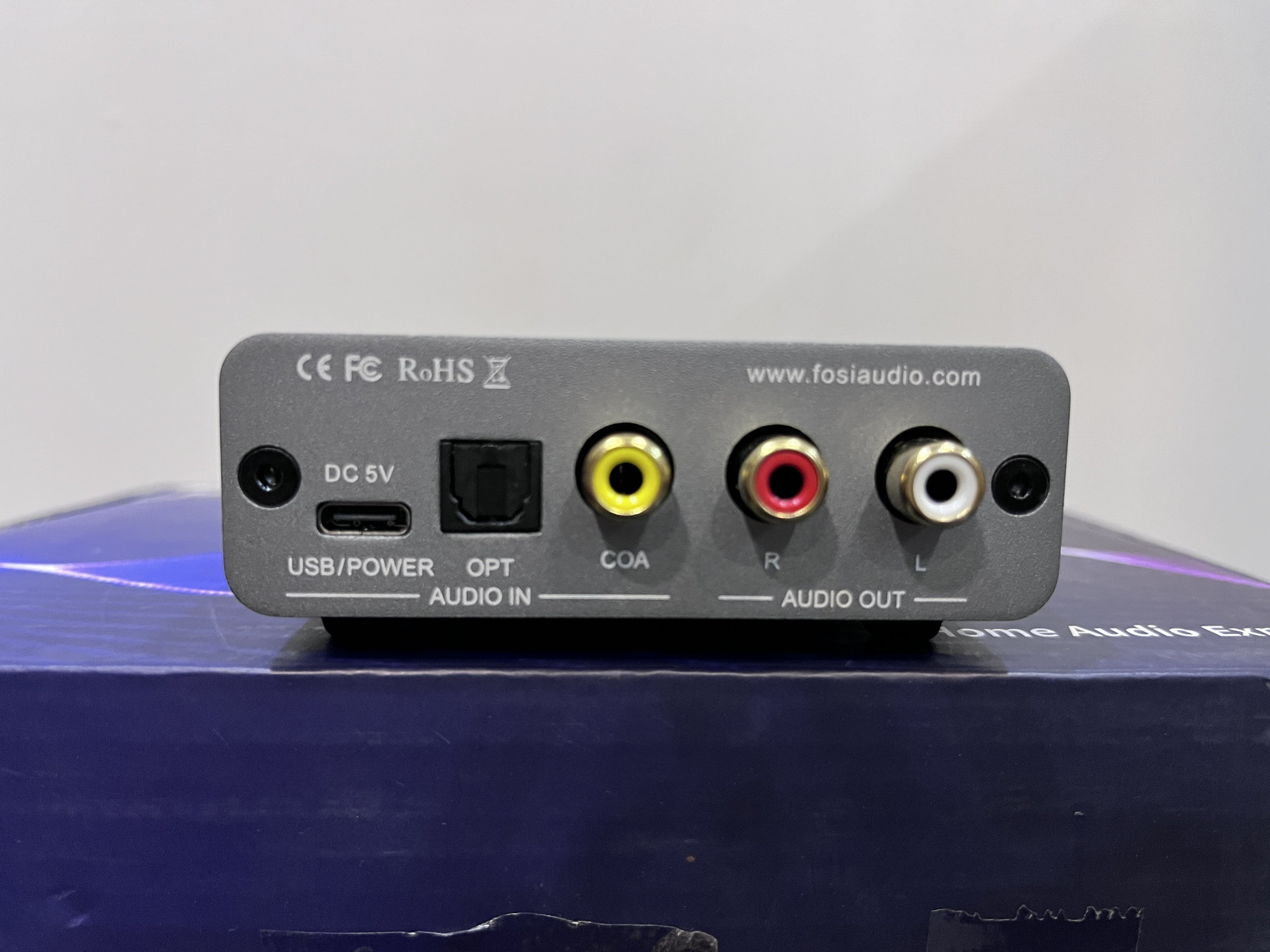

Input Types:
USB Type-C (supports up to 24-bit/96 kHz sampling rate)
Optical (TOSLINK) (supports up to 24-bit/192 kHz sampling rate)
Coaxial (supports up to 24-bit/192 kHz sampling rate)
3.5mm Microphone Input
Output Types:
3.5mm Headphone Jack (line-out)
RCA Stereo Output
Headphone Impedance: Supports headphones with impedance ranging from 16 to 300 Ω.
Output Power:
1000 mW @ 16 Ω
500 mW @ 32 Ω
300 mW @ 64 Ω
150 mW @ 128 Ω
80 mW @ 300 Ω
Total Harmonic Distortion (THD): ≤ 0.003%
Signal-to-Noise Ratio (SNR): ≥ 110 dB
Frequency Response: 20 Hz - 20 kHz
Power Input: DC 5V via USB Type-C (can be powered by a USB port or a 5V power adapter).
Compatibility: PC, Mac, PlayStation 5 (PS5), PlayStation 4 (PS4), PS4 Pro, Nintendo Switch (docked mode), and smartphones (with USB-C port and appropriate connection).
Dimensions: 4.4 x 3.7 x 1.2 inches (112 x 95 x 30 mm)
Net Weight: 0.55 lb (251 g)
Key Features:
High-Quality Audio Conversion: The K5 Pro converts digital audio signals to analog with minimal distortion, resulting in clearer and more detailed sound.
Powerful Headphone Amplification: It can drive a wide range of headphones with sufficient power, providing ample volume and dynamic range.
Versatile Connectivity: Offers multiple digital and analog input options to connect to various audio sources.
Dedicated Microphone Input: Allows for clear voice communication during gaming or online calls.

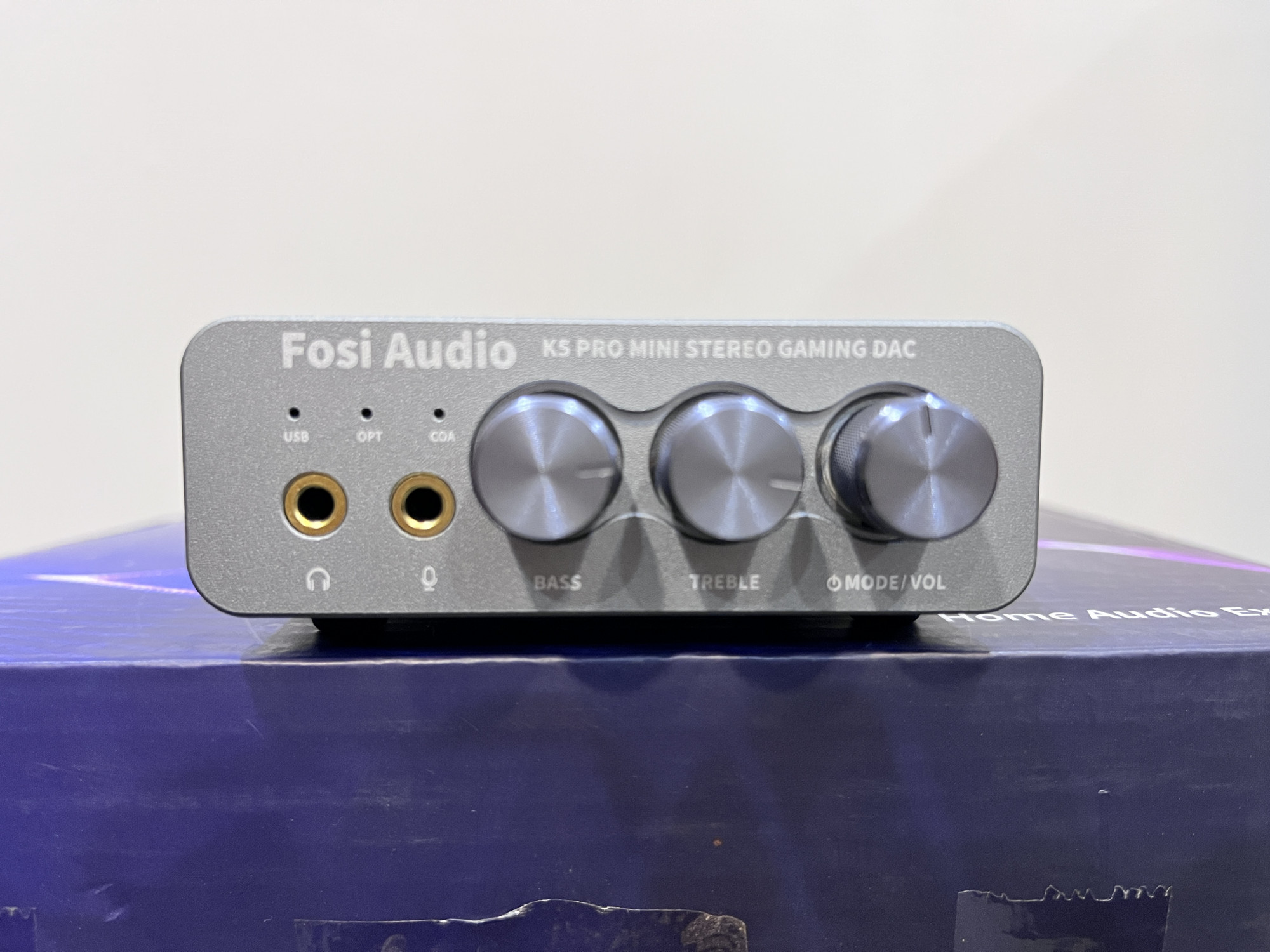

Bass and Treble Control: Provides the ability to fine-tune the low and high frequencies to match personal preferences or the characteristics of the connected headphones or speakers.

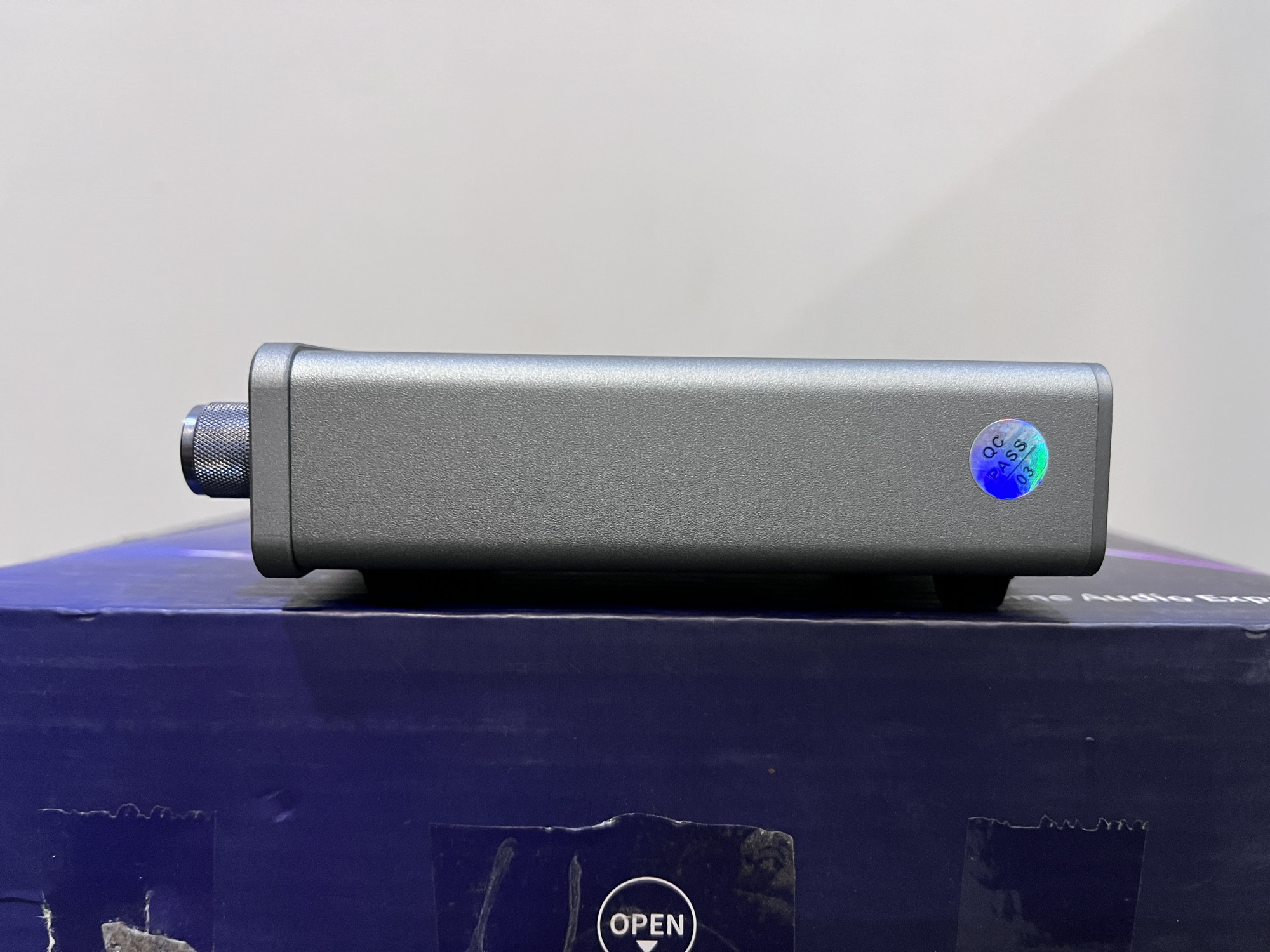

Compact and Durable Design: Features a small footprint and a metal enclosure for durability.
Plug and Play: Generally driver-free for PC and Mac when used via USB.
Simultaneous Output: Can output audio to both the headphone jack and RCA outputs simultaneously.

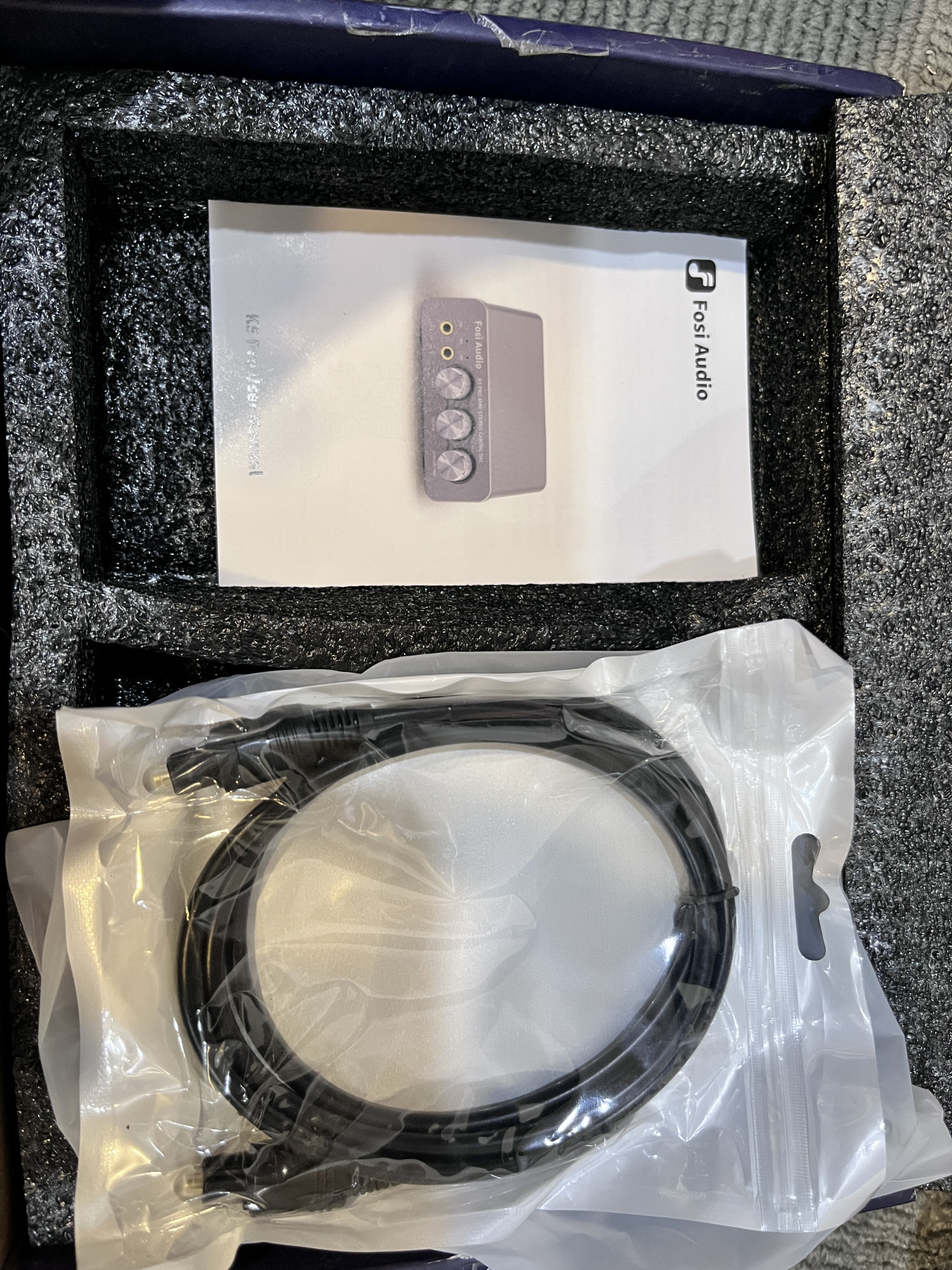

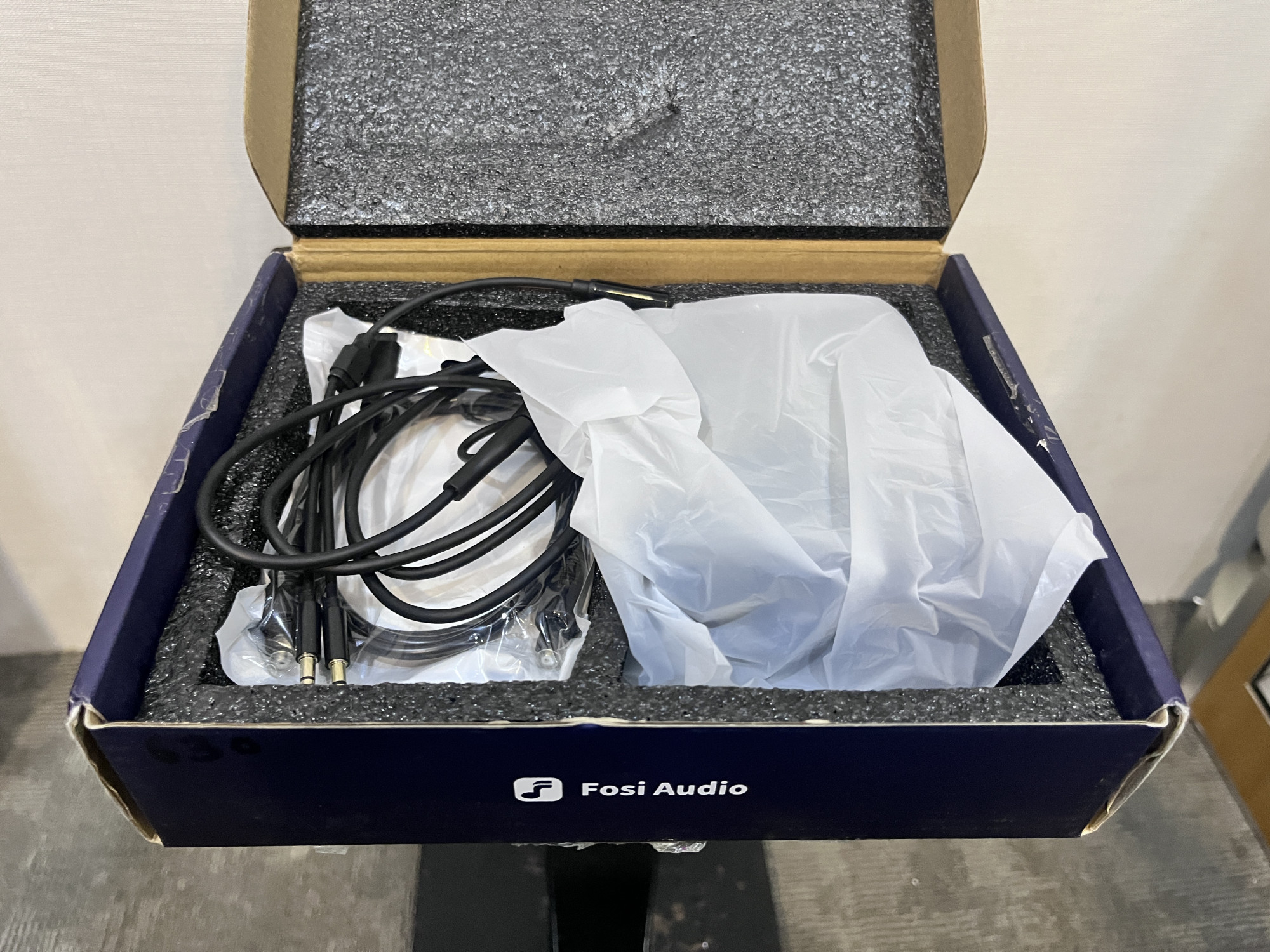

Included Accessories: Typically comes with a 2-in-1 USB Type-A/C to Type-C cable, a 3.5mm headphone splitter (for headsets with separate headphone and microphone jacks), and a user manual. Some packages may also include an optical cable.
