KORG DS-DAC 100

Description

The KORG DS-DAC 100 is a distinctive and stylish USB Digital-to-Analog Converter (DAC) and headphone amplifier, known for its focus on high-quality DSD (Direct Stream Digital) audio playback. Its unique, elliptical "spaceship" design sets it apart visually, while its internal components are geared towards delivering a clean and detailed sound, particularly with DSD audio sources.

The DS-DAC 100 supports native playback of 2.8224 MHz and 5.6448 MHz DSD files, leveraging KORG's expertise in DSD recording technology from their acclaimed MR series recorders. It also handles PCM audio formats up to 24-bit/192kHz. A key feature is its ability to perform real-time DSD conversion of PCM files using the included KORG AudioGate 3 software (or later versions). This utilizes the processing power of your computer to upsample PCM audio to DSD for playback through the DAC.

The hardware design emphasizes low jitter, employing asynchronous USB transmission where the DAC clocks the audio data from the computer. The D/A conversion is handled by a Cirrus Logic CS4398 chipset, a well-regarded component known for its performance. The unit is USB bus-powered, simplifying connectivity by eliminating the need for a separate power supply.

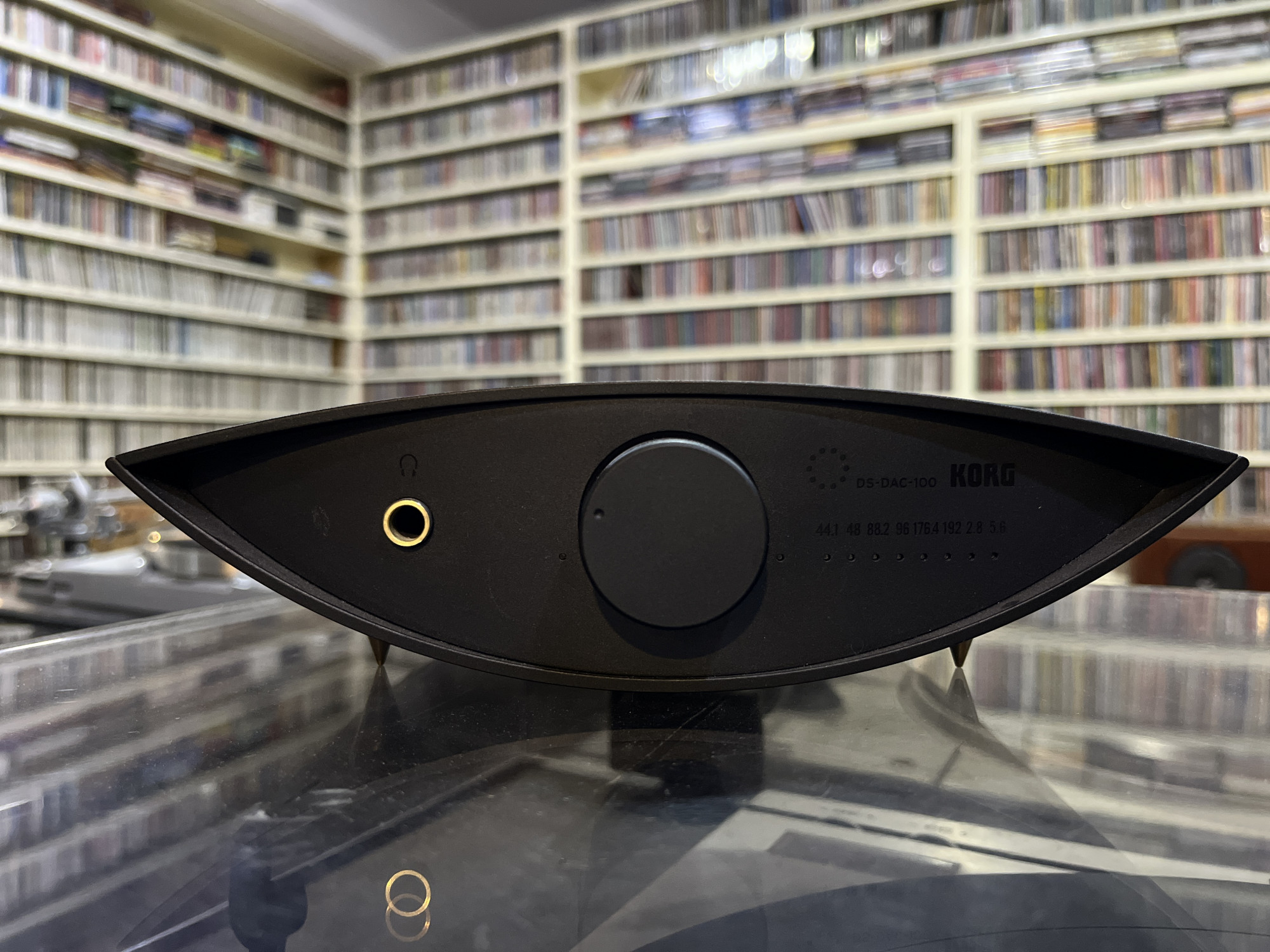

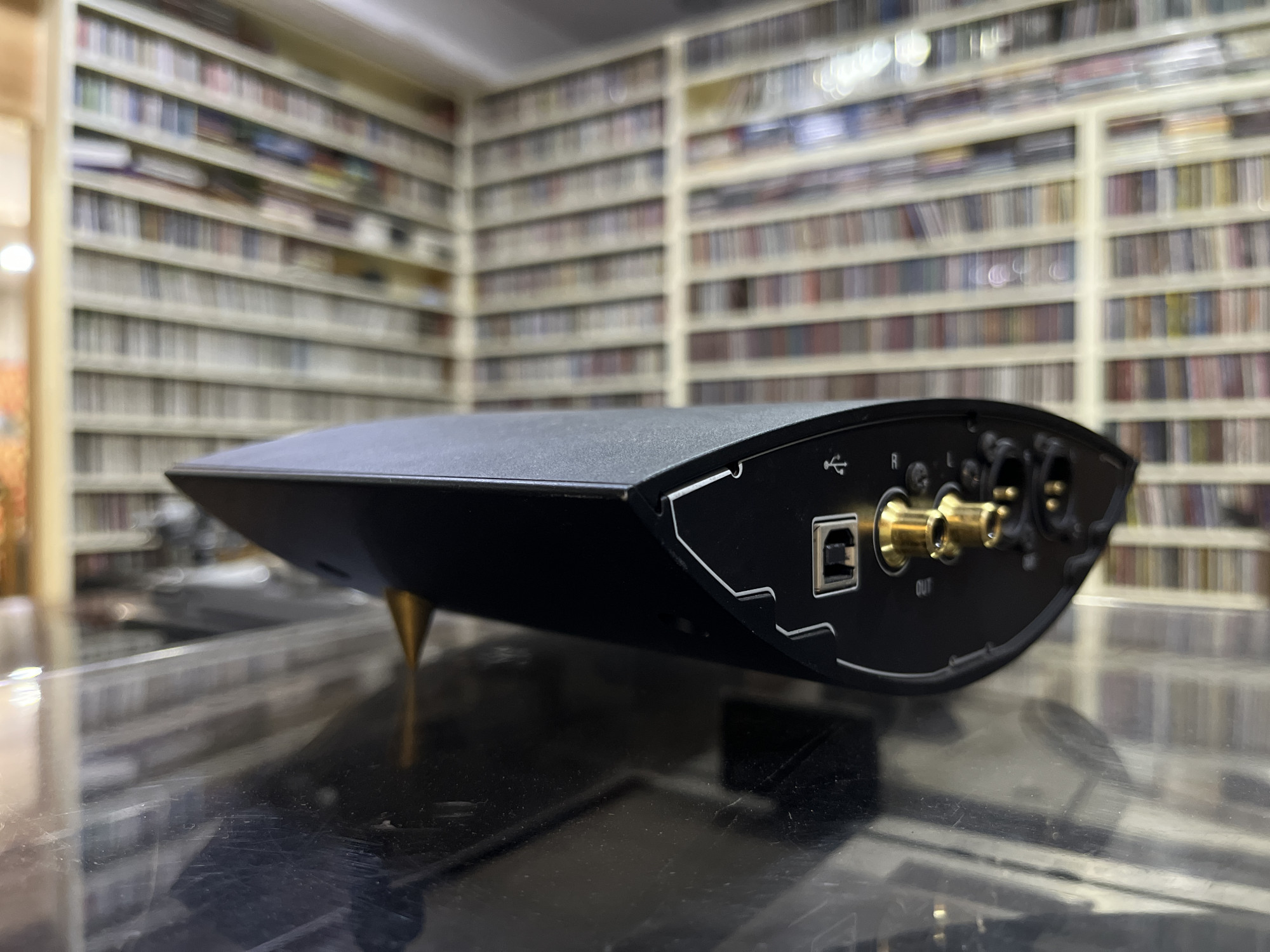

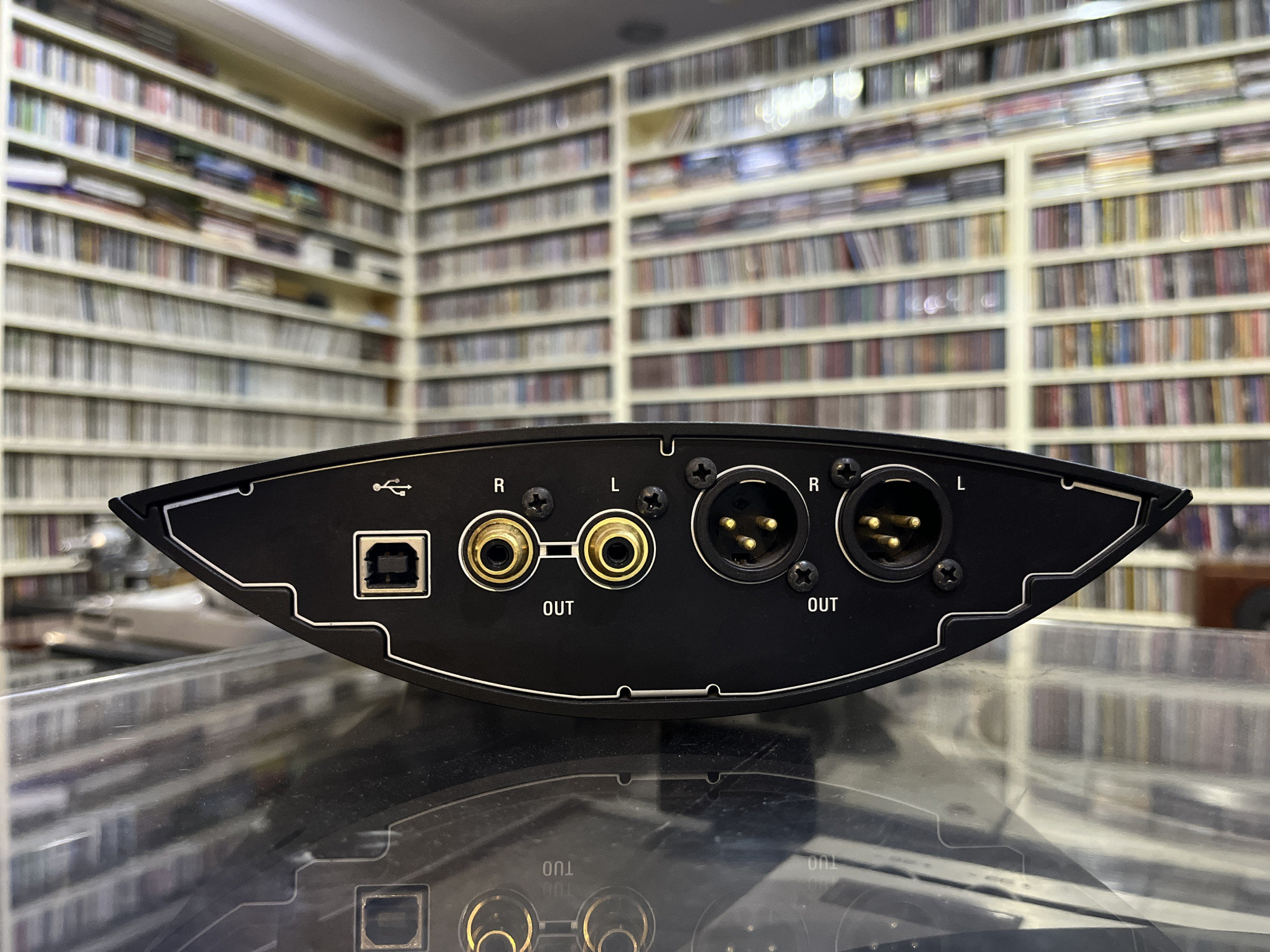

Connectivity options include a single USB input, unbalanced RCA line outputs, balanced XLR line outputs, and a front-mounted 1/4" headphone jack with a dedicated volume control. The front panel also features LED indicators for power and the sampling frequency of the incoming digital signal.

The KORG DS-DAC 100 is often praised for its smooth, detailed, and controlled sound, especially with DSD content. While some reviews note that its performance with standard PCM files might be matched or slightly बेहतरed by similarly priced rivals, its strength lies in its ability to deliver high-fidelity DSD playback and its unique design. The requirement of the AudioGate software for optimal DSD upsampling is a point to consider for users who prefer other playback software. Key Features:

• Native DSD Playback: Supports 2.8224 MHz and 5.6448 MHz DSD files.
• Real-time DSD Conversion: With KORG AudioGate software, PCM files can be converted to DSD for playback.
• High-Quality DAC Chip: Utilizes the Cirrus Logic CS4398 D/A converter.
• Asynchronous USB Transmission: Minimizes jitter for cleaner audio.
• Balanced XLR and Unbalanced RCA Outputs: Offers flexible connectivity to audio systems.
• Dedicated Headphone Amplifier: With a front-panel 1/4" stereo jack and volume control.

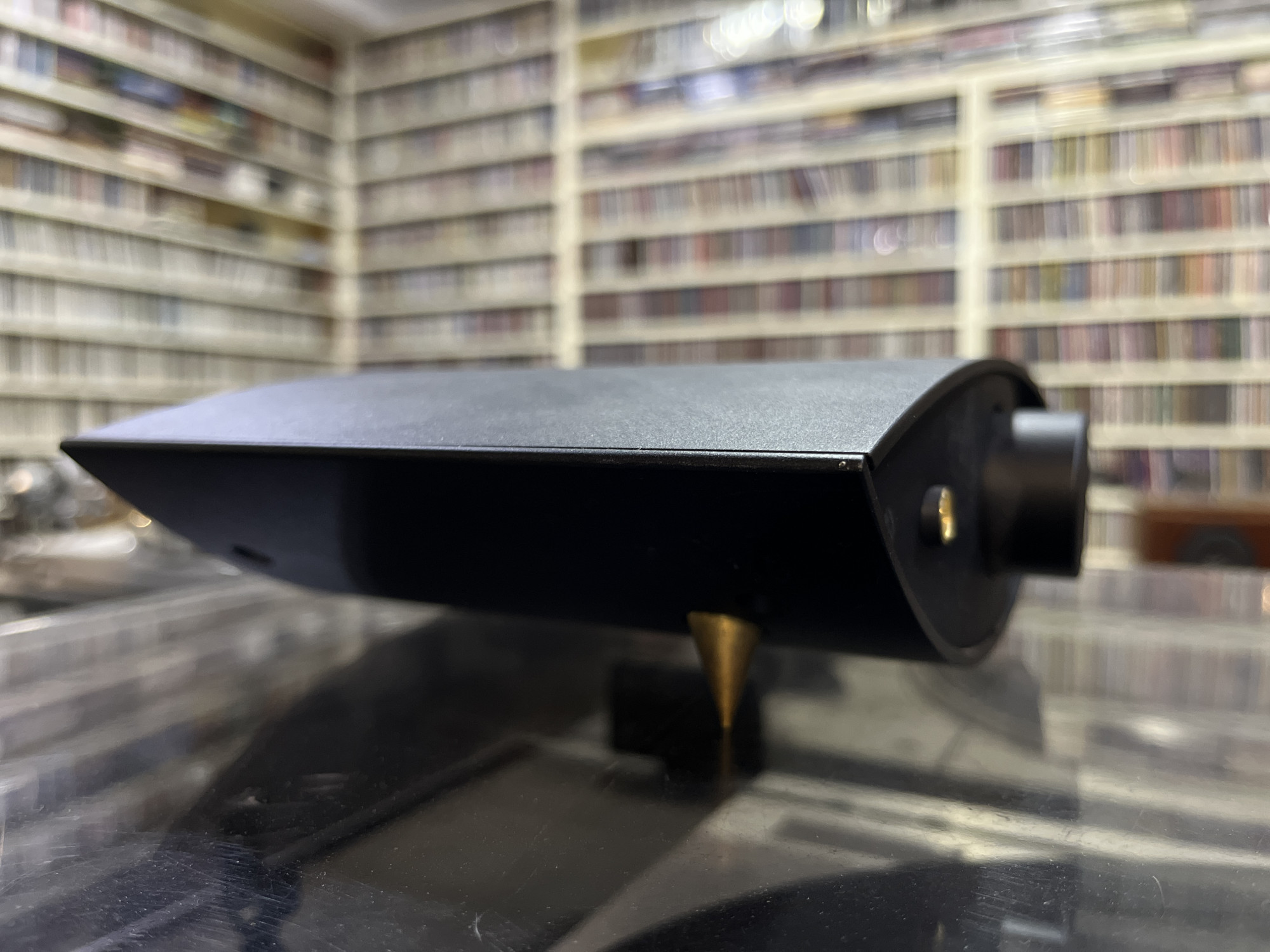

• Unique Design: Elegant and curvaceous black aluminum chassis with metal spiked feet.
• USB Bus Powered: No external power supply required.

Specifications:

• D/A Converter: Cirrus Logic CS4398
• Audio Interface Channels: 2
• Input Format (USB):
  • DSD: 2.8224 MHz, 5.6448 MHz (1-bit)
  • PCM: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16/24-bit)
• Host Interface: USB 2.0 (High Speed)
• Audio Driver: ASIO (DSD playback supported via ASIO 2.1 or later with DSD option), WDM, Core Audio
• Frequency Response: 10 Hz - 20 kHz ±1 dB (fs=44.1 kHz/48 kHz), 10 Hz - 40 kHz ±1 dB
• S/N Ratio: 105 dB (TYP.) 20 Hz - 20 kHz, IHF-A
• THD+N: 0.005% (TYP.) 20 Hz - 20 kHz
• Line Out Connectors: RCA pin Jack (unbalanced), XLR (balanced)
  • Load Impedance: More than 10 kΩ
  • Nominal Level: -6 dBV
  • Maximum Level: +6 dBV (0 dBFS 0 dB-SACD)

• Phones Connector: φ6.3 mm stereo phone jack
  • Load Impedance: More than 16 Ω
  • Maximum Level: 85 mW + 85 mW @ 32 Ω
• USB (Device) Connector: Type B
• Power: USB bus power (5V, Max: 500 mA)
• Power Consumption: Max: 2.5 W
• Dimensions (W x D x H): 207 x 160 x 60.0 mm (including protrusions)
• Weight: 862 g (1.90 lbs)
