Description
The TASCAM Porta 02 mkII Ministudio is a compact analog cassette-based multitrack recorder designed for musicians, songwriters and home recording applications. At its core is a 4-track, 4-channel cassette recorder operating at the industry-standard tape speed of 4.76 cm/s. The integrated mixer provides two MIC/LINE input channels, each with trim and input level control, while the four track channels provide individual level and pan controls. The Porta 02 mkII supports recording of up to two tracks simultaneously, making it possible to record a stereo source or two separate inputs at the same time before adding additional overdubs. The control surface includes dedicated RECORD, PLAY, REW, F FWD, STOP and PAUSE transport buttons. Four-stage LED meters provide visual monitoring of recording levels, while a headphone output with dedicated level control allows the user to monitor the recording. The rear panel of the photographed unit clearly shows the DC IN 12V socket and stereo RCA LINE OUT connections. The unit also has a dedicated headphone connection and a MONO switch. This particular example shows noticeable cosmetic wear, including scratches, scuffs and marks on the blue finish and some wear to the controls and cassette-door area.
Product Overview / Key Features
- TASCAM Porta 02 mkII
- 4-track, 4-channel cassette recorder
- Compact analog Portastudio
- Blue finish
- Standard compact cassette recording
- Industry-standard 4.76 cm/s tape speed
- Two MIC/LINE input channels
- Up to two-track simultaneous recording
- Four-channel mixer section
- Individual level controls
- Individual pan controls
- Input trim controls
- Four-stage LED level meters
- Headphone output
- Headphone level control
- Mono/stereo monitoring switch
- Stereo RCA LINE OUT
- RECORD / PLAY / REW / F FWD / STOP / PAUSE transport
- 12V DC power input
- Cassette compartment with transparent cover
- Designed for multitrack recording and overdubbing
These features are documented in TASCAM's product literature.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | TASCAM |
| Model | Porta 02 mkII |
| Type | 4-Track Portastudio / Cassette Multitrack Recorder |
| Recording Medium | Compact Cassette |
| Track Format | 4-track, 4-channel |
| Tape Speed | 4.76 cm/s / 1⅞ ips |
| Simultaneous Recording | Up to 2 tracks |
| Input Channels | 2 MIC/LINE inputs |
| Input Trim | Yes |
| Track Level Controls | Yes |
| Pan Controls | Yes |
| LED Meters | 4-stage |
| Headphone Output | Yes |
| Headphone Level Control | Yes |
| MONO Switch | Yes |
| Line Output | Stereo RCA |
| Power Input | 12V DC |
| Frequency Response | 50 Hz–12.5 kHz ±3 dB |
| Signal-to-Noise Ratio | 43 dB |
| Channel Separation | 40 dB at 1 kHz |
| Total Harmonic Distortion | 3.0% at 400 Hz, -10 dB |
| Wow & Flutter | 0.18% |
| Dimensions | Approx. 305 × 80 × 205 mm |
| Weight | Approx. 1.5 kg |
| Recommended Tape | CrO₂ / Type II cassette |
| Functional Status | Not Verified |
The dimensions, weight and core tape specifications are supported by TASCAM documentation; the detailed performance figures are also listed in the Porta 02 mkII technical literature.
Cosmetic Condition
Good Vintage / Used Condition
The unit displays moderate cosmetic wear consistent with age and previous use. Visible observations:
- Multiple scratches across the blue top panel
- Surface scuffs around the front edges
- Noticeable wear around some knobs
- Some discoloration / aging of the cream-colored controls
- Minor marks around the cassette compartment
- Scratches visible on the cassette cover
- Some wear around the transport-button area
- Most labels remain visible and readable
- All major knobs, sliders and buttons appear physically present
- Cassette door is present
- Main cabinet appears structurally intact
The photographs do not show obvious major cracks or missing major external components.
Condition Report
Exterior
Blue painted finish shows moderate scratches, scuffs and surface marks throughout.

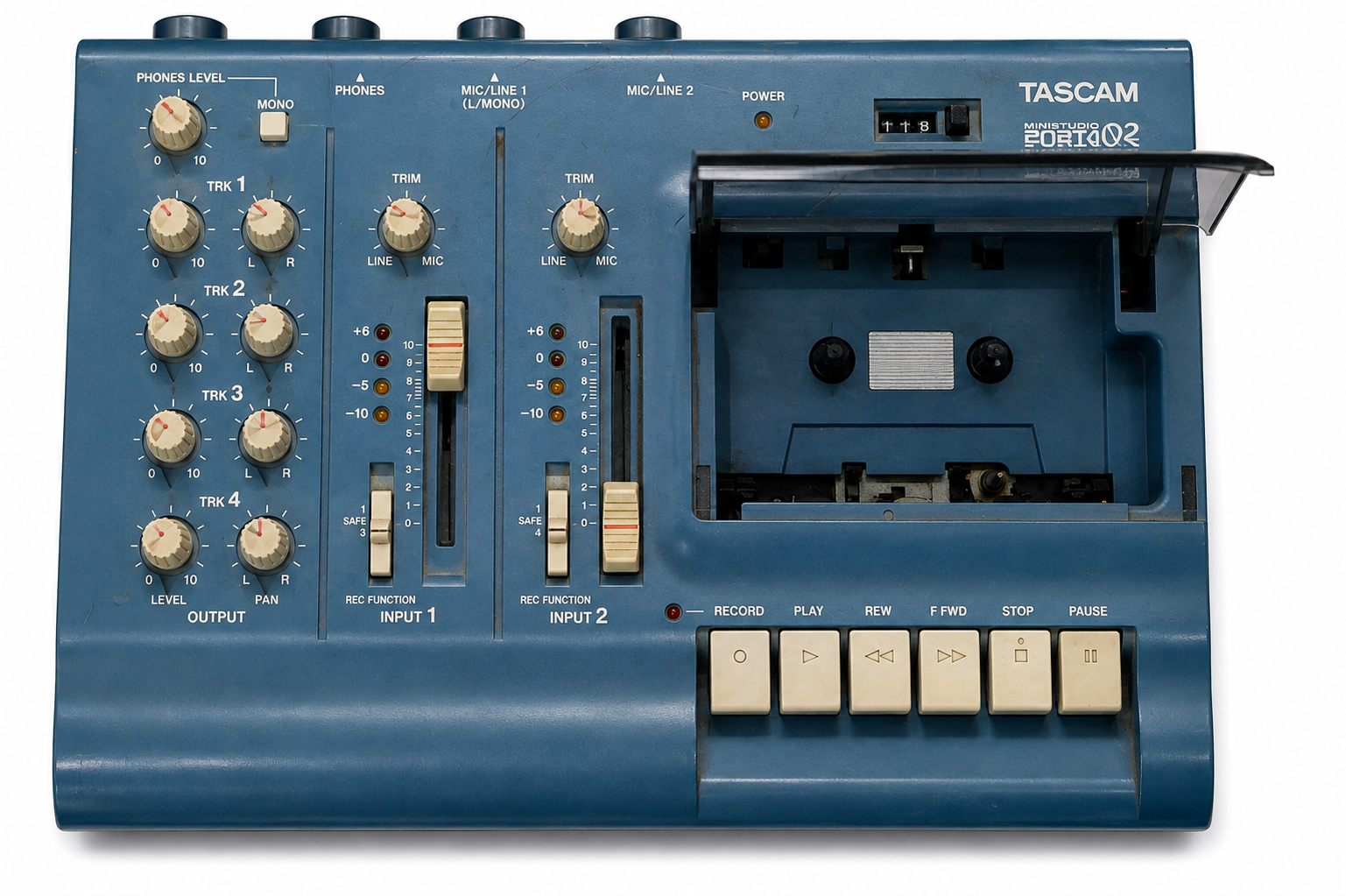

Front / Control Panel
The control panel is substantially complete. Track level and pan knobs, input controls, faders and transport buttons are present.
Cassette Mechanism
The cassette compartment is shown open. The visible tape transport components appear present, but actual transport operation has not been verified.
Cassette Door
The transparent cassette cover is present. It shows visible surface marks and scratches.
Controls
The REC, PLAY, REW, F FWD, STOP and PAUSE buttons are present. Level controls, pan controls, input trim controls and faders are also present.
LED Meters
The LED meter sections are physically present. Their illumination and operation have not been tested.
Outputs
The rear panel clearly shows stereo RCA LINE OUT connections. Operational status has not been verified.
Power
The unit is marked DC IN 12V. The original power supply/adapter is not visible in the photographs and should therefore be treated as Not Verified.
What's Included
Included / Visible
- TASCAM Porta 02 mkII Ministudio
- Built-in cassette recorder
- Integrated mixer/control section
- Cassette cover
- Integrated transport controls
